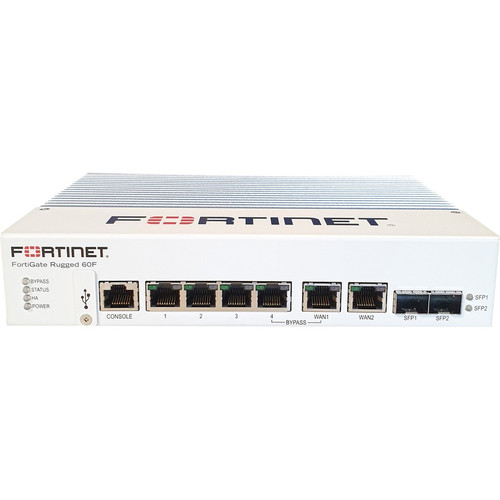

Fortinet FGR-60F-BDL-950-36 FortiGate Rugged 6-Port Gigabit Ethernet Firewall Appliance - 100 VPN - AES-256/SHA-256 - Desktop/DIN/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiGate Rugged FGR-60F integrates comprehensive security technologies to protect network infrastructure. It features Threat Protection, SSL Encrypted Traffic Protection, Application Control, and Malware Protection, providing layered defense against intrusions and malicious activities. Encryption is handled via AES (256-bit) and SHA-256 standards, safeguarding data integrity and confidentiality across the network.
Network connectivity is delivered through six 10/100/1000Base-T Gigabit Ethernet ports, ensuring high-speed data transfer and compatibility with existing network equipment. Two SFP (mini-GBIC) expansion slots allow for fiber optic connections, extending flexibility for diverse network topologies. A USB port is included for additional configuration or storage options, while full manageability enables integration into larger security frameworks.
Relevant factors for this section include Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate Rugged FGR-60F stands out with its ruggedized design and enterprise-level security features, making it ideal for industrial and remote deployments. Its compact size and multiple mounting options reduce installation complexity, while the high port density supports direct connectivity for multiple devices without additional switches.
Industrial Durability
Engineered for harsh environments, this appliance resists physical stress and operates reliably in temperature-variable settings, ensuring continuous network protection where standard hardware might fail.
- Desktop, DIN rail, and wall mountable
- Compact footprint: 1.68" H x 8.50" W x 6.50" D
Advanced Threat Protection
Incorporates multiple security layers including SSL inspection and application control to detect and block sophisticated attacks, reducing the risk of data breaches and network downtime.
- Threat Protection and Malware Protection
- SSL Encrypted Traffic Protection
Scalable Connectivity
With six Gigabit Ethernet ports and two SFP slots, the FGR-60F accommodates both copper and fiber connections, supporting network expansion and high-bandwidth applications seamlessly.
- 6x 10/100/1000Base-T ports
- 2x SFP (mini-GBIC) slots for fiber optics
Deployment / Use Cases
The FortiGate Rugged FGR-60F is tailored for edge-network security in scenarios where reliability and environmental resilience are critical. Its rugged construction and versatile mounting make it suitable for industrial plants, transportation hubs, and outdoor installations, providing consistent firewall protection without requiring climate-controlled enclosures.
In branch office deployments, this appliance secures remote sites with VPN support for up to 100 connections, enabling secure communication with headquarters. For small to medium businesses, it serves as a primary firewall, offering threat protection and network segmentation through its multiple ports. Educational institutions and healthcare facilities can leverage its application control features to manage network access and comply with regulatory requirements.
Physical Profile
The FortiGate Rugged FGR-60F features a compact, robust chassis measuring 1.68 inches in height, 8.50 inches in width, and 6.50 inches in depth, with an approximate weight of 3.85 pounds. Its design supports desktop placement, DIN rail mounting for industrial racks, and wall mounting, offering installation flexibility in space-constrained or vibration-prone settings. The small footprint minimizes rack space usage while maintaining full functionality, making it easy to integrate into existing infrastructure without major modifications.
- Width
- 8.50" (215.90 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1.68" (42.67 mm)
- Weight
- 3.85 lb (1746.33 g)
Highlights
- Industrial-grade rugged firewall appliance for harsh environments
- 6 Gigabit Ethernet ports (10/100/1000Base-T) for high-speed connectivity
- Supports up to 100 VPN connections for secure remote access
- Advanced security with Threat Protection, SSL inspection, and Malware Protection
- AES (256-bit) and SHA-256 encryption for data security
- 2 SFP (mini-GBIC) expansion slots for fiber optic networking
- Desktop, DIN rail, and wall mountable form factor
- Fully manageable with centralized control options
- 3-year 24x7 FortiCare and FortiGuard UTP support included
- Compact dimensions: 1.68" H x 8.50" W x 6.50" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FGR-60F-BDL-950-36 |
| Brand Name | Fortinet |
| Product Line | FortiGate Rugged |
| Product Model | FGR-60F |
| Product Name | FortiGate Rugged FGR-60F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Threat Protection,SSL Encrypted Traffic Protection,Application Control,Malware Protection |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 100 |
| Interfaces/Ports | |
| Total Number of Ports | 6 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Form Factor | Desktop,DIN Rail Mountable,Wall Mountable |
| Height | 1.68" (42.67 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 3.85 lb (1746.33 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 3 Year |
| Support/Service Type | 24x7 FortiCare and FortiGuard UTP |
FAQ
What are the key security features of the FortiGate Rugged FGR-60F?
The FortiGate Rugged FGR-60F includes Threat Protection, SSL Encrypted Traffic Protection, Application Control, and Malware Protection. These features work together to detect and block intrusions, inspect encrypted traffic, control application usage, and prevent malware infections, providing comprehensive network security for edge deployments.
How many VPN connections does this firewall appliance support?
This appliance supports up to 100 VPN connections, allowing secure remote access for multiple users or sites. It uses AES (256-bit) and SHA-256 encryption standards to ensure data confidentiality and integrity during VPN sessions, making it suitable for businesses with distributed networks.
What types of network ports are available on the FGR-60F?
The FGR-60F has six 10/100/1000Base-T Gigabit Ethernet ports for copper connections, providing high-speed network access. Additionally, it includes two SFP (mini-GBIC) expansion slots for fiber optic connections, offering flexibility to integrate with different network media and extend reach in industrial or long-distance setups.
Can the FortiGate Rugged FGR-60F be mounted in industrial settings?
Yes, the FGR-60F is designed for industrial environments with a form factor that supports desktop, DIN rail, and wall mounting. Its rugged construction ensures reliable operation in harsh conditions, and the compact size allows easy installation in control panels, racks, or tight spaces common in manufacturing or outdoor sites.
What warranty and support options come with this appliance?
The appliance includes a 1-year limited warranty and 3 years of 24x7 FortiCare and FortiGuard UTP support. This coverage provides technical assistance, firmware updates, and threat intelligence services, ensuring ongoing protection and maintenance for your network security infrastructure.
Is the FortiGate Rugged FGR-60F manageable for centralized network control?
Yes, the FGR-60F is fully manageable, allowing integration into Fortinet's security management platforms. This enables centralized configuration, monitoring, and policy enforcement across multiple devices, simplifying administration and enhancing visibility into network security events for IT teams.
