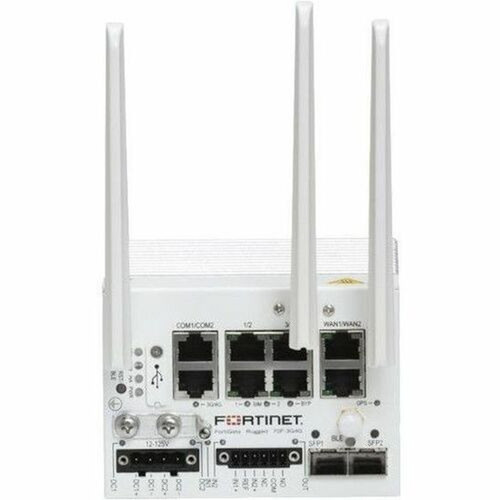

Fortinet FGR-70F-3G4G FortiGate Rugged Network Security Firewall Appliance - 8 Gbit/s Throughput - 5 Port Gigabit Ethernet - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiGate Rugged FGR-70F delivers enterprise-grade security performance with a firewall throughput of 8 Gbit/s and VPN throughput of 832 MB/s. It supports up to 100 concurrent VPN tunnels, secured with AES-256-bit, SHA-256, and SSL encryption standards. The security stack includes advanced threat protection, cyber assault protection, secure IPsec VPN connectivity, anti-phishing, SSL/TLS inspection, URL filtering, malware protection, and application control.
Connectivity is handled through 5 total ports, including 6 Gigabit Ethernet RJ-45 ports that operate on 10/100/1000Base-T and 1000Base-X standards. Two SFP expansion slots provide flexibility for fiber optic connections. The appliance includes a USB port and is fully manageable for centralized administration. Its ruggedized, fanless design ensures silent operation and resilience in harsh conditions, with environmental compliance meeting RoHS standards.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate Rugged FGR-70F combines robust security with industrial durability, offering distinct advantages for edge-network deployments. Its consolidated security approach reduces complexity while maintaining high performance in challenging environments.
Ruggedized Reliability
Designed for harsh conditions with a fanless, ruggedized build that ensures continuous operation in industrial settings where dust, vibration, and temperature extremes are common.
- Fanless design for silent operation
- DIN rail mounting for easy installation in control panels
- RoHS-compliant construction
Security-Driven Networking
Integrates networking and security through FortiOS, providing advanced threat protection, AI-powered FortiGuard Services, and built-in SD-WAN for optimized, secure connectivity.
- Consolidated security stack reduces management overhead
- SD-WAN supports reliable connectivity with cost efficiency
- Enterprise-grade protection at the network edge
Simplified Management
Enables faster deployment, comprehensive monitoring, security automation, and easier management through a unified interface, reducing operational complexity.
- Centralized management capabilities
- Faster deployment in distributed environments
- Comprehensive monitoring and reporting
Deployment / Use Cases
The FortiGate Rugged FGR-70F is specifically designed for edge-network security in environments where reliability and durability are paramount. Its compact form factor and industrial-grade construction make it suitable for deployment in locations where space is limited and environmental conditions are challenging.
Primary use cases include securing industrial control systems in manufacturing plants, protecting critical infrastructure in utility substations, providing network security for transportation systems like railways and airports, and enabling secure connectivity for remote branch offices in harsh climates. The appliance's SD-WAN capabilities support reliable connectivity with lower costs, while its VPN throughput ensures secure communication between distributed sites. The DIN rail mounting allows for easy integration into existing industrial control panels and racks.
Industrial Control Systems
Protects SCADA and ICS networks in manufacturing, energy, and water treatment facilities where equipment must withstand vibration, dust, and temperature variations.
Remote Branch Security
Secures connectivity for distributed offices in challenging environments, providing VPN termination, threat protection, and SD-WAN optimization in a single appliance.
Physical Profile
The FortiGate Rugged FGR-70F features a compact, industrial design with dimensions of 4.80 inches in height, 3.20 inches in width, and 4.40 inches in depth (121.92 mm x 81.28 mm x 111.76 mm). Weighing approximately 2.87 pounds (1301.81 grams), its lightweight yet rugged construction includes DIN rail mounting capabilities for secure installation in control panels and industrial racks. The fanless design not only enhances reliability by eliminating moving parts but also ensures silent operation in sensitive environments. The appliance's form factor is optimized for space-constrained installations while maintaining full security functionality.
- Width
- 3.20" (81.28 mm)
- Depth
- 4.40" (111.76 mm)
- Height
- 4.80" (121.92 mm)
- Weight
- 2.87 lb (1301.81 g)
Highlights
- Ruggedized appliance with fanless design for reliable operation in harsh industrial conditions
- Security-Driven Networking with FortiOS delivers converged networking and security functions
- Enterprise security with consolidated AI-powered FortiGuard Services for advanced threat protection
- Built-in SD-WAN supports reliable connectivity with lower costs and improved user experience
- 8 Gbit/s firewall throughput and 832 MB/s VPN throughput for high-performance security
- Supports up to 100 concurrent VPN tunnels with AES-256-bit encryption
- 5 total ports including 6 Gigabit Ethernet RJ-45 ports and 2 SFP expansion slots
- DIN rail mountable form factor for easy installation in industrial control panels
- Simplified management enables faster deployment, comprehensive monitoring, and security automation
- Environmental compliance with RoHS standards for reduced hazardous substances
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FGR-70F-3G4G |
| Brand Name | Fortinet |
| Product Line | FortiGate Rugged |
| Product Model | FGR-70F |
| Product Name | FortiGate Rugged FGR-70F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Advanced Threat Protection,Cyber Assault Protection,Secure IPsec VPN Connectivity,Anti-phishing,SSL Inspection,TLS Inspection,URL Filtering,Malware Protection,Application Control |
| Firewall Throughput | 8 Gbit/s |
| Encryption Standard | AES (256-bit),SHA-256,SSL |
| Number of VPN Supported | 100 |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Media & Performance | |
| VPN Throughput | 832 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 4.80" (121.92 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.40" (111.76 mm) |
| Weight (Approximate) | 2.87 lb (1301.81 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the firewall throughput of the FortiGate Rugged FGR-70F?
The FortiGate Rugged FGR-70F delivers a firewall throughput of 8 Gbit/s. This performance level enables the appliance to handle significant network traffic while applying advanced security policies, including threat protection, URL filtering, and application control, without creating bottlenecks in industrial or edge-network environments.
How many VPN connections does this appliance support?
This security appliance supports up to 100 concurrent VPN tunnels. It provides secure IPsec VPN connectivity with encryption standards including AES-256-bit, SHA-256, and SSL, delivering VPN throughput of 832 MB/s for reliable secure communications between distributed sites.
What type of ports are available on the FGR-70F?
The FortiGate Rugged FGR-70F features 5 total ports, including 6 Gigabit Ethernet RJ-45 ports that operate on 10/100/1000Base-T and 1000Base-X standards. Additionally, it includes 2 SFP expansion slots for fiber optic connections and a USB port for management or storage expansion.
Is this appliance suitable for industrial environments?
Yes, the FortiGate Rugged FGR-70F is specifically designed for industrial environments. Its ruggedized construction, fanless design, and DIN rail mounting capability make it suitable for harsh conditions with dust, vibration, and temperature variations commonly found in manufacturing, utilities, and transportation applications.
What security features are included with this appliance?
The appliance includes comprehensive security features such as advanced threat protection, cyber assault protection, secure IPsec VPN connectivity, anti-phishing, SSL inspection, TLS inspection, URL filtering, malware protection, and application control. These are delivered through FortiOS with AI-powered FortiGuard Services for ongoing threat intelligence updates.
How is the FortiGate Rugged FGR-70F mounted?
The FortiGate Rugged FGR-70F is designed for DIN rail mounting, allowing for secure installation in standard industrial control panels and racks. This mounting method provides stability in vibrating environments and facilitates integration with other industrial equipment while conserving space in compact installations.
