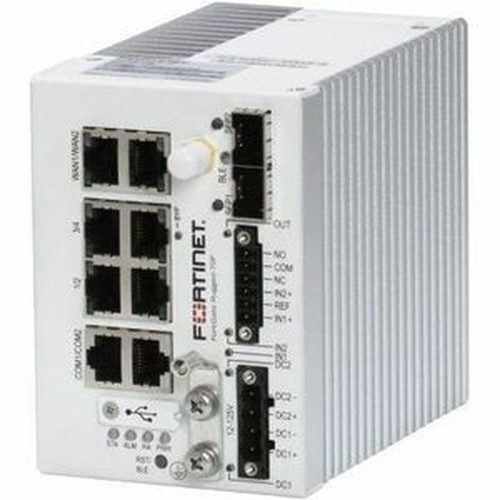

Fortinet FGR-70F FortiGate Rugged Network Security Firewall Appliance - 7 Port Gigabit Ethernet - 8 Gbit/s Throughput - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FGR-70F provides a firewall throughput of 8 Gbit/s and a VPN throughput of 832 MB/s, handling high-volume traffic with efficiency. It supports up to 100 concurrent VPN tunnels using AES-256 and SHA-256 encryption, ensuring secure remote access and site-to-site connections.
Connectivity includes 7 total ports: 6 Gigabit Ethernet RJ-45 ports and 1 USB port. Two SFP (mini-GBIC) expansion slots allow for fiber optic connections, offering flexibility for diverse network media. The device operates on standard 10/100/1000Base-T and 1000Base-X networks.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FortiGate Rugged FGR-70F combines enterprise-grade security with a ruggedized design, making it ideal for non-traditional IT environments. Its compact footprint and low power consumption reduce operational overhead while maintaining high performance.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Security Suite, Industrial-Grade Durability.
Comprehensive Security Suite
Includes advanced threat protection, anti-phishing, SSL/TLS inspection, URL filtering, malware protection, and application control to defend against modern cyber threats.
- Advanced Threat Protection
- SSL/TLS Inspection
- Application Control
Industrial-Grade Durability
Designed for DIN rail mounting, the appliance withstands vibrations, temperature variations, and harsh conditions common in industrial or outdoor settings.
Deployment / Use Cases
This firewall appliance is tailored for edge-network deployments where environmental resilience and security are critical. It serves as a secure gateway for sites that require reliable connectivity and protection without the need for a climate-controlled server room.
Typical use cases include securing manufacturing floors, utility substations, transportation hubs, and remote branch offices. The rugged design ensures continuous operation in locations exposed to dust, moisture, or extreme temperatures, while the high throughput supports real-time data from industrial IoT devices or surveillance systems.
Industrial Control Systems
Protects SCADA and PLC networks in manufacturing or energy sectors with dedicated security policies and VPN connectivity for remote management.
Branch Office Security
Provides centralized security management for remote offices, ensuring consistent policy enforcement and secure access to corporate resources.
Physical Profile
The FGR-70F features a compact, DIN rail mountable form factor measuring 4.80" (121.92 mm) in height, 3.20" (81.28 mm) in width, and 4.40" (111.76 mm) in depth. It weighs approximately 2.87 lb (1301.81 g), making it easy to install in standard industrial racks or enclosures. The ruggedized casing protects internal components from physical shocks and environmental stressors.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.80" (121.92 mm), 3.20" (81.28 mm), 4.40" (111.76 mm), 2.87 lb (1301.81 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.20" (81.28 mm)
- Depth
- 4.40" (111.76 mm)
- Height
- 4.80" (121.92 mm)
- Weight
- 2.87 lb (1301.81 g)
Highlights
- 8 Gbit/s firewall throughput for high-performance network security
- Supports 100 concurrent VPN tunnels with AES-256 encryption
- 7 total ports: 6 Gigabit Ethernet RJ-45 and 1 USB
- Two SFP slots for fiber optic connectivity options
- DIN rail mountable design for industrial environments
- Low power consumption at 18 watts
- Comprehensive security features including threat protection and application control
- Manageable via Fortinet's security fabric for centralized administration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FGR-70F |
| Brand Name | Fortinet |
| Product Line | FortiGate Rugged |
| Product Model | FGR-70F |
| Product Name | FortiGate Rugged FGR-70F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Advanced Threat Protection,Cyber Assault Protection,Secure IPsec VPN Connectivity,Anti-phishing,SSL Inspection,TLS Inspection,URL Filtering,Malware Protection,Application Control |
| Firewall Throughput | 8 Gbit/s |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 100 |
| Interfaces/Ports | |
| Total Number of Ports | 7 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Media & Performance | |
| VPN Throughput | 832 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Consumption | 18 W |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 4.80" (121.92 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.40" (111.76 mm) |
| Weight (Approximate) | 2.87 lb (1301.81 g) |
User Manual
FAQ
What is the firewall throughput of the FortiGate Rugged FGR-70F?
The FortiGate Rugged FGR-70F delivers a firewall throughput of 8 Gbit/s. This performance level allows it to handle high volumes of network traffic while applying security policies, making it suitable for busy edge networks or sites with demanding data flows.
How many VPN connections does this appliance support?
This appliance supports up to 100 concurrent VPN connections. It uses AES-256 and SHA-256 encryption standards to secure these tunnels, providing robust protection for remote access and site-to-site communications in distributed environments.
What types of ports are available on the FGR-70F?
The FGR-70F includes 7 total ports: 6 Gigabit Ethernet RJ-45 ports for copper connections and 1 USB port. Additionally, it has two SFP (mini-GBIC) expansion slots for fiber optic transceivers, offering flexibility to adapt to different network media and distances.
Is the FortiGate Rugged FGR-70F manageable?
Yes, the FGR-70F is fully manageable. It integrates with Fortinet's security fabric, allowing centralized configuration, monitoring, and policy management. This enables consistent security enforcement across multiple devices and simplifies administration for IT teams.
What is the form factor and mounting option for this appliance?
The appliance features a DIN rail mountable form factor, designed for installation in industrial racks or enclosures. Its compact dimensions (4.80" H x 3.20" W x 4.40" D) and rugged construction make it ideal for harsh environments where standard rack mounting may not be feasible.
What security features does the FGR-70F include?
The FGR-70F includes a comprehensive set of security features such as advanced threat protection, anti-phishing, SSL/TLS inspection, URL filtering, malware protection, and application control. These capabilities work together to defend against a wide range of cyber threats and ensure secure network operations.
