Fortinet FGR60F3G4GBDL-950-12 FortiGate Rugged Industrial Firewall Appliance - 6x Gigabit Ports - 2x SFP Slots - 100 VPNs - Desktop/DIN Rail/Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This FortiGate Rugged appliance implements a comprehensive security stack designed to inspect and control network traffic at line rate. The firewall protection suite covers threat protection, SSL encrypted traffic inspection, application-aware filtering, malware blocking, antivirus scanning, botnet detection, outbreak prevention, cloud sandboxing, anti-spam, and integrated web filtering. Encryption is handled via AES-256 and SHA-256 standards, ensuring data confidentiality and integrity for VPN and management traffic.
The hardware platform offers six 10/100/1000BASE-T RJ-45 ports and two SFP (mini-GBIC) slots for Gigabit fiber connectivity. All ports support auto-negotiation and auto-MDI/MDIX. A USB port is available for local storage or console access. The unit is fully manageable via Fortinet's web-based GUI, CLI, or centralized management tools, allowing for granular policy configuration, real-time monitoring, and automated threat updates through the FortiGuard subscription service.
Relevant factors for this section include Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate Rugged FGR-60F-3G4G combines industrial durability with advanced security features, making it an ideal choice for organizations that need reliable perimeter defense in non-traditional IT spaces. Its compact, fanless design and multiple mounting options allow deployment in tight or harsh environments where standard rack-mounted firewalls would not fit or survive.
Ruggedized for Industrial Use
Built to withstand vibrations, wide temperature ranges, and electrical noise commonly found in manufacturing, utility, or transportation settings. The desktop, DIN rail, and wall-mount flexibility simplifies installation in control panels, cabinets, or exposed locations.
- Fanless operation for reliability
- Compact footprint: 8.5" W x 6.5" D x 1.68" H
- Weight: 3.85 lb
Unified Threat Protection
Integrates multiple security functions—firewalling, intrusion prevention, antivirus, web filtering, and application control—into a single appliance. This consolidation reduces complexity and improves visibility across network segments, with updates delivered via FortiGuard subscriptions.
- SSL inspection for encrypted traffic
- Cloud sandboxing for unknown threats
- Botnet and outbreak prevention
Deployment / Use Cases
This appliance is purpose-built for securing network edges in industrial, operational technology (OT), and distributed enterprise scenarios. It serves as a dedicated firewall and VPN gateway for sites that require robust security but lack dedicated server rooms or climate-controlled racks.
Typical deployments include manufacturing plants where it protects PLCs and SCADA systems, remote branch offices that need secure connectivity back to headquarters, retail locations requiring PCI-compliant network segmentation, and utility substations that must isolate critical infrastructure from corporate networks. The DIN rail mounting option makes it particularly suitable for integration into industrial control panels alongside switches, routers, and other automation equipment.
Industrial Control Systems (ICS) Security
Deploy as a perimeter firewall for OT networks, enforcing segmentation between IT and operational systems. The rugged design ensures continuous operation in environments with electrical interference, dust, or temperature fluctuations.
Remote Site and Branch Office Connectivity
Use as a VPN concentrator for small to medium sites, establishing encrypted tunnels over broadband or MPLS links. The six Gigabit ports allow for separate WAN, LAN, and DMZ segments without additional switches.
Physical Profile

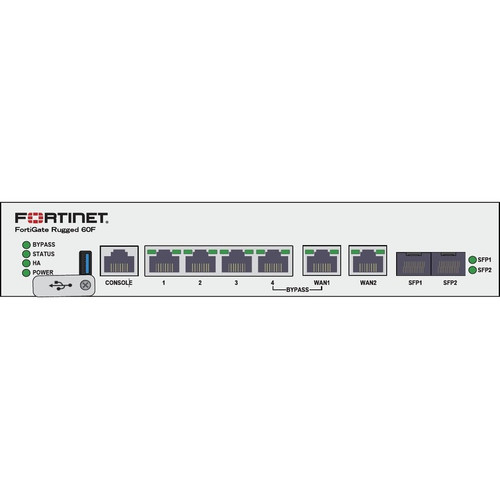

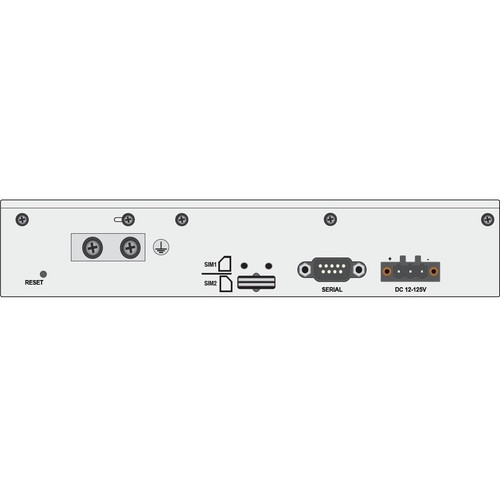

The appliance measures 8.50 inches wide, 6.50 inches deep, and 1.68 inches high (215.9 mm x 165.1 mm x 42.67 mm), with an approximate weight of 3.85 pounds (1746 g). Its low-profile, desktop-friendly form factor is complemented by keyhole slots for wall mounting and standard DIN rail clips for industrial panel installation. The all-metal chassis provides durability and heat dissipation without active cooling, making it silent and suitable for noise-sensitive environments. The front panel includes status LEDs for power, system, and port activity, while all connectors are located on the rear for clean cable management.
- Width
- 8.50" (215.90 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1.68" (42.67 mm)
- Weight
- 3.85 lb (1746.33 g)
Highlights
- Rugged industrial firewall appliance built for harsh environments outside wiring closets
- Six Gigabit Ethernet ports and two SFP slots for flexible copper and fiber connectivity
- Supports up to 100 concurrent VPN tunnels with AES-256 and SHA-256 encryption
- Comprehensive threat protection suite includes malware, antivirus, botnet detection, and SSL inspection
- Desktop, DIN rail, or wall mountable with a compact, fanless metal chassis
- Manageable via Fortinet web GUI, CLI, or centralized management tools
- Includes one-year 24x7 FortiCare and FortiGuard Unified Threat Protection support
- Ideal for securing industrial control systems, remote branches, and distributed sites
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FGR-60F-3G4G-BDL-950-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate Rugged |
| Product Model | FGR-60F-3G4G |
| Product Name | FortiGate Rugged FGR-60F-3G4G Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Threat Protection,SSL Encrypted Traffic Protection,Application Control,Malware Protection,Antivirus,Botnet Detection,Outbreak Prevention,Cloud Sandboxing,Anti-spam,Integrated Web Filtering |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 100 |
| Interfaces/Ports | |
| Total Number of Ports | 6 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Form Factor | Desktop,DIN Rail Mountable,Wall Mountable |
| Height | 1.68" (42.67 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 3.85 lb (1746.33 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 1 Year |
| Support/Service Type | 24x7 Forticare and Fortiguard Unified Threat Protection |
FAQ
What are the mounting options for this FortiGate Rugged appliance?
The appliance supports three mounting configurations: desktop placement, DIN rail attachment using included clips, and wall mounting via keyhole slots on the chassis. This flexibility allows installation in industrial control panels, network cabinets, or directly on walls in locations where rack space is unavailable. The compact, low-profile design fits easily into tight spaces common in manufacturing or utility environments.
How many VPN tunnels does this firewall support?
This FortiGate Rugged model supports up to 100 concurrent VPN tunnels. These can be used for site-to-site IPsec or SSL VPN connections, remote access for mobile users, or hub-and-spoke deployments. VPN traffic is secured with AES-256 encryption and SHA-256 hashing, ensuring confidentiality and integrity for data traversing untrusted networks like the internet.
What security features are included in the threat protection suite?
The integrated security suite includes threat protection, SSL encrypted traffic inspection, application control, malware protection, antivirus scanning, botnet detection, outbreak prevention, cloud sandboxing, anti-spam, and integrated web filtering. These functions work together to inspect both clear-text and encrypted traffic, block known and emerging threats, enforce application usage policies, and prevent data exfiltration. Updates are delivered via FortiGuard subscriptions.
Can this appliance be used in industrial environments with high electrical noise?
Yes, the FortiGate Rugged series is designed specifically for industrial and harsh environments. It features a fanless, ruggedized metal chassis that resists vibrations, wide temperature fluctuations, and electrical interference. The components are selected for reliability in settings like factory floors, substations, or transportation hubs where standard IT gear might fail. Its DIN rail mounting option integrates seamlessly into industrial control panels.
What management options are available for this firewall?
The appliance is fully manageable through Fortinet's web-based graphical interface, command-line interface (CLI), and centralized management platforms like FortiManager. It supports role-based administration, real-time monitoring, logging to FortiAnalyzer or syslog servers, and automated policy updates. The included one-year FortiCare subscription provides 24x7 technical support, while FortiGuard delivers continuous threat intelligence and signature updates.
How many SFP slots does the appliance have, and what are they used for?
There are two SFP (mini-GBIC) slots on the appliance, allowing for fiber-optic Gigabit Ethernet connections. These slots accept standard SFP transceivers for 1000BASE-SX, LX, or other fiber standards, enabling uplinks to fiber backbones, connections over longer distances, or links in electrically noisy environments where copper Ethernet might be unreliable. The slots complement the six built-in RJ-45 copper ports for flexible network design.
