Fortinet FGR70F3G4GBDL-809-12 FGR-70F-3G4G Rugged Network Security Appliance - 8 Gbps Firewall - 4x RJ-45 + 2x SFP - 4G LTE - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This appliance integrates Fortinet's purpose-built security processors and AI-driven threat intelligence to inspect traffic at line rate. The system supports a comprehensive suite of security services including intrusion prevention, antivirus, anti-malware, botnet detection, ransomware protection, and zero-day threat prevention. Encryption standards include AES-256, SHA-256, TLS 1.3, and SSL for secure data transmission.
Network connectivity includes four Gigabit Ethernet RJ-45 ports (1000Base-T/1000Base-X) and two SFP slots for fiber or copper uplinks. Cellular connectivity via 4G LTE, HSPA+, and UMTS provides WAN redundancy or primary connectivity in locations without wired infrastructure. The device supports up to 100 IPsec VPN tunnels with 832 MB/s VPN throughput for secure site-to-site and remote access connections.
Relevant factors for this section include Functionality, Firewall Protection Supported, Firewall Throughput, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Industrial Rugged Design, Integrated Cellular Connectivity, Comprehensive Security Suite.
Industrial Rugged Design
DIN rail mountable form factor with compact dimensions (4.40" H × 3.20" W × 4.80" D) and rugged construction for deployment in harsh environments including manufacturing floors, transportation systems, and outdoor enclosures.
Integrated Cellular Connectivity
Built-in 4G LTE modem with dual SIM slots (active/passive) and external antenna connections provides primary or failover WAN connectivity without additional hardware.
Comprehensive Security Suite
Unified threat protection combining firewall, IPS, antivirus, application control, web filtering, and advanced threat prevention in a single appliance with centralized management through FortiManager.
Deployment / Use Cases
The FortiGate Rugged FGR-70F-3G4G is purpose-built for edge network deployments where environmental conditions, space limitations, or connectivity challenges exist. Its compact, rugged design and comprehensive security features make it ideal for securing operational technology (OT) networks, industrial control systems (ICS), and distributed enterprise locations.
Common deployment scenarios include manufacturing plants requiring network segmentation between IT and OT networks, transportation systems needing secure connectivity across remote stations, utility companies securing substation communications, and retail branches requiring reliable connectivity with integrated security. The cellular capability enables deployments in temporary sites, mobile units, or locations without traditional broadband infrastructure.
Industrial Control Systems
Secure SCADA and PLC networks with deep packet inspection, protocol validation, and segmentation between operational and corporate networks.
Branch Office Connectivity
Provide secure internet access, site-to-site VPN connectivity, and unified threat protection for small to medium branch offices with limited IT staff.
Physical Profile
The appliance features a compact, industrial design measuring 4.40 inches in height, 3.20 inches in width, and 4.80 inches in depth (111.76 × 81.28 × 121.92 mm). With a weight of approximately 2.87 pounds (1301.81 g), the unit is lightweight yet durable for DIN rail mounting in control panels, server racks, or enclosure installations.

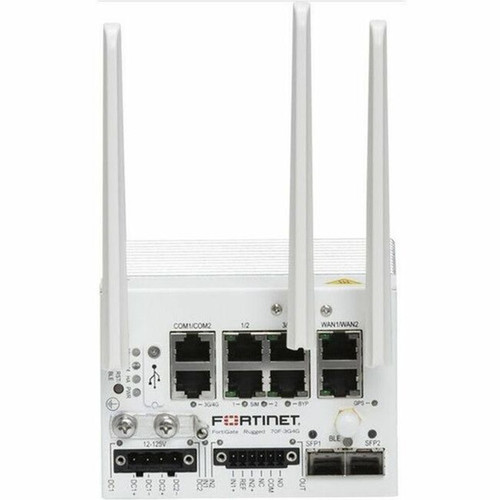

Dual power inputs provide redundancy for critical deployments, while the RoHS-compliant construction meets environmental standards. External antenna connections include two SMA WWAN antenna ports and one SMA GPS antenna port for optimal cellular and positioning signal reception in challenging environments.
- Width
- 3.20" (81.28 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 4.40" (111.76 mm)
- Weight
- 2.87 lb (1301.81 g)
What's in the Box
The package includes the complete FortiGate Rugged FGR-70F-3G4G network security appliance ready for deployment with all necessary hardware components.
Highlights
- 8 Gbps firewall throughput for high-performance network security
- 4 x Gigabit Ethernet RJ-45 ports plus 2 x SFP slots for flexible connectivity
- Integrated 4G LTE cellular modem with dual SIM slots for WAN redundancy
- AI-powered threat prevention with zero-day protection and ransomware defense
- DIN rail mountable rugged design for industrial environments
- Supports up to 1 million concurrent sessions and 100 IPsec VPN tunnels
- Comprehensive security suite including IPS, antivirus, and web filtering
- Dual power inputs for deployment redundancy in critical applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FGR-70F-3G4G-BDL-809-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate Rugged |
| Product Series | 70F |
| Product Model | FGR-70F-3G4G |
| Product Name | FortiGate Rugged FGR-70F-3G4G Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Functionality | Intrusion Prevention |
| Firewall Protection Supported | Threat Protection,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,Malware Protection,Network Protection,Operational Technology (OT) Security,Deep Packet Inspection (DPI),Ransomware Protection,Secure IPsec VPN Connectivity,SSL Inspection,URL Filtering,Vulnerability Assessment,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,TLS Inspection,Malicious Source IP Address Blocking |
| Firewall Throughput | 8 Gbit/s |
| Encryption Standard | AES (256-bit),SHA-256,TLS 1.3,SSL |
| Number of VPN Supported | 100 |
| Data Link Protocols | HTTP,HTTPS |
| Connectivity Technology | Wired/Wireless |
| Number of Concurrent Sessions (Max) | 1000000 |
| AI-powered | Yes |
| AI Features | Enterprise Security,Threat Prevention |
| Interfaces/Ports | |
| Total Number of Ports | 6 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Media & Performance | |
| VPN Throughput | 832 MB/s |
| IPS Throughput | 121.88 MB/s |
| Network & Communication | |
| Cellular Data Connectivity Technology | HSPA+,LTE,UMTS |
| Cellular Generation | 4G |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Consumption | 19.90 W |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 4.40" (111.76 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2.87 lb (1301.81 g) |
| Miscellaneous | |
| Package Contents | FortiGate Rugged FGR-70F-3G4G Network Security/Firewall Appliance 2 x SIM slots - Active/Passive 2 x External (SMA WWAN Antennae) Passive GPS 1x External SMA GPS Antenna) Dual Power Inputs |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 1 Year |
| Support/Service Type | FortiCare Premium and FortiGuard Enterprise Protection |
User Manual
FAQ
What is the firewall throughput of the FortiGate Rugged FGR-70F-3G4G?
The FortiGate Rugged FGR-70F-3G4G delivers 8 Gbit/s firewall throughput, enabling it to handle substantial network traffic while applying advanced security policies. This performance level supports demanding edge deployments where multiple security services like intrusion prevention, antivirus scanning, and deep packet inspection operate simultaneously without creating bottlenecks.
How many network ports does this security appliance include?
This appliance includes four Gigabit Ethernet RJ-45 ports for copper network connections and two SFP slots for fiber or additional copper uplinks. The total of six ports provides flexible connectivity options for LAN segmentation, WAN connections, and network expansion while maintaining the compact form factor suitable for space-constrained industrial installations.
Does the FGR-70F-3G4G support cellular connectivity?
Yes, the appliance features integrated 4G LTE cellular connectivity with support for HSPA+ and UMTS networks. It includes dual SIM slots operating in active/passive configuration for carrier redundancy and external SMA antenna connections for optimal signal reception. This cellular capability provides primary or backup WAN connectivity in locations without traditional broadband infrastructure.
What mounting options are available for this rugged firewall?
The FortiGate Rugged FGR-70F-3G4G is designed for DIN rail mounting, making it ideal for installation in industrial control panels, server racks, and equipment enclosures. The compact dimensions (4.40" H × 3.20" W × 4.80" D) and lightweight design (2.87 lb) allow flexible deployment in space-constrained environments common in manufacturing, transportation, and utility applications.
What security features are included with this appliance?
The appliance includes Fortinet's comprehensive security suite featuring AI-powered threat prevention, intrusion prevention system (IPS), antivirus/anti-malware, application control, web filtering, botnet detection, ransomware protection, and zero-day threat prevention. It supports advanced encryption standards including AES-256 and TLS 1.3, along with Secure IPsec VPN connectivity for up to 100 tunnels with 832 MB/s throughput.
What is included in the warranty and support package?
The FortiGate Rugged FGR-70F-3G4G comes with a 1-year limited warranty and includes 1 year of FortiCare Premium support with FortiGuard Enterprise Protection services. This support package provides access to firmware updates, threat intelligence feeds, technical assistance, and security service subscriptions to maintain optimal protection throughout the warranty period.
