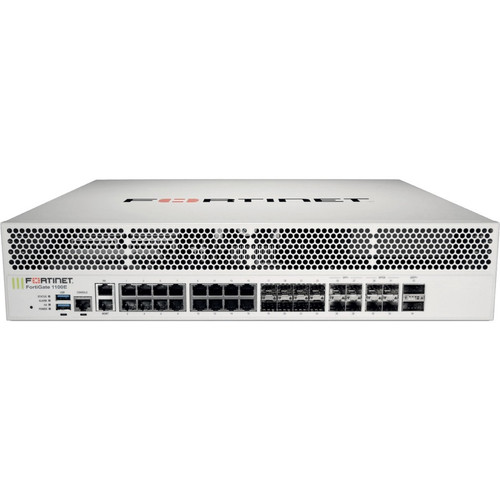

Fortinet FG-1100E-LENC FortiGate FG-1100E Network Security Firewall Appliance - 18 Port - 80 Gbps Throughput - 40GbE - 2U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-1100E leverages Fortinet's security processing architecture to deliver 80 Gbps firewall throughput and 6 GB/s VPN throughput, handling encrypted traffic with AES-256 and SHA-256 encryption standards. The appliance supports SSL encrypted traffic inspection and secure IPsec VPN connectivity for distributed network environments.
Network connectivity is provided through 18 total ports with 18 RJ-45 network ports, plus 18 expansion slots supporting SFP+, SFP28, QSFP+, and SFP transceivers. Eight dedicated SFP slots offer flexibility for fiber uplinks. The device includes USB connectivity and operates on both 50 Hz and 60 Hz power frequencies.
This section brings together practical product details such as Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FortiGate FG-1100E provides enterprise-grade security consolidation with performance headroom for growing networks. Its 80 Gbps throughput capacity ensures minimal latency during peak traffic while maintaining comprehensive threat inspection across all network layers.
Unified Threat Protection
Combines multiple security functions including threat protection, malware protection, advanced threat intelligence, intrusion prevention, antivirus, web filtering, anti-spam, application control, and virus protection in a single appliance.
- Deep inspection firewall
- SSL encrypted traffic protection
- Integrated web filtering
High-Density Connectivity
Offers 18 network ports with support for multiple Ethernet standards and 18 expansion slots for flexible network architecture design and future scalability.
- 18 RJ-45 ports
- 8 SFP slots
- 40GbE capable
Enterprise VPN Capacity
Supports up to 10,000 VPN tunnels with 6 GB/s VPN throughput, enabling secure connectivity for large distributed organizations and remote workforce scenarios.
- IPsec VPN connectivity
- High tunnel density
- Encrypted traffic optimization
Deployment / Use Cases
The FortiGate FG-1100E is optimized for enterprise edge security, data center perimeter protection, and large branch office deployments requiring high throughput and extensive VPN capacity. Its 2U rack-mount form factor integrates seamlessly into standard data center infrastructure.
Ideal use cases include securing internet gateways for medium to large enterprises, protecting data center ingress/egress points, and establishing secure VPN hubs for distributed organizations. The appliance's 80 Gbps throughput makes it suitable for environments with heavy encrypted traffic, multiple security inspection layers, or compliance-driven security requirements.
Enterprise Edge Security
Deploy as the primary security gateway at network perimeters where high throughput and comprehensive threat inspection are critical for protecting internal resources from external threats.
Data Center Protection
Secure data center ingress points with deep packet inspection capabilities while maintaining the performance needed for server-to-server and east-west traffic flows.
Physical Profile
The FG-1100E features a standard 2U rack-mountable chassis measuring 3.50 inches in height, 17.44 inches in width, and 17.62 inches in depth. With rail-mount compatibility, the appliance installs securely in standard 19-inch racks. The unit weighs approximately 24.90 pounds, making it manageable for data center deployment while providing substantial cooling and power infrastructure for continuous operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.44" (442.98 mm), 17.62" (447.55 mm), 24.90 lb (11294.45 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.44" (442.98 mm)
- Depth
- 17.62" (447.55 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 24.90 lb (11294.45 g)
What's in the Box
The FortiGate FG-1100E ships complete with essential components for immediate deployment in network security environments.
Highlights
- 80 Gbps firewall throughput for high-performance security inspection
- Supports up to 10,000 VPN tunnels with 6 GB/s VPN throughput
- 18 total network ports with 18 RJ-45 connections
- 40 Gigabit Ethernet technology supporting multiple network standards
- 18 expansion slots with 8 dedicated SFP slots for fiber connectivity
- 2U rack-mountable form factor with rail-mount compatibility
- Comprehensive threat protection including deep inspection firewall and intrusion prevention
- AES-256 and SHA-256 encryption for secure data transmission
- Unified security functions: antivirus, web filtering, anti-spam, application control
- Manageable through Fortinet's security management ecosystem
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-1100E-LENC |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 1100E |
| Product Model | FG-1100E |
| Product Name | FortiGate FG-1100E Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Threat Protection,SSL Encrypted Traffic Protection,Deep Inspection Firewall,Malware Protection,Advanced Threat Intelligence,Intrusion Prevention,Antivirus,Integrated Web Filtering,Anti-spam,Application Control,Virus Protection,Secure IPsec VPN Connectivity |
| Firewall Throughput | 80 Gbit/s |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 10000 |
| Interfaces/Ports | |
| Total Number of Ports | 18 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 18 |
| Media & Performance | |
| VPN Throughput | 6 GB/s |
| Network & Communication | |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X,10GBase-X,40GBase-X |
| Wireless Specifications | |
| Wireless LAN | No |
| I/O Expansions | |
| Total Number of Expansion Slots | 18 |
| Expansion Slot Type | SFP+,SFP28,QSFP+,SFP |
| Number of SFP Slots | 8 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable,Rail-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 17.44" (442.98 mm) |
| Depth | 17.62" (447.55 mm) |
| Weight (Approximate) | 24.90 lb (11294.45 g) |
| Miscellaneous | |
| Package Contents | FortiGate FG-1100E Network Security/Firewall Appliance 2 x SFP (SX 1 GE) Transceivers |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the firewall throughput capacity of the FortiGate FG-1100E?
The FortiGate FG-1100E delivers 80 Gbit/s firewall throughput, enabling comprehensive security inspection including deep packet inspection, intrusion prevention, and threat protection without creating network bottlenecks. This high throughput capacity ensures the appliance can handle demanding enterprise traffic loads while maintaining all security functions.
How many VPN tunnels does the FG-1100E support?
The appliance supports up to 10,000 concurrent VPN tunnels with a VPN throughput of 6 GB/s. This high tunnel density makes it suitable for large distributed organizations requiring secure connectivity between multiple sites, remote workers, and cloud resources while maintaining strong encryption with AES-256 and SHA-256 standards.
What types of network ports are available on this firewall appliance?
The FG-1100E provides 18 total ports, including 18 RJ-45 network ports. It supports multiple Ethernet standards from 10/100/1000Base-T to 40GBase-X through its 40 Gigabit Ethernet architecture. Additionally, the appliance features 18 expansion slots with 8 dedicated SFP slots for fiber optic connectivity using SFP+, SFP28, QSFP+, or SFP transceivers.
Is the FortiGate FG-1100E rack-mountable?
Yes, the appliance features a 2U rack-mountable form factor that is also rail-mountable for secure installation in standard 19-inch racks. The chassis measures 3.50 inches in height, 17.44 inches in width, and 17.62 inches in depth, weighing approximately 24.90 pounds. This design ensures proper cooling and accessibility in data center environments.
What security features are included with this firewall appliance?
The FG-1100E provides unified threat protection including threat protection, SSL encrypted traffic protection, deep inspection firewall, malware protection, advanced threat intelligence, intrusion prevention, antivirus, integrated web filtering, anti-spam, application control, virus protection, and secure IPsec VPN connectivity. These functions work together to provide comprehensive security across network, application, and content layers.
Does the FortiGate FG-1100E support wireless connectivity?
No, the FG-1100E does not include built-in wireless LAN capabilities. It is designed as a wired network security appliance focusing on high-performance Ethernet connectivity through its 18 ports and expansion slots. For wireless security requirements, Fortinet offers complementary wireless access points that can integrate with the FortiGate security ecosystem.
What throughput, switching capacity, or performance detail is listed?
The listed power specification is 80 Gbit/s, which helps position the unit for the right load level and installation role.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is 8, giving buyers a clearer picture of expected coverage after purchase.
