Fortinet FS-224D-FPOE FortiSwitch 224D-FPOE 24-Port Gigabit Managed Layer 3 Switch with 2 SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiSwitch 224D-FPOE operates at Layer 3, providing routing functions such as inter-VLAN routing and static routing, which reduces reliance on external routers for internal network segmentation. Its 24 ports deliver Gigabit Ethernet speeds via 1000Base-T for copper connections and 1000Base-X for SFP-based fiber links, ensuring compatibility with diverse cabling infrastructures. The two SFP slots are shared, allowing flexible use for high-bandwidth uplinks or long-distance fiber connections without sacrificing copper port availability.
Management capabilities include full CLI and web-based GUI access, supporting protocols like SNMP, LLDP, and sFlow for network monitoring and troubleshooting. The switch's power design incorporates a built-in power supply with support for redundant power modules, minimizing downtime in case of power supply failure. Environmentally conscious construction meets RoHS standards, and the compact dimensions of 1.73" height, 17.32" width, and 12.20" depth optimize rack space utilization.
Key Product Advantages
The FortiSwitch 224D-FPOE combines high port density with advanced switching features to support growing network demands. Its Layer 3 functionality enables routing between VLANs, improving network efficiency and reducing latency compared to Layer 2-only switches. The dual SFP slots provide uplink flexibility, allowing connections to core switches or fiber backbones at Gigabit speeds.
Centralized Management
When integrated with FortiGate devices, the switch benefits from unified security policies and network automation, simplifying administration across Fortinet ecosystems.
- Single-pane management via FortiGate
- Automated VLAN provisioning
- Real-time traffic monitoring
High Availability Design
Redundant power supply support ensures continuous operation during power events, while the robust metal chassis dissipates heat effectively for sustained performance.
- Hot-swappable power modules
- Passive cooling with low noise
- Lifetime warranty for long-term reliability
Deployment / Use Cases
The FortiSwitch 224D-FPOE is suited for environments requiring reliable, high-speed switching with routing capabilities. Its 24 ports make it an excellent choice for connecting workstations, IP phones, wireless access points, and servers in office networks, where VLAN segmentation and inter-VLAN routing enhance security and performance.
In educational or healthcare settings, the switch supports bandwidth-intensive applications like video conferencing and electronic medical records, with Layer 3 routing optimizing traffic flow between departments. For small to medium-sized businesses, it serves as a core or distribution switch in stacked or standalone configurations, with SFP uplinks connecting to internet gateways or additional switches. The 1U rack-mount design fits seamlessly into existing infrastructure, supporting tidy cable management via front-facing ports and rear power connections.
Physical Profile

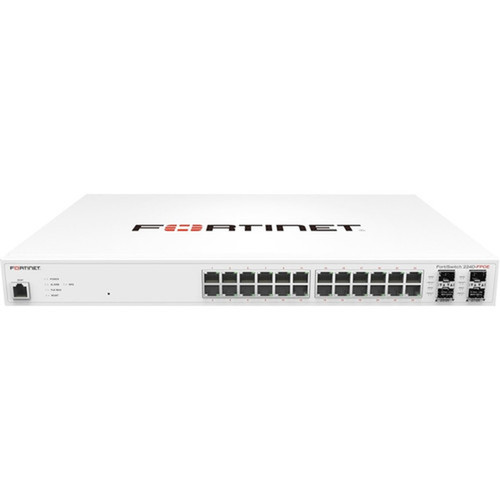

The switch features a sturdy metal enclosure with dimensions of 1.73" (44 mm) height, 17.32" (440 mm) width, and 12.20" (310 mm) depth, designed for standard 19-inch rack mounting. Its 1U height maximizes rack space efficiency, while the 10.65 lb weight ensures stability without excessive bulk. Front-panel ports include 24 RJ-45 Gigabit Ethernet ports and two SFP slots, with status LEDs for easy monitoring. The rear panel accommodates power input and optional redundant power modules, with ventilation grilles promoting passive airflow to maintain optimal operating temperatures in enclosed racks.
- Width
- 17.32" (440 mm)
- Depth
- 12.20" (310 mm)
- Height
- 1.73" (44 mm)
- Weight
- 10.65 lb (4830 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connectivity
- Layer 3 switching with routing capabilities for VLAN segmentation
- Two SFP slots for fiber uplinks or long-distance connections
- Managed via CLI and web GUI for granular network control
- 1U rack-mountable form factor fits standard 19-inch racks
- Redundant power supply support enhances network uptime
- Supports twisted pair and optical fiber media types
- Lifetime warranty provides long-term reliability assurance
- Environmentally friendly construction meets RoHS standards
- Compact design with dimensions optimized for rack deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-224D-FPOE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Series | D |
| Product Model | 224D-FPOE |
| Product Name | FortiSwitch 224D-FPOE Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 12.20" (310 mm) |
| Weight (Approximate) | 10.65 lb (4830 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does the FortiSwitch 224D-FPOE have, and what types are they?
The FortiSwitch 224D-FPOE has 24 Gigabit Ethernet ports, all supporting 10/100/1000 Mbps speeds over twisted pair cabling. Additionally, it includes two SFP slots for fiber optic or copper SFP modules, which can be used for uplinks or expansion. These ports are fixed and non-modular, providing a total of 26 physical interfaces for network connections.
What does Layer 3 support mean for this switch?
Layer 3 support enables the switch to perform routing functions, such as inter-VLAN routing and static routing, allowing traffic to move between different IP subnets without an external router. This improves network efficiency, reduces latency, and simplifies network design by consolidating switching and routing in a single device, making it suitable for segmented networks in offices or campuses.
Can this switch be mounted in a rack, and what are its dimensions?
Yes, the FortiSwitch 224D-FPOE is designed for rack mounting with a 1U form factor. Its dimensions are 1.73 inches (44 mm) in height, 17.32 inches (440 mm) in width, and 12.20 inches (310 mm) in depth, fitting standard 19-inch racks. The compact size optimizes space in data centers or network closets, and it includes mounting brackets for secure installation.
Does the switch support redundant power supplies?
Yes, the FortiSwitch 224D-FPOE supports redundant power supplies, allowing for the installation of an optional second power module. This feature provides power redundancy to minimize downtime in case of a power supply failure, ensuring continuous operation for critical network segments. The switch includes a built-in power supply with connectors for redundant modules.
What management options are available for this switch?
The switch is fully manageable via a command-line interface (CLI) and a web-based graphical user interface (GUI). It supports standard management protocols like SNMP for monitoring, LLDP for device discovery, and sFlow for traffic analysis. When integrated with FortiGate devices, it can be centrally managed through Fortinet's Security Fabric for unified policy enforcement and automation.
What is the warranty coverage for the FortiSwitch 224D-FPOE?
The FortiSwitch 224D-FPOE comes with a lifetime warranty from Fortinet, covering defects in materials and workmanship for the product's usable life. This warranty provides long-term reliability assurance and includes access to firmware updates and technical support, though it may require registration. It reflects Fortinet's confidence in the switch's durability for enterprise deployments.
