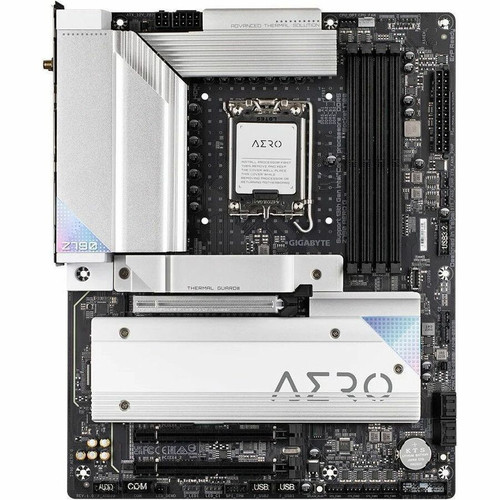

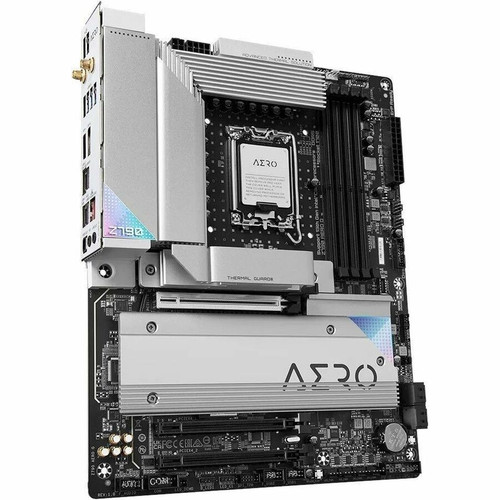

Gigabyte AERO G ATX Desktop Motherboard Intel Socket LGA1700 Core Pentium Gold Celeron Processor Support 192GB Z790 AERO G Z790 AERO G Z790 AERO G
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Marketing Information:
AERO SERIES
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
VISIONLINK | Simplify Your Connections.
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C®cable.
Connectivity
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.
Intel®2.5GbE LAN
Wait No More
Brings a speed network experience to life.
Intel®2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers.
Wi-Fi 6E
Do more. Stream more. Enjoy more.
Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.
SuperSpeed USB 20Gbps
USB 3.2 Gen 2x2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.
DDR5
Faster Instant Reaction Speed.
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.
PCIe 5.0 Design
The Fastest, Most Robust Level.
Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.
PCIe 5.0 M.2 Slots & Next-Gen Connector Dimension Design
Supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions.
PCIe 5.0 x16 Slot
Supports new PCIe 5.0 graphics or accelerator card
PCIe EZ-Latch | PCIe 5.0 M.2 Storage
Fast Speed. More Space.
Equipped with a full-speed PCIe 5.0 M.2 slot.
A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
PCIe x4 M.2
Creates Exclusive Storage Performance.
All PCIe x4 M.2 slots provide NVMe®SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.
Aesthetic Cooling Design.
GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 14th Gen,13th Gen,12th Gen
Processor Supported: Core,Pentium Gold,Celeron
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 192 GB
Memory Speed Supported: 7600 MHz,7400 MHz,7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,4800 MHz,4000 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Graphics Controller Model: HD Graphics
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 5.0,PCI Express 4.0,PCI Express 3.0
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 5
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | Z790AEROG |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | Gigabyte |
| Product Model | Z790 AERO G |
| Product Name | Z790 AERO G Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen,13th Gen,12th Gen |
| Processor Supported | Core,Pentium Gold,Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 7600 MHz,7400 MHz,7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,4800 MHz,4000 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
