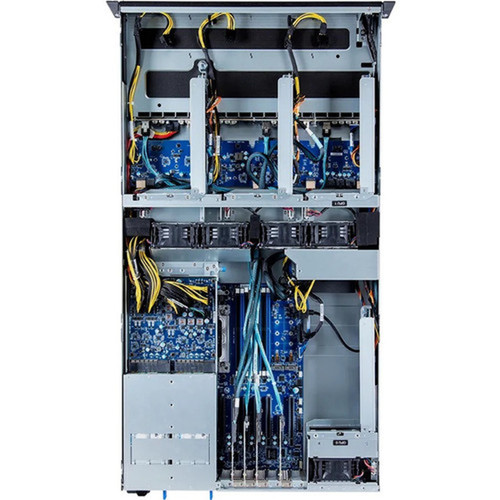

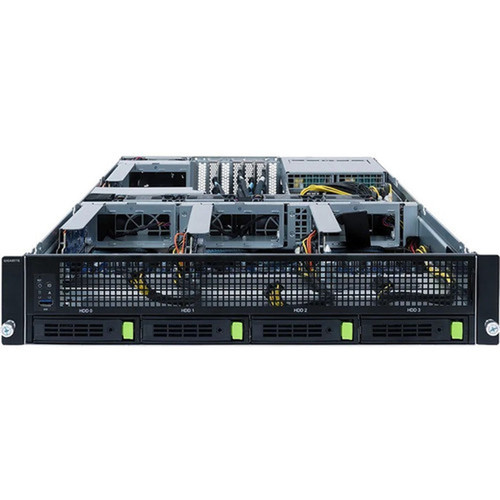

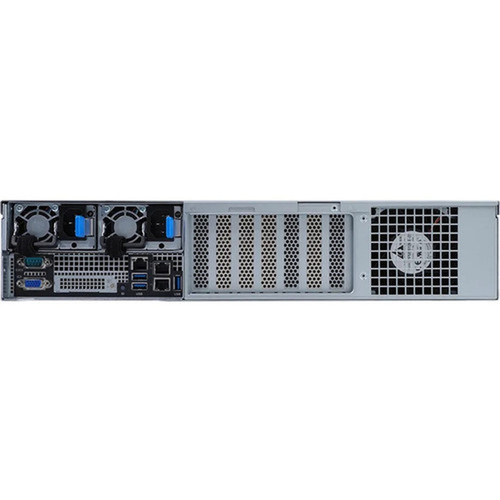

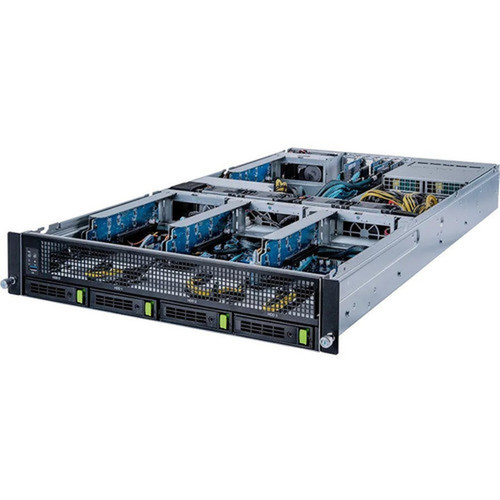

Gigabyte G242-P36 Barebone System - 2U Rack-mountable - Ampere Altra Max CPU - 4TB DDR4 Memory - 4 x 3. 5" Bays - Dual 1. 6kW PSUs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Ampere platform with Socket LGA-4926, the G242-P36 supports Altra Max processors featuring 64-bit ARM architecture for power-efficient performance. The system accommodates up to 4TB of DDR4-3200 memory across 16 slots, providing substantial bandwidth for data-intensive workloads.
Storage flexibility comes from four 3.5" drive bays supporting high-capacity hard drives or SSDs, while two PCI Express x16 expansion slots enable additional networking, storage, or accelerator cards. The integrated AST2500 graphics controller provides basic display output through the VGA port for local management.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The G242-P36 combines enterprise-grade reliability with the performance characteristics of Ampere's Altra Max processors, offering an energy-efficient alternative to traditional x86 server platforms. Dual hot-swappable power supplies with 1.6kW capacity each ensure power redundancy for critical applications.
High Memory Capacity
Support for up to 4TB DDR4 memory across 16 DIMM slots enables handling of large datasets and memory-resident applications without performance bottlenecks.
- 16 memory slots
- DDR4-3200 speed
- 4TB maximum capacity
Enterprise Connectivity
Four USB ports including three USB 3.2 Gen 2 ports provide high-speed peripheral connectivity, while Gigabit Ethernet ensures reliable network communication.
- 3x USB 3.2 Gen 2
- 1x USB 3.2 Gen 1
- Gigabit Ethernet
Rack-Optimized Design
The 2U form factor maximizes rack space efficiency while providing adequate cooling for sustained high-performance operation in data center environments.
- 2U height
- Standard rack mounting
- Efficient airflow design
Deployment / Use Cases
The G242-P36 barebone system is particularly well-suited for cloud infrastructure deployments where ARM-based processors offer advantages in power efficiency and core density. Its support for multiple Linux distributions makes it ideal for containerized applications, microservices architectures, and web serving workloads.
Enterprise applications include database servers, virtualization hosts, and computational research platforms where the combination of high memory capacity and Ampere processor performance delivers tangible benefits. The system's compatibility with major Linux distributions ensures flexibility in software deployment and management.
Cloud & Virtualization
Deploy as hypervisor hosts for ARM-based virtual machines or container platforms, leveraging the Altra Max processor's multi-core architecture for efficient workload consolidation.
Data Analytics & AI
Process large datasets with the system's substantial memory capacity, suitable for in-memory analytics, machine learning inference, and scientific computing applications.
Physical Profile
Designed for standard 19-inch rack installation, the G242-P36 measures 3.44" (87.5mm) in height (2U), 17.24" (438mm) in width, and 32.28" (820mm) in depth. The compact 2U form factor optimizes rack space utilization while providing sufficient internal volume for components and airflow.
The chassis includes integrated mounting points for standard rack rails, with the included rail kit facilitating secure installation in data center racks. The front-accessible drive bays and rear I/O panel simplify maintenance and cable management during deployment.
- Width
- 17.24" (438 mm)
- Depth
- 32.28" (820 mm)
- Height
- 2U
What's in the Box
The G242-P36 barebone system ships complete with essential components for immediate deployment.
Highlights
- 2U rack-mountable barebone system with Ampere Altra Max processor support
- Supports up to 4TB DDR4-3200 memory across 16 DIMM slots
- Four 3.5" drive bays for high-capacity storage configurations
- Dual 1.6kW power supplies with hot-swap capability
- Comprehensive Linux OS support including RHEL, Ubuntu, and SUSE
- Two PCI Express x16 expansion slots for additional cards
- Four USB ports including three USB 3.2 Gen 2 for high-speed connectivity
- Gigabit Ethernet for reliable network communication
- Includes CPU heatsink and rail kit for immediate deployment
- 3-year limited warranty with RoHS and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G242-P36 |
| Brand Name | GIGABYTE |
| Product Model | G242-P36 |
| Product Name | G242-P36 Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra Max |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Ampere |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64,Red Hat Enterprise Linux 8.5 x64,SUSE Linux Enterprise Server 15 SP2 x64,SUSE Linux Enterprise Server 15 SP3 x64,Ubuntu 18.04.5 LTS x64,Ubuntu 20.04.1 LTS x64,Ubuntu 22.04 LTS x64,Fedora Server 33,Oracle Linux,Debian 10.9,Debian 11.1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 32.28" (820 mm) |
| Miscellaneous | |
| Package Contents | G242-P36 Barebone System 1 x CPU Heatsink 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processor does the G242-P36 support?
The G242-P36 supports Ampere Altra Max processors using the Socket LGA-4926. These 64-bit ARM-based processors are designed for cloud-native workloads and offer high core density with power efficiency advantages over traditional x86 architectures in certain applications.
How much memory can this barebone system support?
This system supports up to 4TB of DDR4 SDRAM memory across 16 DIMM slots. The memory operates at DDR4-3200/PC4-25600 speeds, providing substantial bandwidth for memory-intensive applications like databases, virtualization, and data analytics workloads.
What storage options are available in the G242-P36?
The chassis includes four 3.5" drive bays that support both hard disk drives and solid-state drives. These bays accommodate high-capacity storage devices, allowing for flexible storage configurations based on performance, capacity, and redundancy requirements for different deployment scenarios.
What operating systems are compatible with this system?
The G242-P36 supports multiple enterprise Linux distributions including Red Hat Enterprise Linux 8.3/8.5, SUSE Linux Enterprise Server 15 SP2/SP3, Ubuntu 18.04.5/20.04.1/22.04 LTS, Fedora Server 33, Oracle Linux, and Debian 10.9/11.1. This broad compatibility ensures flexibility for different organizational requirements.
What power supply configuration does this system have?
The system includes two 1.6kW power supplies installed for redundancy. This dual power supply configuration provides power failover protection, ensuring continuous operation if one power supply fails. The hot-swappable design allows for replacement without system downtime during maintenance.
What expansion capabilities does the G242-P36 offer?
The system provides two PCI Express x16 expansion slots for adding networking cards, storage controllers, or accelerator cards. Additionally, it includes four USB ports (three USB 3.2 Gen 2 and one USB 3.2 Gen 1) for peripheral connectivity, one VGA port for display output, and Gigabit Ethernet for network connectivity.
