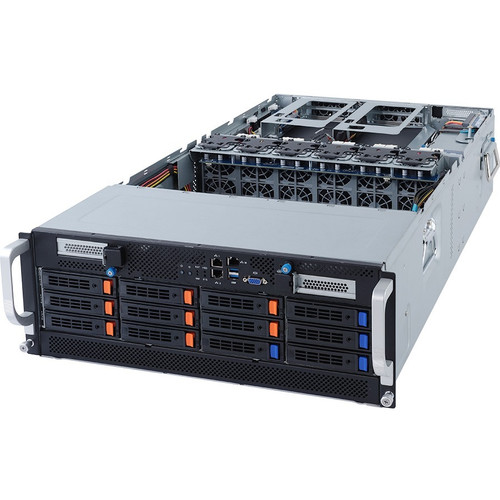

Gigabyte G492-Z51 HPC Server Barebone System - 4U Rack-Mountable - Dual EPYC Socket SP3128GB DDR4 - 10x Gen4 GPU Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The G492-Z51 employs an AMD chipset architecture optimized for server workloads. The dual processor configuration provides multiple core counts depending on the specific EPYC CPU models installed, with Socket SP3 ensuring compatibility across the EPYC processor family. Memory architecture utilizes DDR4 SDRAM technology across 32 DIMM slots, supporting DDR4-3200/PC4-25600 memory modules for optimal performance and thermal efficiency.
Storage connectivity includes both Serial Attached SCSI (SAS) and Serial ATA/600 controllers, supporting the 12 internal 3.5" drive bays. The system incorporates an AST2500 graphics controller with shared DDR4 graphics memory for basic display output, while the extensive PCIe expansion accommodates dedicated GPU solutions. Network connectivity features both Gigabit Ethernet and 10 Gigabit Ethernet interfaces for high-speed data transfer across network environments.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This server barebone system combines high-density computing with flexible expansion in a standardized rack form factor. The 4U chassis height provides sufficient internal space for comprehensive cooling solutions and component accessibility while maintaining efficient rack space utilization.
GPU-Accelerated Computing
With dedicated support for up to 10 Gen4 GPU accelerators, the system enables substantial parallel processing capabilities for machine learning, scientific simulations, and rendering workloads.
- 10 dedicated Gen4 GPU slots
- PCIe x16 bandwidth
- Optimized for GPU clustering
Enterprise Storage Capacity
Twelve 3.5" drive bays provide substantial storage capacity for data-intensive applications, with support for both SAS and SATA drive technologies.
- 12 hot-swappable bays
- SAS and SATA support
- High-density storage configuration
Redundant Power Architecture
Three 2.2kW power supplies with C19 connectors deliver reliable power distribution with redundancy capabilities for continuous operation in critical environments.
- 3x power supplies
- 2.2kW capacity each
- C19 connector compatibility
Deployment / Use Cases
The G492-Z51 HPC Server Barebone System serves as an ideal foundation for high-performance computing infrastructure across multiple enterprise and research applications. Its balanced configuration of processing power, memory capacity, and expansion capabilities supports diverse workload requirements.
In data center environments, the system functions effectively as a compute node within HPC clusters, handling parallel processing tasks across scientific research, financial modeling, and engineering simulations. The substantial GPU support makes it particularly suitable for artificial intelligence and machine learning workloads, where multiple accelerators can dramatically reduce training times for complex models.
High-Performance Computing Clusters
Deploy as compute nodes in scientific research facilities, universities, or corporate research divisions where parallel processing capabilities accelerate complex calculations and simulations.
GPU-Accelerated Workloads
Support machine learning training, deep learning inference, computational fluid dynamics, or rendering farms where multiple GPU accelerators significantly reduce processing time.
Physical Profile
The server chassis occupies a 4U rack height, measuring 6.93 inches (176 mm) in height, 17.64 inches (448 mm) in width, and 34.65 inches (880 mm) in depth. This standardized rack-mountable form factor ensures compatibility with standard 19-inch server racks and data center infrastructure. The dimensions provide sufficient internal volume for component cooling and accessibility while maintaining efficient use of rack space in high-density deployments.
- Width
- 17.64" (448 mm)
- Depth
- 34.65" (880 mm)
- Height
- 4U
What's in the Box
The barebone system includes essential components for initial deployment and basic operation.
Highlights
- Dual EPYC processor support with Socket SP3 compatibility
- 128GB maximum DDR4-3200 memory across 32 DIMM slots
- 4U rack-mountable chassis for standard server rack deployment
- 10 dedicated Gen4 GPU slots for accelerated computing
- 12 hot-swappable 3.5" drive bays with SAS/SATA support
- 14 PCI Express x16 expansion slots for comprehensive I/O
- Dual network connectivity with Gigabit and 10Gb Ethernet
- Triple 2.2kW power supplies with C19 connectors
- Comprehensive OS support including Windows Server and Linux variants
- Includes rail kit for standard rack mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G492-Z51 |
| Brand Name | GIGABYTE |
| Product Model | G492-Z51 |
| Product Name | HPC Server - 4U DP 10 x Gen4 GPU Server ( Broadcom solution) |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS),Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 14 |
| Number of PCI Express x16 Slots | 14 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Red Hat Enterprise Linux 7.6 x64,Red Hat Enterprise Linux 8.0 x64,SuSE Linux Enterprise Server 12 x64,SuSE Linux Enterprise Server 15 x64,Ubuntu 16.04.6 LTS x64,Ubuntu 18.04.3 LTS x64,Ubuntu 20.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 3 |
| Maximum Power Supply Wattage | 2.20 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.93" (176 mm) |
| Width | 17.64" (448 mm) |
| Depth | 34.65" (880 mm) |
| Miscellaneous | |
| Package Contents | HPC Server - 4U DP 10 x Gen4 GPU Server ( Broadcom solution) 2 x CPU Fan-Sinks 1 x Rail Kit |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with this server barebone system?
The G492-Z51 supports dual AMD EPYC processors using Socket SP3. This socket compatibility ensures support across the EPYC processor family, allowing configuration with various core counts and performance levels depending on specific workload requirements and budget considerations.
How much memory can this system support and what type does it use?
This server barebone supports up to 128GB of DDR4 SDRAM memory across 32 DIMM slots. The memory standard is DDR4-3200/PC4-25600, providing high-speed operation with improved power efficiency compared to previous DDR generations, which benefits both performance and thermal management in rack-mounted environments.
What expansion capabilities does this 4U chassis provide?
The chassis includes 14 PCI Express x16 expansion slots, with dedicated support for up to 10 Gen4 GPU accelerators. This substantial expansion capacity enables comprehensive I/O configuration, including multiple network adapters, storage controllers, and specialized accelerator cards for demanding computing workloads.
What storage configuration options are available?
The system provides 12 internal 3.5" drive bays with support for both Serial Attached SCSI (SAS) and Serial ATA/600 drive technologies. This configuration allows for high-density storage deployment with flexibility in drive type selection based on performance requirements, capacity needs, and budget considerations.
What operating systems are supported by this server barebone?
The system supports multiple enterprise operating systems including Windows Server 2016, Windows Server 2019, various Red Hat Enterprise Linux versions, SuSE Linux Enterprise Server editions, and Ubuntu LTS releases. This broad compatibility ensures deployment flexibility across different IT environments and application requirements.
What power requirements does this server system have?
The system includes three 2.2kW power supplies with C19 connectors, supporting input voltages of 120V AC and 230V AC. This redundant power architecture provides reliability for continuous operation in data center environments, with sufficient capacity to support the dual processors, memory, storage, and multiple GPU accelerators.
