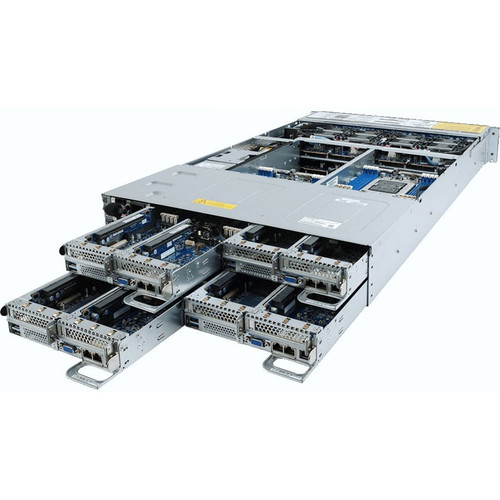

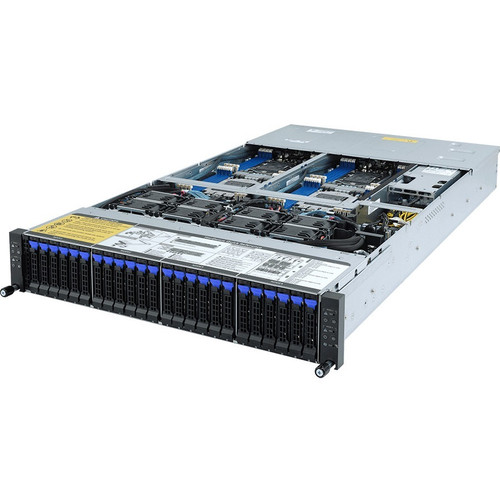

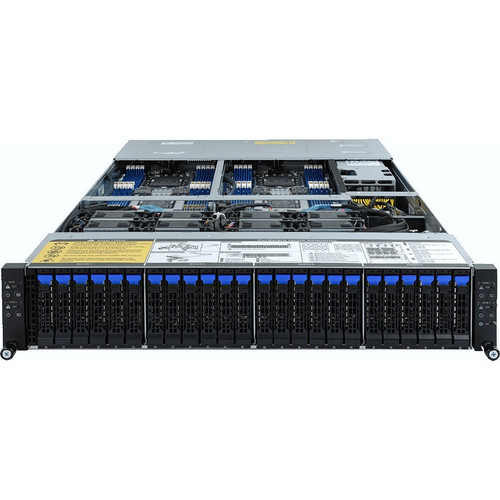

Gigabyte H262-Z61 Rackmount Server Barebone System - 2U 4 Nodes - Dual Socket SP3128GB DDR4 - AMD EPYC Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The H262-Z61 server barebone delivers a balanced architecture optimized for virtualization, database hosting, and high-performance computing workloads. Each of the four nodes supports two AMD EPYC processors, enabling up to eight CPU sockets total across the chassis. The AMD chipset provides robust I/O connectivity, while the AST2500 graphics controller delivers basic display output for management purposes.
Memory architecture utilizes DDR4 SDRAM technology operating at 3200 MHz (PC4-25600), with 16 total DIMM slots supporting ECC memory for enhanced data integrity. Expansion capabilities include three PCI Express x16 slots and six total expansion bays for adding storage drives, network adapters, or specialized accelerator cards. Network connectivity is provided through integrated Gigabit Ethernet controllers, suitable for standard data center networking requirements.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The H262-Z61 offers several distinct advantages for organizations deploying server infrastructure in space-constrained data centers. The four-node design within a 2U chassis provides exceptional compute density, reducing rack space requirements while maintaining serviceability through modular node architecture.
High-Density Design
Four independent server nodes in a single 2U enclosure maximize rack space utilization without compromising individual node performance or accessibility.
- Reduces physical footprint by 75% compared to single-node 2U servers
- Maintains full processor and memory capabilities per node
- Simplifies cable management and power distribution
Enterprise-Grade Reliability

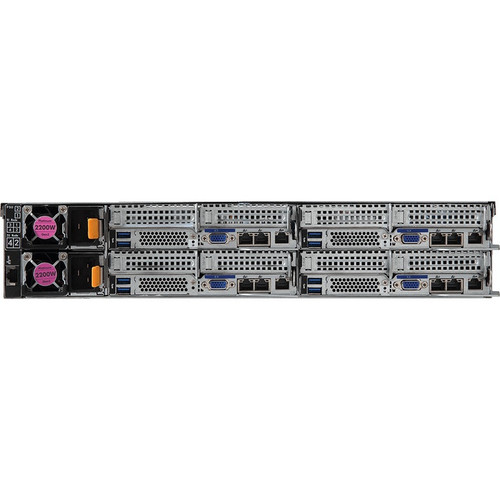

Dual redundant power supplies with 2.20 kW capacity each ensure continuous operation, while comprehensive thermal management maintains optimal operating temperatures.
- Hot-swappable power supply design
- Eight CPU heatsinks included for effective cooling
- Rail kit for secure rack mounting
Deployment / Use Cases
The Gigabyte H262-Z61 server barebone is ideally suited for environments requiring scalable, high-density compute resources. Virtualization platforms benefit from the four-node architecture, allowing consolidation of multiple virtual machines while maintaining hardware isolation between workloads. Each node can be configured independently, enabling mixed-use deployments within a single chassis.
Database hosting applications leverage the substantial memory capacity and processor support for demanding transactional workloads. The system's expansion capabilities accommodate additional storage controllers or network interfaces for specialized database configurations. High-performance computing clusters utilize the compact form factor to maximize compute density per rack unit, reducing facility costs while maintaining processing power.
Virtualization Host
Deploy as a VMware ESXi, Microsoft Hyper-V, or KVM host with dedicated nodes for different departments, applications, or security zones.
Database Server
Configure for SQL Server, Oracle Database, or PostgreSQL deployments with ample memory for caching and multiple processors for parallel query execution.
Physical Profile
The H262-Z61 occupies a standard 2U rack space with dimensions of 3.44 inches (87.50 mm) in height, 17.32 inches (440 mm) in width, and 33.07 inches (840 mm) in depth. The rack-mountable form factor includes a rail kit for secure installation in 19-inch server racks. The compact 2U height optimizes vertical space utilization while providing sufficient internal volume for effective airflow and component cooling. The system's depth accommodates standard server cabinet configurations commonly found in data center environments.
- Width
- 17.32" (440 mm)
- Depth
- 33.07" (840 mm)
- Height
- 2U
What's in the Box
The H262-Z61 server barebone system ships with all necessary components for rack installation and basic operation.
Highlights
- Four independent server nodes in a 2U rackmount chassis
- Dual Socket SP3 support for AMD EPYC processors
- Up to 128 GB DDR4-3200 memory across 16 DIMM slots
- Three PCI Express x16 expansion slots
- Dual redundant 2.20 kW power supplies
- Support for Windows Server, RHEL, SLES, and Ubuntu
- Integrated Gigabit Ethernet connectivity
- Rail kit included for secure rack installation
- RoHS compliant and environmentally friendly
- One-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H262-Z61 |
| Brand Name | GIGABYTE |
| Product Model | H262-Z61 |
| Product Name | H262-Z61 (rev. 100) AMD EPYC™ 7002 DP Server System - 2U 4 nodes |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Red Hat Enterprise Linux 7.6 x64,Red Hat Enterprise Linux 8.0 x64,SuSE Linux Enterprise Server 12 x64,SuSE Linux Enterprise Server 15 x64,Ubuntu 18.04.2 LTS x64,Ubuntu 16.04.6 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2.20 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 33.07" (840 mm) |
| Miscellaneous | |
| Package Contents | H262-Z61 (rev. 100) AMD EPYC™ 7002 DP Server System - 2U 4 nodes 8 x CPU heatsinks 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with the H262-Z61 server barebone?
The H262-Z61 supports AMD EPYC processors through dual Socket SP3 interfaces on each of its four nodes. This compatibility includes the EPYC 7002 series and other Socket SP3-based EPYC processors. The system's architecture is optimized for EPYC's core count and memory capabilities, making it suitable for both general-purpose and high-core-count workload deployments.
How much memory can I install in this server system?
The H262-Z61 supports up to 128 GB of DDR4 SDRAM memory across 16 total DIMM slots. Memory operates at DDR4-3200 speed (PC4-25600) and supports ECC functionality for enhanced data integrity. The memory architecture is distributed across the four nodes, allowing flexible configuration based on specific node requirements within the overall system capacity.
What operating systems are supported by this server barebone?
The system supports multiple enterprise operating systems including Windows Server 2016, Windows Server 2019, Red Hat Enterprise Linux 7.6 x64 and 8.0 x64, SUSE Linux Enterprise Server 12 x64 and 15 x64, and Ubuntu 18.04.2 LTS x64 and 16.04.6 LTS x64. This broad compatibility ensures deployment flexibility across different IT environments and application requirements.
What expansion capabilities does the H262-Z61 provide?
The server barebone offers three PCI Express x16 slots for adding expansion cards such as network adapters, storage controllers, or GPU accelerators. Additionally, the system includes six total expansion bays for installing storage drives. These expansion capabilities allow customization for specific workload requirements while maintaining the system's compact 2U form factor.
What power supplies are included with the H262-Z61?
The system includes two installed power supplies with a maximum wattage of 2.20 kW each. These power supplies operate with input voltages of 120 V AC or 230 V AC, providing flexibility for different data center power configurations. The redundant design ensures continuous operation in case of a single power supply failure.
How is the H262-Z61 configured for rack installation?
The server barebone is designed as a 2U rack-mountable system with dimensions of 3.44 inches in height, 17.32 inches in width, and 33.07 inches in depth. A rail kit is included in the package contents, providing all necessary hardware for secure installation in standard 19-inch server racks. The 2U height optimizes rack space utilization while maintaining serviceability.
