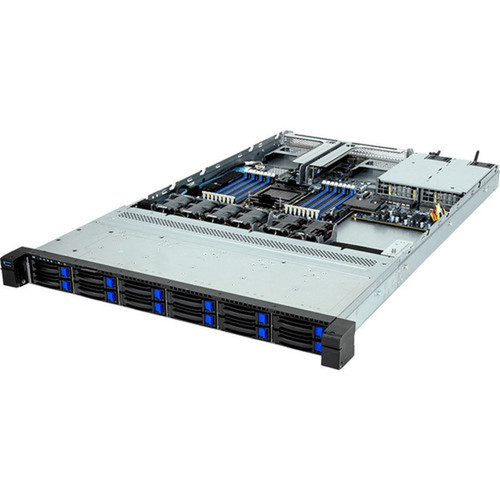

Gigabyte R163-S32-AAB1 1U Rack Barebone Server - Socket LGA-4677256GB DDR5 - 12 Bays - Dual 800W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

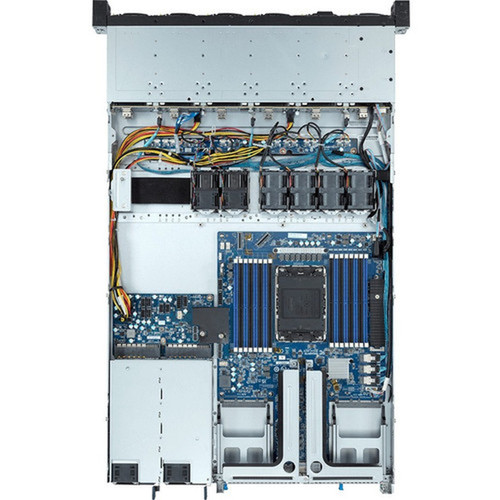

The server leverages the Intel C741 chipset to manage memory and I/O pathways, supporting up to 256 GB of DDR5 SDRAM across 16 DIMM slots. Memory operates at DDR5-4800/PC5-38400 standards, providing high bandwidth for data-intensive applications. The system is Intel Optane Memory Ready for future persistent memory upgrades.
Storage connectivity is handled by a Serial ATA/600 controller with RAID support, enabling configurable storage arrays for performance or redundancy. Integrated graphics are provided by an AST2600 controller with DDR4 SDRAM, suitable for basic console output. Networking is delivered through Gigabit Ethernet ports, ensuring reliable wired connectivity.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone server delivers a balanced combination of density, expandability, and reliability for modern data center workloads. The 1U rack design optimizes floor space while providing essential server features in a streamlined package.
High-Density Memory Support
With 16 DDR5 slots supporting up to 256 GB, the system accommodates large memory footprints for virtualization, databases, and in-memory computing tasks.
- DDR5-4800/PC5-38400 speed
- Intel Optane Memory Ready
Redundant Power Design

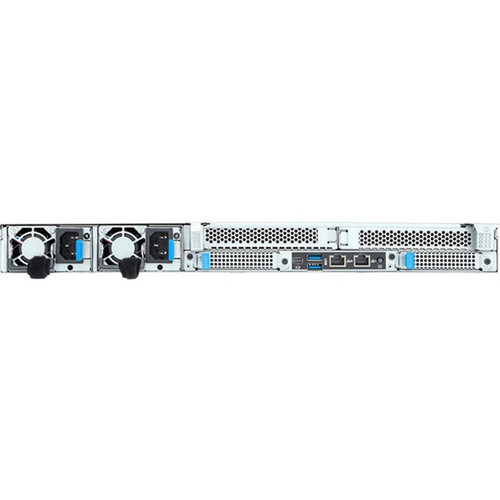

Dual 800W power supplies with auto-switching capability ensure continuous operation during power events, critical for server uptime.
- 120/230V AC input range
- Hot-swappable capable design
Expansion Flexibility
Twelve expansion bays and four PCIe x16 slots allow for significant storage and accelerator card deployment, adapting to evolving workload demands.
- SATA/600 controller with RAID
- Four full-length PCIe slots
Deployment / Use Cases
The R163-S32-AAB1 is suited for environments where rack space is at a premium but performance cannot be compromised. Its single-socket design targets workloads that benefit from high core counts and large memory capacity without the complexity of dual-processor configurations.
Typical deployments include virtualized server hosts, network storage controllers, medium-duty database servers, and dedicated application servers. The system's Gigabit Ethernet and multiple expansion slots make it adaptable for network appliances, security gateways, or compute nodes in clustered environments.
Virtualization Host
Support for large memory and multiple storage bays makes this server effective for hosting virtual machines, with room for both OS and data storage.
Storage Server
Twelve bays provide ample room for hard drives or SSDs, while the SATA/600 controller with RAID enables reliable storage pooling for file or backup services.
Physical Profile
The chassis measures 1.71" (43.5 mm) in height, 17.24" (438 mm) in width, and 27.95" (710 mm) in depth, conforming to standard 1U rack dimensions. The included rail kit facilitates secure mounting in 19-inch server racks. The compact footprint allows high-density deployment in data center cabinets while maintaining adequate airflow for cooling.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.24" (438 mm), 27.95" (710 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 27.95" (710 mm)
- Height
- 1U
What's in the Box
The package includes all necessary components to assemble a functional server chassis, minimizing additional procurement.
Highlights
- 1U rack-mountable barebone server chassis for space-efficient data center deployment
- Supports single Socket LGA-4677 processor compatible with Intel Xeon Platinum, Gold, Silver, and Xeon CPUs
- Accommodates up to 256 GB of DDR5 SDRAM across 16 memory slots for high-capacity workloads
- Features 12 total expansion bays and 4 PCI Express x16 slots for storage and I/O flexibility
- Includes dual 800W power supplies with 120/230V AC input for redundant power reliability
- Integrated Gigabit Ethernet provides wired network connectivity for server communication
- Serial ATA/600 controller with RAID support enables configurable storage arrays
- Comes with rail kit and mounting accessories for straightforward rack installation
- Complies with RoHS and WEEE environmental standards for reduced ecological impact
- Backed by a 3-year limited warranty for long-term support assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R163-S32-AAB1 |
| Brand Name | GIGABYTE |
| Product Model | R163-S32 |
| Product Name | R163-S32 (rev. AAB1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 800 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 27.95" (710 mm) |
| Miscellaneous | |
| Package Contents | R163-S32 (rev. AAB1) Barebone System 1 x CPU Heatsink 1 x Mini-DP To D-Sub Cable 3 x Carrier Clips 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone server?
The server supports Intel Xeon processors using the Socket LGA-4677 interface, including Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon series. This single-socket design is optimized for workloads that benefit from high core counts and advanced features of these server-grade CPUs.
How much memory can this server support?
The system supports up to 256 GB of DDR5 SDRAM across 16 DIMM slots. Memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for data-intensive applications. The platform is also Intel Optane Memory Ready for future persistent memory upgrades.
What expansion capabilities does this chassis offer?
The chassis provides 12 total expansion bays for storage devices and 4 PCI Express x16 slots for add-in cards. This allows for significant storage capacity through drives and flexibility for network cards, GPUs, or other accelerators to meet specific workload requirements.
What power supplies are included with this server?
The system includes two 800W power supplies that support 120V and 230V AC input. This dual-power design offers redundancy, so if one power supply fails, the other can maintain operation, which is critical for server uptime in data center environments.
Is this server rack-mountable?
Yes, this is a 1U rack-mountable chassis measuring 1.71" high, 17.24" wide, and 27.95" deep. It includes a rail kit for secure installation in standard 19-inch server racks, making it ideal for data centers where space optimization is important.
What storage controller does this server use?
The server uses a Serial ATA/600 controller that supports RAID configurations. This enables high-speed data transfer to connected storage devices and allows for RAID setups like mirroring or striping to improve performance or redundancy for stored data.
