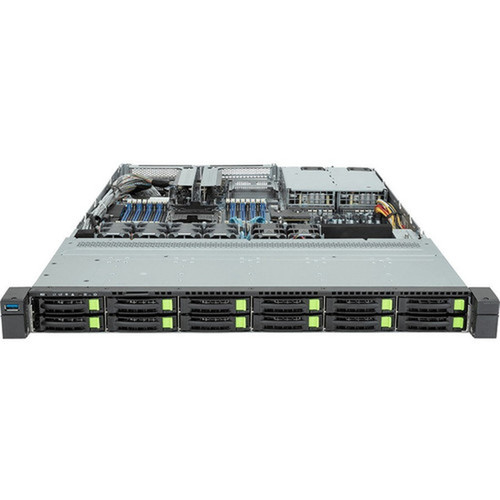

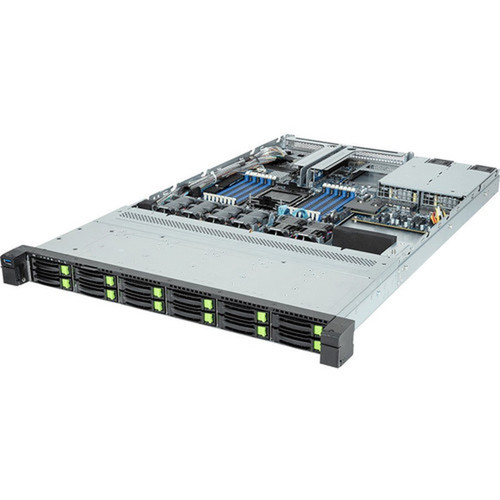

Gigabyte R163-S32-AAC1 Barebone System - 1U Rack-mountable - LGA-4677 Socket - 256GB DDR5 - 12 Bays - Dual PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the R163-S32-AAC1 is the Intel C741 chipset paired with a Socket LGA-4677 processor interface, supporting the latest Intel Xeon processor families including Platinum, Gold, Silver, and standard Xeon models. This platform delivers 64-bit processing capabilities optimized for demanding server workloads.
Memory architecture features 16 DDR5 SDRAM slots supporting up to 256GB of system memory at DDR5-4800/PC5-38400 speeds. The system is Intel Optane Memory Ready for future memory technology integration. Storage connectivity is handled by Serial ATA/600 controllers with RAID support for data protection and performance optimization.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system delivers several strategic advantages for enterprise deployment scenarios. The 1U form factor maximizes rack density while maintaining full server capabilities, making it ideal for data centers where space optimization is critical.
High-Density Design
The compact 1U chassis accommodates substantial computing power in minimal rack space, supporting efficient data center operations and reducing physical infrastructure requirements.
- 1U rack height (1.71")
- Standard 19" rack width
- Optimized airflow design
Enterprise-Grade Reliability
Dual 1.30 kW power supplies provide redundancy for continuous operation, while the robust chassis construction ensures stable performance in demanding server environments.
- Dual redundant PSUs
- Comprehensive cooling
- Industrial-grade components
Future-Ready Architecture
Support for DDR5 memory technology and Intel Optane Memory readiness ensures compatibility with emerging memory technologies and future performance enhancements.
- DDR5-4800 support
- Intel Optane ready
- PCIe expansion capability
Deployment / Use Cases
The Gigabyte R163-S32-AAC1 barebone system is engineered for diverse enterprise computing applications where rack density, customization flexibility, and reliability are paramount. Its balanced configuration supports both general-purpose server roles and specialized computing tasks.
In virtualized environments, this platform can serve as a hypervisor host supporting multiple virtual machines, leveraging its substantial memory capacity and storage expansion capabilities. For storage-intensive applications, the 12 expansion bays provide ample room for high-capacity drives in RAID configurations, making it suitable for NAS implementations or backup servers.
Virtualization Host
Deploy as a virtualization platform supporting multiple virtual machines with dedicated resources, utilizing the 256GB memory ceiling and multiple processor core support.
Storage Server
Configure with multiple drives across 12 expansion bays for high-capacity storage solutions, file servers, or backup repositories with RAID protection.
Physical Profile
The chassis measures 1.71 inches in height (43.50 mm), 17.24 inches in width (438 mm), and 27.95 inches in depth (710 mm), conforming to standard 1U rack specifications. The rack-mountable design includes integrated rail kits for secure installation in standard 19-inch server racks. The compact footprint optimizes data center space utilization while maintaining adequate internal volume for component cooling and cable management.
- Width
- 17.24" (438 mm)
- Depth
- 27.95" (710 mm)
- Height
- 1U
What's in the Box
This barebone system ships with essential components for immediate deployment and customization.
Highlights
- 1U rack-mountable chassis for high-density data center deployment
- Socket LGA-4677 supports Intel Xeon Platinum, Gold, Silver, and Xeon processors
- 16 DDR5 SDRAM slots supporting up to 256GB system memory
- 12 expansion bays for substantial storage capacity
- Dual 1.30 kW power supplies with redundancy
- Intel C741 chipset with 64-bit processing
- Serial ATA/600 controller with RAID support
- Gigabit Ethernet connectivity
- 3 USB 3.2 Gen 1 ports for peripheral connectivity
- 3-year limited warranty with environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R163-S32-AAC1 |
| Brand Name | GIGABYTE |
| Product Model | R163-S32 |
| Product Name | R163-S32 (rev. AAC1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.30 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 27.95" (710 mm) |
| Miscellaneous | |
| Package Contents | R163-S30 (rev. AAB2) Barebone System 1 x CPU Heatsink 1 x Mini-DP To D-Sub Cable 3 x Carrier Clips 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The Gigabyte R163-S32-AAC1 supports Intel Xeon processors using the Socket LGA-4677 interface. This includes Xeon Platinum, Xeon Gold, Xeon Silver, and standard Xeon processor families. The system is designed for single processor configurations and requires compatible Xeon CPUs for operation.
How much memory can this system support?
This barebone system supports up to 256GB of DDR5 SDRAM across 16 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds and is compatible with registered ECC memory modules typically used in server environments. The system is also Intel Optane Memory Ready for future memory technology integration.
What storage expansion options are available?
The chassis provides 12 total expansion bays for storage devices, along with 2 PCI Express x16 expansion slots for additional controller cards. The integrated Serial ATA/600 controller supports RAID configurations for data protection and performance optimization across connected storage devices.
What are the physical dimensions and rack requirements?
The system measures 1.71 inches in height (43.50 mm), 17.24 inches in width (438 mm), and 27.95 inches in depth (710 mm), conforming to standard 1U rack specifications. It includes an integrated rail kit for installation in standard 19-inch server racks and requires appropriate rack space and power distribution.
What power supplies are included with this system?
The barebone system includes two 1.30 kW power supplies installed for redundancy and reliability. These power supplies support input voltages of 120V AC and 230V AC, making them compatible with standard North American and international power infrastructures in data center environments.
What connectivity options does this system provide?
Connectivity includes Gigabit Ethernet for network access, 3 USB 3.2 Gen 1 ports for peripheral devices, and graphics output through the integrated AST2600 controller with DDR4 graphics memory. The system also includes a Mini-DP to D-Sub cable in the package for display connectivity.
