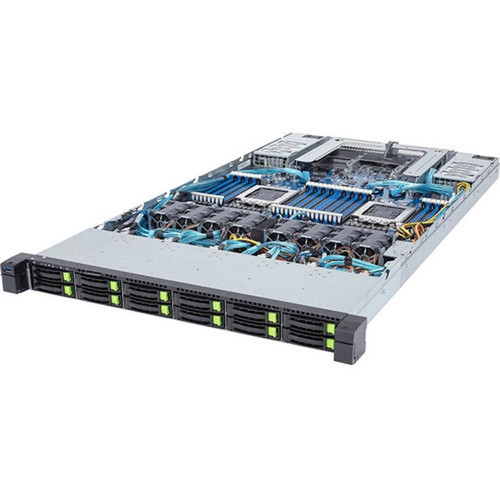

Gigabyte R182-P91 2U Rack-mountable Barebone System - Dual LGA-4926 Socket - Ampere Altra Max - 4TB DDR4-3200 - 12 Bays - 2 x 1. 3kW PSUs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system delivers a robust foundation for custom server builds, featuring dual LGA-4926 sockets that accommodate Ampere Altra Max processors for efficient 64-bit computing. The memory subsystem supports DDR4-3200/PC4-25600 modules, enabling high bandwidth for data-intensive applications. Storage connectivity is handled by a Serial ATA controller, with expansion flexibility provided through two PCIe x16 slots and two legacy PCI slots.
Network communication is managed by integrated Gigabit Ethernet, while system management and basic graphics are supported by an AST2600 controller. The operating system compatibility list includes multiple enterprise Linux distributions such as Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Fedora Server, Oracle Linux, and Debian, ensuring broad software support for diverse IT environments.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The R182-P91 stands out with its exceptional memory scalability and dual-processor architecture, providing a future-proof base for demanding server configurations. Its 2U form factor balances rack density with serviceability, offering easy access for maintenance and upgrades without sacrificing performance.
High Memory Capacity
With support for up to 4TB of DDR4-3200 memory across 32 slots, this system can handle large datasets and multiple virtual machines efficiently, reducing the need for additional nodes.
- 32 DIMM slots
- DDR4-3200/PC4-25600 standard
- Ideal for virtualization and databases
Redundant Power Design
Dual 1.3kW power supplies with 120V/230V input compatibility ensure continuous operation and protect against power failures in critical deployments.
- Hot-swappable PSUs
- Wide voltage range
- Enhanced uptime for server applications
Enterprise Linux Support
Compatibility with major Linux distributions like RHEL, SLES, Ubuntu, and Debian allows seamless integration into existing IT infrastructures and simplifies software deployment.
- Broad OS compatibility
- Tested with enterprise distributions
- Reduces deployment friction
Deployment / Use Cases
This barebone system is tailored for environments where custom server configurations and high memory capacity are paramount. Its dual-processor support and extensive expansion options make it a versatile choice for IT departments building purpose-built servers.
Typical applications include virtualization hosts running multiple VMs, database servers managing large transactional datasets, and computational nodes in high-performance computing clusters. The 2U rack-mountable design also suits data center deployments where space efficiency and standardized mounting are critical.
Virtualization Host
Leverage the dual CPU sockets and large memory capacity to host numerous virtual machines, consolidating workloads and improving resource utilization in virtualized environments.
Data-Intensive Server
Deploy as a database server or analytics node where fast memory access and storage expansion are needed to process and store large volumes of data efficiently.
Physical Profile
Encased in a 2U rack-mountable chassis, the system measures 1.71 inches (43.5 mm) in height, 17.24 inches (438 mm) in width, and 28.74 inches (730 mm) in depth, fitting standard 19-inch server racks. The compact 2U height optimizes vertical space in rack cabinets, allowing for high-density deployments. The included rail kit facilitates secure mounting and easy slide-out access for maintenance, while the design prioritizes airflow to maintain thermal efficiency under continuous load.
- Width
- 17.24" (438 mm)
- Depth
- 28.74" (730 mm)
- Height
- 2U
What's in the Box
The package includes all essential components to begin assembly and installation in a rack environment.
Highlights
- Dual LGA-4926 sockets support Ampere Altra Max processors for scalable compute performance.
- Up to 4TB of DDR4-3200 memory across 32 DIMM slots handles memory-intensive workloads.
- 2U rack-mountable form factor with included rail kit for easy installation in standard server racks.
- Dual 1.3kW hot-swappable power supplies ensure reliable operation with 120V/230V input compatibility.
- 12 total expansion bays provide flexibility for storage drives and peripheral cards.
- Broad Linux OS support includes RHEL, SLES, Ubuntu, Fedora, Oracle Linux, and Debian.
- Integrated Gigabit Ethernet and three USB 3.2 Gen 1 ports for connectivity and peripheral support.
- Serial ATA controller delivers fast data transfer for storage devices.
- Complies with RoHS and WEEE environmental standards.
- Backed by a 3-year limited warranty for peace of mind.
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R182-P91 |
| Brand Name | GIGABYTE |
| Product Model | R182-P91 |
| Product Name | R182-P91 Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra Max |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Ampere |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of PCI Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64,Red Hat Enterprise Linux 8.5 x64,SUSE Linux Enterprise Server 15 SP2 x64,SUSE Linux Enterprise Server 15 SP3 x64,Ubuntu 18.04.5 LTS x64,Ubuntu 20.04.1 LTS x64,Ubuntu 22.04 LTS x64,Fedora Server 33,Fedora Server 35,Oracle Linux,Debian 10.9,Debian 11.1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.30 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 28.74" (730 mm) |
| Miscellaneous | |
| Package Contents | R182-P91 Barebone System 2 x CPU Heatsinks 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with the Gigabyte R182-P91 barebone system?
The system supports Ampere Altra Max processors using the LGA-4926 socket. It accommodates dual CPUs, enabling high core counts and efficient performance for server workloads such as virtualization and data processing. This compatibility is ideal for environments leveraging ARM-based server architectures.
How much memory can the R182-P91 support and what type is required?
This barebone system supports up to 4TB of DDR4 SDRAM memory. It uses DDR4-3200/PC4-25600 modules across 32 DIMM slots, providing high bandwidth for demanding applications. This extensive memory capacity is suitable for large-scale virtualization, database servers, and other memory-intensive tasks.
What operating systems are supported by this barebone system?
The R182-P91 is compatible with multiple Linux distributions, including Red Hat Enterprise Linux 8.3/8.5, SUSE Linux Enterprise Server 15 SP2/SP3, Ubuntu 18.04.5/20.04.1/22.04 LTS, Fedora Server 33/35, Oracle Linux, and Debian 10.9/11.1. It does not support Windows, focusing on enterprise and open-source server environments.
What expansion options are available in the R182-P91 chassis?
The chassis offers 12 total expansion bays for storage or other peripherals, along with two PCIe x16 slots and two legacy PCI slots for add-in cards. This flexibility allows customization with additional network cards, storage controllers, or GPUs to meet specific server requirements.
What are the power supply specifications and redundancy features?
The system includes two 1.30 kW power supplies that support input voltages of 120V AC and 230V AC. These hot-swappable PSUs provide redundancy, ensuring continuous operation if one unit fails. This design is critical for maintaining uptime in server deployments where power reliability is essential.
Is the R182-P91 environmentally compliant and what warranty is provided?
Yes, the system is environmentally friendly and complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards. It comes with a 3-year limited warranty, covering defects in materials and workmanship to ensure long-term reliability for business use.
