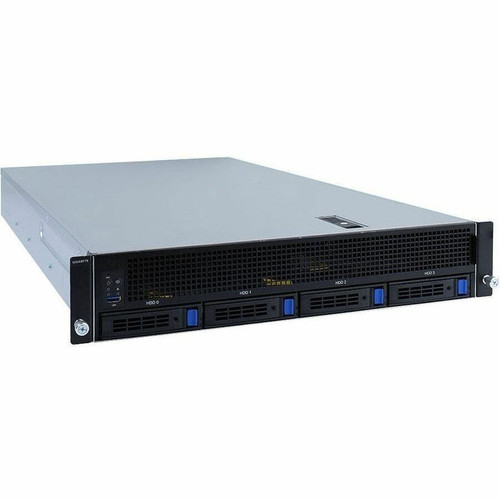

Gigabyte G242-P32 Barebone Server System - 2U Rackmount - Socket LGA-4926256 GB DDR4 - Ampere Altra Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The G242-P32 leverages the Ampere chipset to coordinate communication between the processor, memory, and I/O subsystems. The system includes an ASPEED AST2500 graphics controller with DDR4 SDRAM for out-of-band management and console access, supporting a single VGA output for local display needs.
Expansion capabilities are comprehensive, with five total PCI Express slots (three x8, two x16) and two M.2 interfaces for NVMe storage or network adapters. Four total expansion bays accommodate 3.5" or 2.5" drives, while the dual 1.60 kW power supplies with 120/230 V AC input provide redundant power delivery for continuous uptime.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This barebone system combines enterprise-grade reliability with the flexibility to support a wide range of Linux distributions, making it suitable for both traditional and cloud-native infrastructure. The 2U rackmount form factor optimizes space efficiency in standard server cabinets while providing ample internal room for cooling and cable management.
Broad OS Compatibility
Officially supports Red Hat Enterprise Linux, CentOS, SUSE Linux Enterprise Server, Ubuntu, Fedora Server, Oracle Linux, and Debian across multiple versions, ensuring deployment flexibility in heterogeneous environments.
Scalable Storage Architecture
The 12Gb/s SAS controller delivers high-throughput connectivity for enterprise SSDs and HDDs, while hardware RAID protects data across multiple drive configurations without taxing the main processor.
Management and Serviceability
The rail kit included in the package simplifies installation into standard 19" racks, and the tool-less design of key components streamlines maintenance and upgrades during operational windows.
Deployment / Use Cases
The G242-P32 is ideal for IT departments building custom servers for virtualization hosts, private cloud nodes, database servers, or network appliance platforms. Its support for Ampere Altra processors makes it particularly well-suited for scale-out workloads that benefit from high core counts and consistent performance per watt.
In edge computing scenarios, the system's compact 2U footprint and dual power supplies ensure reliable operation in space-constrained colocation facilities or branch office server rooms. The extensive PCIe expansion allows for adding network cards, GPUs for AI inference, or storage controllers to tailor the system for specific application requirements.
Virtualization Host
Deploy as a VMware ESXi, KVM, or Hyper-V host, leveraging the high memory capacity and multiple PCIe slots for network virtualization and storage passthrough.
Linux Application Server
Run web servers, container orchestration platforms like Kubernetes, or database instances on supported Linux distributions with optimized driver support.
Physical Profile
The server occupies 2U of vertical space in a standard 19" rack, with dimensions of 3.44 inches in height, 17.24 inches in width, and 32.28 inches in depth. The rack-mountable design includes integrated mounting points and a rail kit for secure installation in data center cabinets. The chassis construction supports efficient airflow for cooling high-performance components, with strategically placed vents and fan mounts to maintain optimal operating temperatures under load.
- Width
- 17.24" (438 mm)
- Depth
- 32.28" (820 mm)
- Height
- 2U
What's in the Box
The package includes all necessary components to assemble a functional barebone system, allowing quick integration of customer-supplied processors, memory, and storage.
Highlights
- Supports Ampere Altra and Altra Max processors via Socket LGA-4926 for scalable 64-bit compute
- Accepts up to 256 GB of DDR4-3200 memory to accelerate multitasking and reduce latency
- 12Gb/s SAS and SATA controllers with hardware RAID 0,1,1E,10E for storage performance and redundancy
- Five PCIe expansion slots (3 x8, 2 x16) plus two M.2 interfaces for flexible I/O configuration
- Dual 1.60 kW power supplies with 120/230 V AC input ensure power redundancy and global compatibility
- 2U rackmount form factor optimizes data center density while allowing full component accessibility
- Officially supports multiple Linux distributions including RHEL, CentOS, Ubuntu, and SUSE
- Includes rail kit and CPU heatsink for straightforward installation into standard server racks
- Gigabit Ethernet provides reliable network connectivity for enterprise and data center environments
- RoHS and WEEE compliant with a 3-year limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G242P32 |
| Brand Name | GIGABYTE |
| Product Model | G242-P32 |
| Product Name | G293-P32 (rev. 100) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra,Altra Max |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Ampere |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | Serial ATA,12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1E, 10E |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 5 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64,Red Hat Enterprise Linux 8.5 x64,CentOS 8.3 x64,CentOS 8.4 x64,CentOS 8.5 x64,SUSE Linux Enterprise Server 15 SP2 x64,SUSE Linux Enterprise Server 15 SP3 x64,Ubuntu 18.04.5 LTS x64,Ubuntu 20.04.1 LTS x64,Fedora Server 33,Fedora Server 35,Oracle Linux,Debian 10.9,Debian 11.1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 32.28" (820 mm) |
| Miscellaneous | |
| Package Contents | G293-P32 (rev. 100) Barebone System 1 x CPU heatsink 1 x Rail kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with the G242-P32 barebone system?
The system supports Ampere Altra and Altra Max processors using the Socket LGA-4926 interface. These 64-bit ARM-based processors are designed for cloud-native and scale-out workloads, offering high core counts and consistent performance per watt in data center environments.
How much memory can this server support and what type is required?
The G242-P32 supports up to 256 GB of DDR4 SDRAM running at DDR4-3200 (PC4-25600) speeds. This capacity allows for substantial memory allocation to virtual machines, in-memory databases, or caching layers, reducing processor idle time and improving overall system responsiveness.
What storage controllers and RAID levels are available?
The system includes both Serial ATA and 12Gb/s SAS controllers, supporting hardware RAID levels 0, 1, 1E, and 10E. This provides flexibility for configuring striped arrays for performance, mirrored arrays for redundancy, or nested RAID levels for balanced performance and fault tolerance across multiple drives.
What operating systems are officially supported?
Gigabyte validates the G242-P32 for multiple Linux distributions including Red Hat Enterprise Linux 8.3/8.5, CentOS 8.3/8.4/8.5, SUSE Linux Enterprise Server 15 SP2/SP3, Ubuntu 18.04.5/20.04.1 LTS, Fedora Server 33/35, Oracle Linux, and Debian 10.9/11.1. The system does not include a pre-installed OS, allowing administrators to install their preferred distribution.
What expansion slots and bays are included for add-on cards and drives?
The chassis provides five PCI Express slots (three x8, two x16) for network adapters, GPUs, or storage controllers, plus two M.2 interfaces for NVMe storage. Four total expansion bays accommodate 3.5" or 2.5" drives, allowing substantial storage capacity when populated with enterprise SSDs or HDDs.
What power supplies are installed and are they redundant?
The system includes two 1.60 kW power supplies that support 120 V AC and 230 V AC input voltages. This dual-power-supply configuration provides N+1 redundancy, ensuring continuous operation if one power supply fails or needs servicing, which is critical for maintaining uptime in enterprise deployments.
What processor or platform detail is listed?
This product uses the Socket LGA-4926 processor for everyday performance and multitasking.
