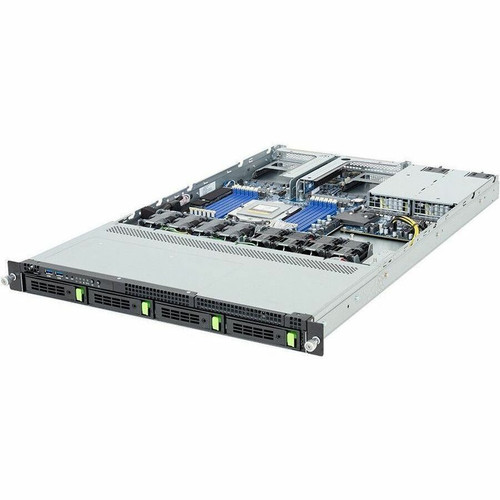

Gigabyte R163-Z34-AAH1 Server Barebone System - 1U Rackmount - Socket SP5 LGA-6096 - AMD EPYC Support - DDR5 - 12 Memory Slots - 4 PCIe x16 - Dual PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

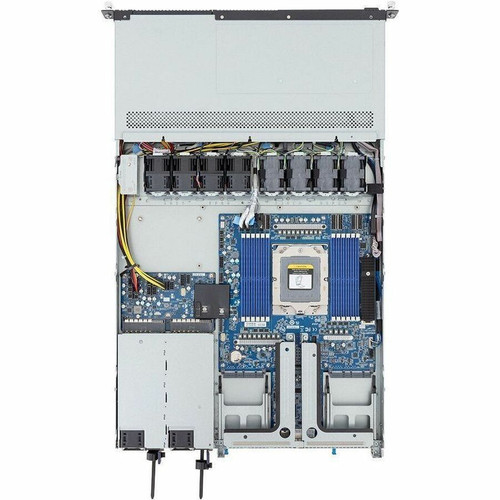

At the heart of the R163-Z34-AAH1 is the Socket SP5 LGA-6096, supporting a single AMD EPYC processor for 64-bit computing performance. The platform incorporates 12 DDR5 SDRAM memory slots, enabling substantial memory configurations to accelerate data-intensive applications and virtualization workloads.
Storage flexibility is provided through Serial ATA/600 and NVMe controllers with hardware RAID support for levels 0, 1, 5, and 10. The system includes four 2.5" drive bays and one M.2 interface, allowing for mixed storage tiering and high-speed boot options.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This server barebone system delivers several distinct advantages for infrastructure deployment. The 1U rackmount design maximizes rack space utilization while providing full server capabilities, making it ideal for high-density computing environments where physical footprint is a critical consideration.
Expansion Flexibility
Four PCI Express x16 slots and comprehensive I/O options support adding specialized cards for networking, storage, or acceleration, allowing the system to adapt to evolving workload requirements.
- 4 PCIe x16 slots
- 4 USB 3.2 Gen 1 ports
- Mini DisplayPort output
Power Resilience
Dual hot-swappable power supplies with 1.30 kW maximum capacity provide redundant power delivery, enhancing system availability and supporting continuous operation in mission-critical scenarios.
- Dual PSU configuration
- 120/230V AC input
- Hot-swap capable
Storage Architecture
Integrated RAID controllers with multiple RAID level support enable data protection and performance optimization for both SATA and NVMe storage devices, simplifying storage management.
- RAID 0, 1, 5, 10
- SATA/600 and NVMe
- 4 x 2.5" bays
Deployment / Use Cases
The R163-Z34-AAH1 server barebone is well-suited for various enterprise and data center applications. Its balanced combination of compute power, memory capacity, and expansion options makes it adaptable to multiple workload profiles within rack-based infrastructure.
In virtualization environments, the system can serve as a host for multiple virtual machines, leveraging the AMD EPYC processor's core count and the substantial memory capacity supported by 12 DDR5 slots. The hardware RAID capabilities ensure data integrity for virtual machine storage while the dual power supplies maintain availability.
Network Appliance Platform
With four PCIe x16 slots, this barebone can accommodate multiple network interface cards for building firewalls, routers, or network monitoring systems that require extensive packet processing capabilities.
Storage Server Foundation
The combination of RAID controllers, multiple drive bays, and high-speed interfaces provides a solid foundation for deploying NAS or SAN solutions where data protection and throughput are priorities.
Physical Profile
Engineered for standard 19-inch rack cabinets, this 1U server barebone measures 1.71 inches (43.50 mm) in height, 17.24 inches (438 mm) in width, and 27.95 inches (710 mm) in depth. The compact vertical profile allows for high-density deployments while maintaining adequate airflow for component cooling. The included 2-section rail kit simplifies installation and service access in rack environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.24" (438 mm), 27.95" (710 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 27.95" (710 mm)
- Height
- 1U
What's in the Box
The package includes all essential components to begin server assembly and deployment.
Highlights
- Supports single AMD EPYC processor via Socket SP5 LGA-6096 for enterprise computing
- 12 DDR5 SDRAM memory slots enable high-capacity memory configurations
- 1U rackmount form factor maximizes rack space efficiency in data centers
- Four PCI Express x16 slots provide extensive expansion capabilities
- Dual hot-swappable power supplies with 1.30 kW maximum capacity
- Hardware RAID support for levels 0, 1, 5, and 10
- Four USB 3.2 Gen 1 ports for peripheral connectivity
- Gigabit Ethernet networking with single RJ-45 port
- Includes rail kit for standard 19-inch rack installation
- 3-year limited warranty with environmental compliance (WEEE, RoHS)
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R163-Z34-AAH1 |
| Brand Name | GIGABYTE |
| Product Series | R |
| Product Model | R163-Z34-AAH1 |
| Product Name | R163-Z34-AAH1 Server Barebone System |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| Processor Manufacturer | AMD |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 12 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5" Bays | 4 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Mini DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.30 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 27.95" (710 mm) |
| Miscellaneous | |
| Package Contents | R163-Z34-AAH1 Server Barebone System 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor socket does this server barebone system use?
The Gigabyte R163-Z34-AAH1 utilizes Socket SP5 LGA-6096, which is designed specifically for AMD EPYC processors. This socket supports a single processor configuration and provides the electrical and mechanical interface required for EPYC CPUs in server applications.
How much memory can this system support?
This barebone system features 12 DDR5 SDRAM memory slots, allowing for substantial memory configurations. The exact maximum capacity depends on the specific memory modules used, but the platform is designed to support enterprise-grade memory densities suitable for virtualization, database, and other memory-intensive workloads.
What storage interfaces are available on this server?
The system includes both Serial ATA/600 and NVMe storage controllers, providing flexibility for different storage technologies. It supports hardware RAID for levels 0, 1, 5, and 10, and includes four 2.5" drive bays plus one M.2 interface for additional storage options.
How many expansion slots does this barebone system have?
There are four PCI Express x16 expansion slots available, allowing for the addition of specialized cards such as network adapters, storage controllers, or accelerator cards. This expansion capability enables customization for specific workload requirements in enterprise environments.
What power supply configuration does this system use?
The R163-Z34-AAH1 includes two installed power supplies with a maximum capacity of 1.30 kW. This dual-PSU configuration provides power redundancy, and the supplies support both 120V and 230V AC input voltages for flexibility in different electrical environments.
What is included in the package with this server barebone?
The package contains the R163-Z34-AAH1 server barebone system, one CPU heatsink for processor cooling, one Mini-DisplayPort to D-Sub cable for video connectivity, and one 2-section rail kit for installation in standard 19-inch rack cabinets. These components provide the essentials for server assembly and deployment.
What processor or platform detail is listed?
This product uses the Socket SP5 LGA-6096 processor for everyday performance and multitasking.
