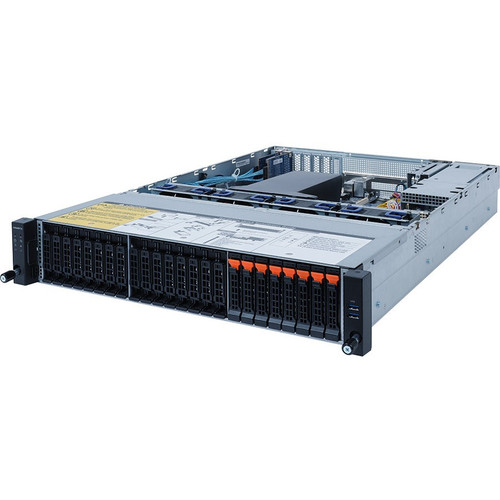

Gigabyte Rev 100 Rackmount Barebone Server Chassis Socket LGA-4926 Single Processor Support DDR4 Ready Rack-mountable Maximum System R272-P33
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- R272-P33 (Rev. 100) Barebone System
- Motherboard: 9MP32AR1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-353109-T1R
- Back plane board: 9CBP20O5NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for CPU: 25HA8-R27234-S5R
- OCP type SATA HBA Card: 9CSTO180NR-00
- 2 x Power supply: 25EP0-208004-L0S
Number of Processors Supported: 1
Processor Socket: Socket LGA-4926
Processor Supported: Altra
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 16
Controller Type: Serial ATA/600
RAID Supported: No
Graphics Controller Model: AST2500
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 8
Total Number of Expansion Slots: 6
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 5
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 5
Number of VGA Ports: 1
Operating System Supported: Red Hat Enterprise Linux 8.3 x64,CentOS 8.3,SUSE Linux Enterprise Server 15 SP2 x64,Ubuntu 18.04 LTS x64,Ubuntu 20.04.1 LTS x64,Fedora 33,FreeBSD 13.0,Oracle Linux,Debian 10.9
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1.20 kW
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.44" (87.50 mm)
Width: 17.24" (438 mm)
Depth: 25.98" (660 mm)
Package Contents:
- Perform computational tasks efficiently with Altra processor for smooth and reliable performance
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Red Hat Enterprise Linux 8.3 x64 OS support provides a powerful platform to efficiently run routine applications without interruptions
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- Connect USB-enabled devices via 5 USB ports for seamless data sharing and reliable performance
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R272-P33 |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Model | R272-P33 (Rev. 100) |
| Product Name | R272-P33 (Rev. 100) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 5 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64,CentOS 8.3,SUSE Linux Enterprise Server 15 SP2 x64,Ubuntu 18.04 LTS x64,Ubuntu 20.04.1 LTS x64,Fedora 33,FreeBSD 13.0,Oracle Linux,Debian 10.9 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.20 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 25.98" (660 mm) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
