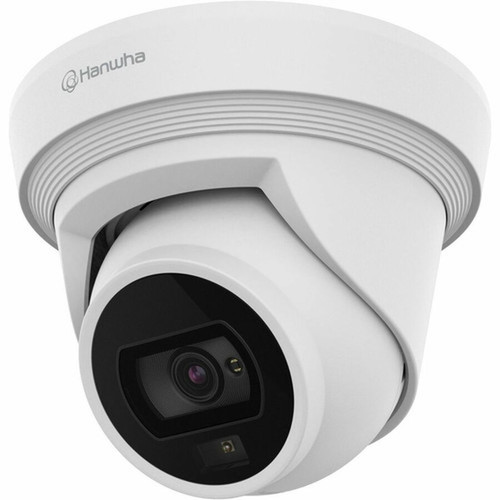

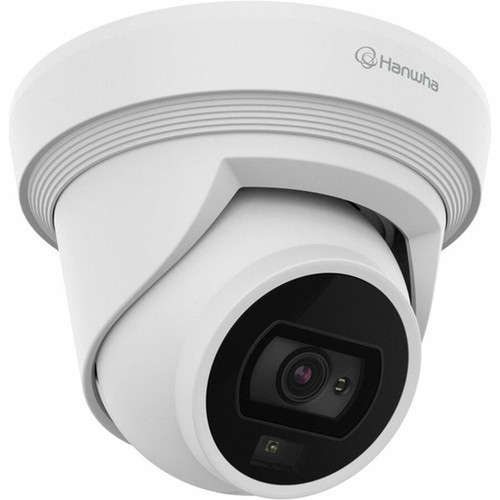

Hanwha QNE-C9013RL 8MP 4K Outdoor Network Camera - Flateye White - Infrared/Color Night Vision to 98. 43 ft - AI-Powered - PoE - IP66/IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera records in H.265, H.264, and MJPEG formats with support for advanced compression profiles including H.265H and H.264M. The fixed iris and adjustable shutter speeds from 1/12000 to 1/5 second provide exposure control for both bright daylight and low-light scenarios.
Network connectivity is handled through Fast Ethernet with comprehensive protocol support including IPv4/IPv6, TCP/IP, RTSP, HTTP/S, and SNMPv1/v2c/v3. Local storage is available via memory card, and the camera supports remote management for configuration and monitoring. Power over Ethernet simplifies installation by delivering both data and power through a single cable.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Advanced Night Vision
Combines infrared and color night vision to deliver usable footage up to 98.43 feet, maintaining visibility in complete darkness while preserving color information when ambient light permits.
- Infrared/Color dual-mode
- 98.43 ft (30 m) range
- Adapts to lighting conditions
AI-Powered Detection
Intelligent analytics distinguish between humans, vehicles, and other objects, reducing false alarms and focusing attention on relevant security events.
- Human detection
- Vehicle detection
- Smart object analysis
Rugged Outdoor Design
IP66/IP67 weatherproof rating and IK10 impact resistance ensure reliable operation in harsh environments, from heavy rain to vandalism attempts.
- IP66/IP67 certified
- IK10 impact rated
- -40°F to 140°F operating range
Deployment / Use Cases
The QNE-C9013RL is engineered for perimeter security, parking lot monitoring, building entrances, and other outdoor areas requiring detailed 4K surveillance. Its wide field of view and high resolution make it effective for covering large areas while maintaining the ability to identify individuals and license plates at distance.
Commercial properties benefit from the camera's PoE installation, which reduces wiring complexity while providing reliable power. The gang box mounting allows for clean integration into existing electrical boxes or surface mounts. Retail environments can leverage the AI detection to monitor customer traffic patterns while manufacturing facilities utilize the rugged construction for monitoring outdoor storage or loading docks in all weather conditions.
Perimeter Security
Monitor fences, gates, and property boundaries with 4K detail and long-range night vision, with AI analytics to distinguish between wildlife, vehicles, and human intruders.
Commercial Entry Points
Cover building entrances, parking lot access, and loading docks with wide-angle views and color-preserving night vision for identification purposes.
Physical Profile
The Flateye form factor measures 5.51" (140 mm) in diameter with a low-profile design that minimizes visual intrusion. Weighing 1.74 lb (790 g), the white housing blends with light-colored building exteriors while the gang box mounting provides secure attachment to standard electrical boxes or flat surfaces. The compact dimensions facilitate installation in spaces with limited clearance while maintaining the full 127° field of view.
- Weight
- 1.74 lb (790 g)
- Length
- 3 mm (0.12")
Highlights
- 8-megapixel 4K resolution (3840 x 2160) for detailed surveillance footage
- Infrared/color night vision with 98.43 ft (30 m) effective range
- AI-powered detection for humans, vehicles, and smart objects
- Power over Ethernet (PoE) for simplified single-cable installation
- IP66/IP67 weatherproof and IK10 impact-resistant construction
- Wide 127° diagonal field of view with fixed 3mm f/1.6 lens
- H.265/H.264 video compression with multiple profile support
- Operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Fast Ethernet connectivity with comprehensive network protocol support
- Gang box mounting for secure, discreet outdoor installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNE-C9013RL |
| Brand Name | Hanwha |
| Product Series | Q |
| Product Model | QNE-C9013RL |
| Product Name | 8MP H.265 IR Flateye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 108°/ V: 59°/ D: 127° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.265H,H.265M,H.264M,H.264H |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3 mm (0.12") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,CDP,SRTP,TCP,UDP,Unicast,MQTT |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Gang Box Mount |
| Form Factor | Flateye |
| Diameter | 5.51" (140 mm) |
| Weight (Approximate) | 1.74 lb (790 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Wide Dynamic Range,Digital Noise Reduction,Motion Detection,Privacy Masking,Gain Control,White Balance,SD Card Local Storage,Vehicle Detection,Smart Object Detection,Human Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
User Manual
FAQ
What is the effective night vision range of this camera?
The Hanwha QNE-C9013RL provides effective night vision up to 98.43 feet (30 meters). It uses a combination of infrared and color night vision technology, switching between modes based on available light to deliver usable footage in complete darkness while preserving color information when ambient light permits.
Does this camera support Power over Ethernet?
Yes, this network camera supports Power over Ethernet (PoE), which allows both data and power to be delivered through a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring near the camera location. The camera has a maximum power consumption of 10 watts.
What video resolutions and formats does this camera record?
This camera records at up to 3840 x 2160 (4K UHD) resolution at 30 frames per second. It supports H.264, H.265, and MJPEG video formats with advanced compression profiles including H.265H, H.265M, H.264M, and H.264H for efficient bandwidth utilization while maintaining video quality.
What type of AI detection capabilities does this camera have?
The camera features AI-powered detection for humans, vehicles, and smart objects. This intelligent analytics capability helps reduce false alarms by distinguishing between different types of motion and focusing attention on relevant security events. The system can trigger alerts based on specific detection types rather than general motion.
Is this camera suitable for outdoor installation in harsh weather?
Yes, with IP66 and IP67 ingress protection ratings, the camera is dust-tight and protected against powerful water jets and temporary immersion. Combined with an IK10 impact resistance rating and operating temperature range from -40°F to 140°F (-40°C to 60°C), it withstands harsh outdoor conditions including heavy rain, snow, and potential vandalism attempts.
What mounting options are available for this camera?
The camera features gang box mounting, allowing it to be installed directly into standard electrical boxes or mounted to flat surfaces. The Flateye form factor with 5.51" diameter provides a low-profile appearance that blends with building exteriors. This mounting method ensures secure attachment while maintaining the camera's 127° diagonal field of view.
