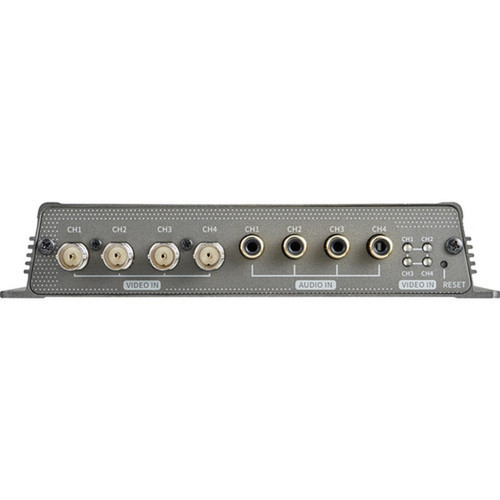

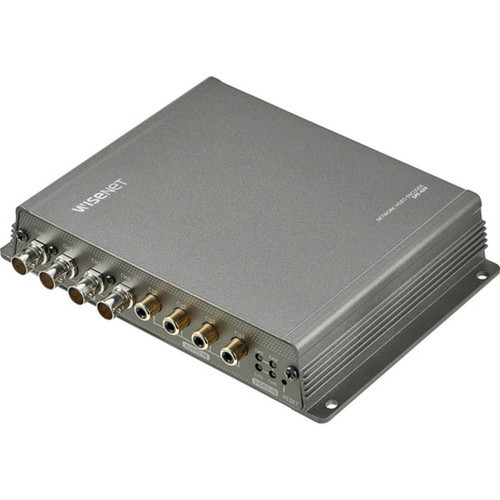

Hanwha Techwin 4CH Video Encoder - Functions: Video Encoding, Video Compression, Video Streaming, Audio Compression - 2560 x 1920 - 30 (SPE-420)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Functions: Video Encoding,Video Compression,Video Streaming,Audio Compression
Video Signal Format: NTSC/PAL,AHD,HDCVI,HD-TVI
Maximum Resolution: 2560 x 1920
Screen Mode Supported: QHD
Maximum Frame Rate: 30 fps
Video Formats: H.265,H.264 AVC,MPEG-4,AVC,MJPEG
Platform Supported: PC,Mac
HDMI: Yes
Audio Line In: Yes
Audio Line Out: Yes
Composite Video: Yes
Network (RJ-45): Yes
Operating System Supported: Windows 10,Mac OS X 10.13 High Sierra
Form Factor: External
Height: 1.34" (34 mm)
Width: 7.01" (178 mm)
Depth: 5.85" (148.70 mm)
Weight (Approximate): 1.15 lb (520 g)
Limited Warranty: 2 Year
- Integrate and convert the analog CCTV video surveillance system to a network video system
- The video encoder function plays a major role in installations wherever several analog cameras is keep up
- Plug and Play your video encoder with the PC and go
- No hassle of internal installation, install externally
[custom-specifications]
| Specifications | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | SPE-420 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Hanwha Techwin |
| Product Model | SPE-420 |
| Product Name | 4CH Video Encoder |
| Product Type | Video Encoder |
| Technical Information | |
| Functions | Video Encoding,Video Compression,Video Streaming,Audio Compression |
| Video Signal Format | NTSC/PAL,AHD,HDCVI,HD-TVI |
| Maximum Resolution | 2560 x 1920 |
| Screen Mode Supported | QHD |
| Maximum Frame Rate | 30 fps |
| Video Formats | H.265,H.264 AVC,MPEG-4,AVC,MJPEG |
| Platform Supported | PC,Mac |
| Interfaces/Ports | |
| HDMI | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Composite Video | Yes |
| Network (RJ-45) | Yes |
| Software | |
| Operating System Supported | Windows 10,Mac OS X 10.13 High Sierra |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1.34" (34 mm) |
| Width | 7.01" (178 mm) |
| Depth | 5.85" (148.70 mm) |
| Weight (Approximate) | 1.15 lb (520 g) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
