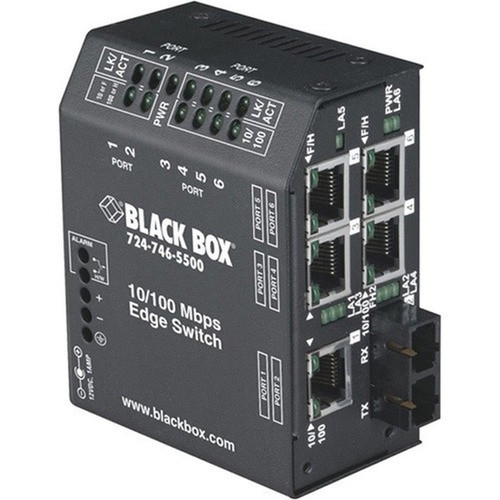

Black Box LBH150A-SC Heavy Duty Edge Switch - 5 RJ45 + 1 SC Multimode Fiber - Fast Ethernet - External/Rack/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver/media converter operates on 850 nm wavelength multimode fiber, supporting distances up to 2 km (1.24 miles) for extended network reach without signal degradation. The integration of 10/100Base-TX and 100Base-X network technologies ensures compatibility with standard Fast Ethernet infrastructures, facilitating smooth data flow between copper and fiber segments.
The device handles both optical fiber and twisted-pair media, making it versatile for mixed-network environments. Its design prioritizes straightforward connectivity and minimal configuration, allowing for quick deployment in scenarios requiring media conversion or network expansion.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The LBH150A-SC edge switch offers distinct advantages for network professionals seeking reliable media conversion and extended connectivity. Its heavy duty construction ensures long-term operation in varied conditions, while the flexible mounting options adapt to space-constrained installations.
Extended Distance Support
Leverage multimode fiber to extend network segments up to 2 km, reducing the need for additional repeaters or switches in long-distance applications.
- 2 km maximum distance
- Minimal signal loss over fiber
- Ideal for campus or industrial layouts
Flexible Deployment
Install externally without internal hardware modifications, choosing from rack, wall, or standalone placement to fit your infrastructure layout.
- Rack-mountable design
- Wall mountable option
- No internal installation required
Media Conversion Efficiency
Convert between copper and fiber media seamlessly, enabling integration of legacy twisted-pair networks with modern fiber backbones for enhanced performance and future-proofing.
- Copper to fiber conversion
- Supports mixed media environments
- Backward compatible with Fast Ethernet
Deployment / Use Cases
This edge switch is ideal for scenarios requiring media conversion or network extension at the edge of infrastructure. It serves as a practical solution for integrating fiber segments into existing copper-based networks, extending reach in environments where direct copper connections are limited by distance or interference.
Common applications include industrial networks, campus buildings, surveillance systems, and remote office connections. The device can be deployed in control rooms, telecom closets, or outdoor enclosures to bridge network segments, support legacy equipment, or prepare for fiber upgrades without overhauling entire systems.
Industrial Network Extension
Extend network connectivity in manufacturing plants or warehouses by converting copper signals to fiber for longer runs across large facilities, ensuring reliable communication between control systems and sensors.
Campus Building Links
Connect separate buildings within a campus using fiber for reduced latency and interference, leveraging the 2 km distance support to span between structures without additional networking hardware.
Physical Profile
The switch features a compact and sturdy design, measuring 3.60" (91.44 mm) in height, 3" (76.20 mm) in width, and 1.70" (43.18 mm) in depth, with an approximate weight of 12.80 oz (362.87 g). This small footprint allows for installation in tight spaces, such as network racks, wall mounts, or enclosures, without consuming excessive room. The external form factor simplifies maintenance and upgrades, as the unit can be easily accessed and repositioned as needed.
- Width
- 3" (76.20 mm)
- Depth
- 1.70" (43.18 mm)
- Height
- 3.60" (91.44 mm)
- Weight
- 12.80 oz (362.87 g)
- Length
- 850 nm
Highlights
- 5 RJ-45 ports and 1 SC multimode fiber port for mixed media connectivity
- Supports Fast Ethernet with data transfer rates up to 100 Mbps
- Multi-mode fiber operation at 850 nm wavelength for up to 2 km distance
- External, rack-mountable, and wall mountable form factor for flexible installation
- Heavy duty construction ensures reliability in demanding environments
- TAA compliant and made in the United States
- 3-year limited warranty for added peace of mind
- Converts between optical fiber and twisted-pair media seamlessly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH150A-SC |
| Brand Name | Black Box |
| Product Series | LBH150 |
| Product Name | Standard Heavy Duty Edge Switch |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 6 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-X |
| Physical Characteristics | |
| Form Factor | External,Rack-mountable,Wall Mountable |
| Height | 3.60" (91.44 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1.70" (43.18 mm) |
| Weight (Approximate) | 12.80 oz (362.87 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of media does this edge switch support?
The Black Box LBH150A-SC supports both optical fiber and twisted-pair media. It includes five RJ-45 ports for copper connections and one SC port for multimode fiber, allowing it to bridge different network media types for flexible integration.
What is the maximum distance supported by the fiber port?
The fiber port supports distances up to 2 km (1.24 miles) when using multimode fiber at 850 nm wavelength. This extended reach is ideal for long-distance network segments without signal degradation.
What Ethernet technology does this switch use?
This switch uses Fast Ethernet technology, supporting network standards of 10/100Base-TX and 100Base-X. It provides data transfer rates up to 100 Mbps, suitable for standard network applications requiring reliable performance.
How can this switch be mounted or installed?
The switch features an external form factor that is rack-mountable, wall mountable, or can be used as a standalone unit. It does not require internal installation, making deployment quick and adaptable to various infrastructure layouts.
Is this product TAA compliant?
Yes, the Black Box LBH150A-SC is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement in government and institutional settings, ensuring it is manufactured in approved countries like the United States.
What warranty is included with this edge switch?
This edge switch comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability and peace of mind for network deployments.
