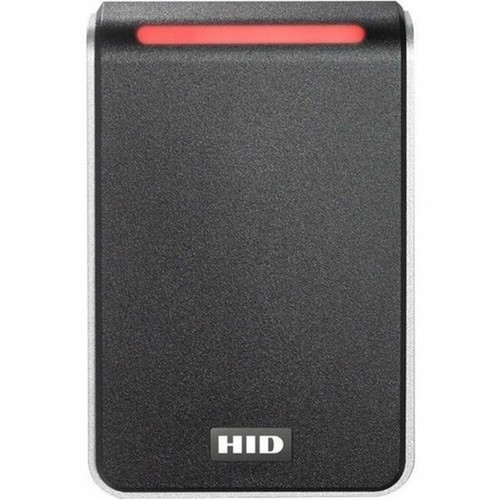

HID 40HTKS-03-00059X Signo 40 Proximity Card Reader - Black/Silver - IP65 - Indoor/Outdoor - Bluetooth - 3. 94" Range - Gang Box Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Signo 40 operates on proximity technology with a 3.94-inch (100 mm) read range, ensuring consistent card detection without physical contact. Wired connectivity provides stable communication with access control systems, while integrated Bluetooth support enables modern wireless configuration and management capabilities.
This reader accepts 12 V DC input power and supports multiple interface protocols including Serial and Wiegand for compatibility with diverse access control panels and systems. The IP65 rating confirms protection against dust ingress and low-pressure water jets from any direction, making it suitable for both indoor and outdoor installations.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HID Signo 40 combines proven proximity technology with modern features to deliver a balanced security solution that addresses both reliability and installation flexibility requirements.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Dual-Environment Design, Protocol Flexibility.
Dual-Environment Design
With IP65 protection and gang box mounting, this reader performs reliably in both indoor corridors and outdoor entry points exposed to weather elements.
- IP65 dust and water resistance
- Gang box mounting for standard installations
- Black/silver finish for aesthetic integration
Protocol Flexibility
Multiple interface options ensure compatibility with existing and new access control infrastructures across different manufacturers and system generations.
- Serial interface support
- Wiegand protocol compatibility
- Bluetooth for wireless management
Deployment / Use Cases
The Signo 40 proximity card reader serves as a versatile access control component for various security scenarios where reliable authentication and environmental durability are essential.
In commercial office buildings, it provides secure entry to main lobbies, parking garages, and restricted areas. For educational facilities, the reader controls access to dormitories, laboratories, and administrative offices. Industrial applications include gate control at manufacturing plants, warehouse entry points, and equipment rooms where dust and moisture resistance are critical.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Entry Control
Deploy at building exteriors, parking gates, and perimeter doors where weather exposure requires IP65 protection and consistent read performance.
Retrofit Installations
Replace older readers in existing gang boxes without modifying infrastructure, maintaining system continuity while upgrading to modern proximity technology.
Physical Profile
Measuring 4.78" (121.41 mm) in height, 3.15" (80.01 mm) in width, and 0.77" (19.56 mm) in depth, the Signo 40 presents a compact form factor that fits standard electrical gang boxes. At approximately 4.23 ounces (119.92 grams), its lightweight construction simplifies handling during installation while maintaining structural integrity. The black and silver dual-color finish provides visual distinction that complements both modern and traditional architectural aesthetics.
- Width
- 3.15" (80.01 mm)
- Depth
- 0.77" (19.56 mm)
- Height
- 4.78" (121.41 mm)
- Weight
- 4.23 oz (119.92 g)
Highlights
- Proximity technology with 3.94" (100 mm) operating range
- IP65 rating for dust and water resistance in indoor/outdoor use
- Gang box mounting for standard electrical box installation
- Black and silver dual-color finish for aesthetic integration
- Bluetooth enabled for wireless configuration and management
- Serial and Wiegand interface support for system compatibility
- 12 V DC input voltage for power flexibility
- Lifetime limited warranty for long-term reliability
- Environmentally friendly with GreenCircle certification and RoHS compliance
- Compact dimensions: 4.78" H × 3.15" W × 0.77" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 40HTKS-03-00059X |
| Brand Name | HID |
| Product Line | Signo |
| Product Model | 40 |
| Product Name | Signo 40 Card Reader Access Device |
| Product Type | Card Reader Access Device |
| Technical Information | |
| Identification Method | Proximity |
| Operating Range | 3.94" (100 mm) |
| Application/Usage | Outdoor,Indoor |
| Ingress Protection (IP) Rating | IP65 |
| Connectivity Technology | Wired |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Serial | Yes |
| Wiegand | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Gang Box Mount |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Height | 4.78" (121.41 mm) |
| Width | 3.15" (80.01 mm) |
| Depth | 0.77" (19.56 mm) |
| Weight (Approximate) | 4.23 oz (119.92 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenCircle |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of access control technology does the HID Signo 40 use?
The HID Signo 40 utilizes proximity technology for contactless card reading. This method allows authorized cards or credentials to be detected from up to 3.94 inches (100 mm) away without physical contact, providing convenient access while maintaining security through encrypted communication between the card and reader.
Can this card reader be installed outdoors?
Yes, the Signo 40 is designed for both indoor and outdoor installations. Its IP65 ingress protection rating ensures resistance against dust ingress and low-pressure water jets from any direction, making it suitable for exterior doors, gates, and other outdoor access points exposed to weather conditions.
What mounting options are available for this reader?
This reader features gang box mounting, which allows installation in standard electrical boxes commonly used in commercial and institutional buildings. This mounting method simplifies both new construction installations and retrofit replacements of existing readers without requiring specialized mounting hardware or significant structural modifications.
Does the Signo 40 support wireless connectivity?
Yes, the Signo 40 includes Bluetooth capability alongside its wired connectivity. This enables wireless configuration, management, and monitoring through compatible devices, providing installation flexibility and modern management options while maintaining the reliability of wired communication for daily access control operations.
What interface protocols does this reader support?
The Signo 40 supports both Serial and Wiegand interface protocols, ensuring compatibility with a wide range of access control systems and panels from various manufacturers. This protocol flexibility allows integration into existing security infrastructures as well as new installations without requiring specific system matching.
What power requirements does this card reader have?
The Signo 40 operates on 12 V DC input voltage, which is standard for many access control systems. This voltage compatibility ensures straightforward integration with existing power supplies and access control panels, minimizing the need for additional power conversion equipment during installation.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
