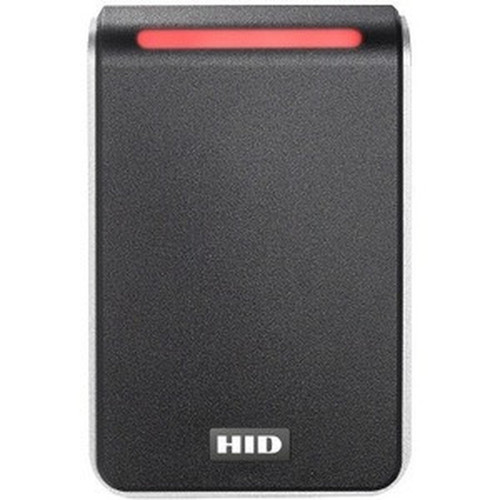

HID 40NKS-00-0002BR Signo 40 Proximity Card Reader - Black/Silver - IP65 - Bluetooth - 12V DC - Indoor/Outdoor Door Access Device
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This card reader operates on 12V DC power and offers multiple interface options including Serial and Wiegand outputs for flexible integration with access control panels. Bluetooth capability enables support for mobile credentials powered by Seos, allowing users to authenticate via smartphones or other Bluetooth-enabled devices.
The proximity technology provides a consistent 3.94-inch read range, ensuring smooth card presentation without physical contact. Environmental compliance includes RoHS certification, confirming the device meets hazardous substance restrictions for responsible deployment.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Signo 40 combines robust security features with practical installation benefits. Its broad compatibility with multiple credential formats reduces system complexity while maintaining high authentication standards across diverse user environments.
Multi-Format Credential Support
This reader works with HID Proximity, iCLASS SE, iCLASS SR, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, CEPAS, Indala Proximity, AWID Proximity, and EM Proximity credentials, providing exceptional flexibility for mixed-credential deployments.
- Seos mobile credential compatibility
- Legacy proximity card support
- Smart card technology integration
Environmental Durability
IP65 certification ensures reliable operation in environments exposed to dust and water jets, making this reader appropriate for exterior doors, industrial settings, and other demanding locations.
- Dust-tight construction
- Water jet protection
- Extended service life
Deployment / Use Cases
The Signo 40 Proximity Card Reader serves as a versatile access control solution for commercial, institutional, and industrial security applications. Its indoor/outdoor rating and multiple mounting options make it ideal for main entrances, parking gates, server rooms, and restricted areas requiring controlled access.
Organizations transitioning to mobile credentials can deploy this reader alongside traditional card systems, maintaining backward compatibility while introducing modern authentication methods. The lifetime warranty provides long-term value for permanent installations where reliability and reduced maintenance are critical.
Commercial Building Access
Secure office lobbies, employee entrances, and restricted floors with consistent proximity authentication that integrates with existing access control infrastructure.
Industrial & Outdoor Security
Protect perimeter gates, equipment rooms, and outdoor facilities with IP65-rated construction that withstands environmental exposure while maintaining authentication accuracy.
Physical Profile
Measuring 4.78 inches in height, 3.15 inches in width, and 0.77 inches in depth, the Signo 40 presents a slim profile that mounts discreetly on door frames and walls. The 140-gram weight minimizes structural load while the black and silver finish offers professional aesthetics that blend with various architectural styles.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.78" (121.50 mm), 3.15" (80 mm), 0.77" (19.50 mm), 140 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.15" (80 mm)
- Depth
- 0.77" (19.50 mm)
- Height
- 4.78" (121.50 mm)
- Weight
- 140 g
Highlights
- Proximity card reader with 3.94-inch operating range for contactless authentication
- IP65 rating for dust and water resistance in indoor/outdoor installations
- Bluetooth support enables mobile credentials via HID Mobile Access with Seos
- Compatible with multiple credential formats including iCLASS, MIFARE, and legacy proximity
- 12V DC power input with Serial and Wiegand interface options
- Compact dimensions (4.78" x 3.15" x 0.77") and 140g weight for easy installation
- RoHS compliant construction with environmentally friendly materials
- Lifetime limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 40NKS-00-0002BR |
| Brand Name | HID |
| Product Line | Signo |
| Product Model | 40 |
| Product Name | Signo 40 Card Reader Access Device |
| Product Type | Card Reader Access Device |
| Technical Information | |
| Identification Method | Proximity |
| Operating Range | 3.94" (100 mm) |
| Application/Usage | Door,Indoor,Outdoor |
| Ingress Protection (IP) Rating | IP65 |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Serial | Yes |
| Wiegand | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 4.78" (121.50 mm) |
| Width | 3.15" (80 mm) |
| Depth | 0.77" (19.50 mm) |
| Weight (Approximate) | 140 g |
| Miscellaneous | |
| Compatibility | Mobile Credentials powered by Seos® (HID Mobile Access) Seos iCLASS SE iCLASS SR iCLASS MIFARE Classic MIFARE DESFire EV1/EV2 FeliCa Contactless e-Purse Application Specification (CEPAS) Mobile Credentials powered by Seos (HID Mobile Access) HID Proximity Indala Proximity AWID Proximity EM Proximity |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of credentials work with the HID Signo 40 reader?
The Signo 40 supports multiple credential technologies including HID Proximity, iCLASS SE, iCLASS SR, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, CEPAS, Indala Proximity, AWID Proximity, and EM Proximity. It also works with mobile credentials powered by Seos via Bluetooth, allowing authentication through smartphones and other Bluetooth-enabled devices.
Can this card reader be installed outdoors?
Yes, the Signo 40 carries an IP65 ingress protection rating, meaning it is dust-tight and protected against water jets from any direction. This makes it suitable for outdoor door installations, perimeter gates, and other exterior applications where environmental exposure is a concern.
What power supply does the Signo 40 require?
This reader operates on 12V DC power. You'll need to provide a compatible 12V DC power source, typically through an access control power supply or transformer, to ensure proper operation. The low voltage requirement supports safe installation in various environments.
Does this reader support mobile access credentials?
Yes, the Signo 40 includes Bluetooth capability specifically for mobile credentials powered by Seos (HID Mobile Access). This allows users to authenticate using smartphones, tablets, or other Bluetooth-enabled devices instead of physical cards, providing flexibility for modern access control systems.
What interfaces are available for connecting to access control systems?
The reader offers both Serial and Wiegand interface options. These standard interfaces allow integration with most access control panels and systems. The Wiegand interface is particularly common in access control installations, while Serial provides additional connectivity flexibility for specialized applications.
What warranty coverage comes with the HID Signo 40 reader?
HID provides a lifetime limited warranty for the Signo 40 Proximity Card Reader. This warranty covers defects in materials and workmanship for the life of the product when used under normal conditions and according to manufacturer specifications, offering long-term confidence for permanent installations.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
