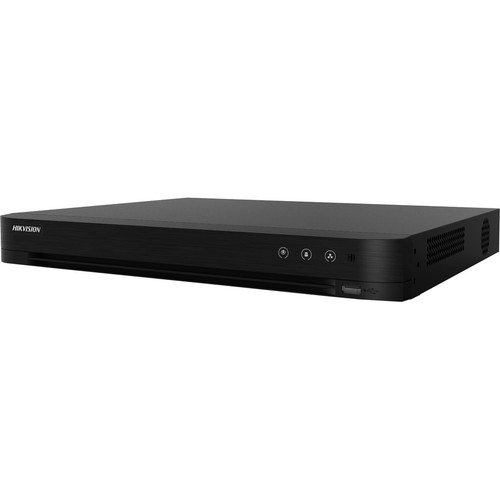

Hikvision IDS-7216HQHI-M2/S 16-Channel 1080p 4MP AcuSense DVR with H. 265+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DVR operates as a wired surveillance station with 16 channels, each capable of handling 1080p video at 30 frames per second. The maximum recording resolution of 4MP ensures high-definition clarity for critical areas. Video compression leverages H.265 Pro+ technology, which reduces bandwidth and storage requirements by up to 50% compared to standard H.264, making it ideal for extended recording periods.
Network connectivity is provided through a built-in Ethernet port, enabling remote access and management via Hikvision's software or mobile apps. The unit includes one USB port for quick data transfer, firmware updates, or peripheral connections. Audio support features one input and one output port for integrating microphones or speakers, adding an auditory layer to surveillance monitoring.
Video Format Flexibility
Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 codecs, ensuring seamless compatibility with both new and existing camera systems.
Key Product Advantages
The AcuSense DVR combines high channel capacity with intelligent video analytics to deliver a robust surveillance solution. Its 16-channel design accommodates growing camera networks, while 4MP resolution captures fine details essential for identification and evidence. The 1U rackmount form factor saves space in server rooms or network closets, and the lightweight 2 kg build simplifies installation.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
This DVR is tailored for small-to-mid-range surveillance environments where reliable recording and easy management are priorities. It suits retail stores, office buildings, warehouses, and educational facilities that require multi-camera coverage without complex infrastructure. The 16-channel capacity handles entry/exit points, hallways, parking lots, and interior spaces, providing comprehensive monitoring.
In retail settings, the DVR can integrate with POS systems and loss prevention protocols. For office security, it supports after-hours monitoring and access control verification. The rackmount design makes it a fit for centralized security rooms, while remote access allows security personnel to review footage or adjust settings from mobile devices. Its compatibility with NTSC and PAL signals ensures global deployment flexibility.
Small Business Surveillance
Ideal for shops, restaurants, or small offices needing up to 16 cameras with high-definition recording and remote oversight.
Expansion-Ready Infrastructure
Supports gradual camera additions as security needs grow, leveraging existing wiring and network setups.
Physical Profile
The DVR features a compact 1U rackmount chassis measuring 1.89" (48 mm) in height, 14.96" (380 mm) in width, and 12.60" (320 mm) in depth. This slim profile conserves rack space in server cabinets or network enclosures. Weighing approximately 2 kg, the unit is lightweight for easy handling during installation. The front panel includes status indicators and USB access, while rear ports provide comprehensive connectivity for cameras, monitors, and network cables.
- Width
- 14.96" (380 mm)
- Depth
- 12.60" (320 mm)
- Height
- 1.89" (48 mm)
- Weight
- 2 kg
Highlights
- 16-channel capacity for small-to-mid-range surveillance systems
- 4MP maximum recording resolution with 1080p support
- H.265 Pro+ video compression for efficient storage usage
- AcuSense technology reduces false alarms by analyzing targets
- HDMI and VGA outputs for flexible monitor connections
- Ethernet-enabled for remote management and network access
- 1U rackmount design saves space in server installations
- Supports NTSC and PAL video signal formats globally
- Includes one USB port for data transfer and updates
- Audio input and output ports for integrated sound monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | IDS-7216HQHI-M2/S |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Series | iDS-7200HQHI-M2/S |
| Product Model | iDS-7216HQHI-M2/S |
| Product Name | 16-Channel 1080p 1U H.265 AcuSense DVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Video | |
| Video Formats | H.265 Pro+,H.265 Pro,H.265,H.264+,H.264 |
| Video Signal Format | NTSC,PAL |
| Maximum Resolution | 4MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 1.89" (48 mm) |
| Width | 14.96" (380 mm) |
| Depth | 12.60" (320 mm) |
| Weight (Approximate) | 2 kg |
User Manual
FAQ
How many cameras can this DVR support?
The Hikvision IDS-7216HQHI-M2/S supports up to 16 cameras, making it suitable for small-to-mid-range surveillance deployments such as retail stores, offices, or warehouses. Each channel can handle 1080p video at 30 fps, with a maximum resolution of 4MP per channel for detailed footage.
What video compression formats does this DVR use?
This DVR uses H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression formats. H.265 Pro+ offers advanced efficiency, reducing bandwidth and storage needs by up to 50% compared to standard H.264, while maintaining high video quality for longer recording periods.
Can I monitor this DVR remotely?
Yes, the DVR includes Ethernet connectivity and remote management capabilities. You can access live feeds, playback recordings, and configure settings remotely using Hikvision's software or mobile apps from any network-connected device, providing flexible oversight for security personnel.
What outputs are available for connecting monitors?
The DVR provides both HDMI and VGA outputs, allowing connection to modern HDMI displays or legacy VGA monitors. It also includes composite video in and out ports for integrating with older analog systems, offering versatile display options for different monitoring setups.
Is this DVR rackmountable?
Yes, this DVR has a 1U rackmount form factor with dimensions of 1.89" (48 mm) height, 14.96" (380 mm) width, and 12.60" (320 mm) depth. It is designed to fit standard server racks, conserving space in security rooms or network closets, and weighs approximately 2 kg for easy installation.
What is AcuSense technology?
AcuSense is Hikvision's intelligent video analytics technology that reduces false alarms by distinguishing between human and vehicle targets versus other motion like animals or foliage. This enhances surveillance accuracy, ensuring security alerts are more relevant and actionable for operators.
What display size or resolution is listed?
It features a display specification of 4MP, giving you clear visuals for work and media use.
