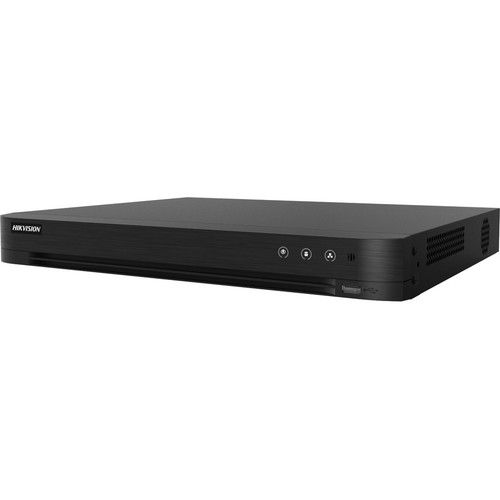

Hikvision IDS-7216HQHI-M2/S-2TB 16-Channel 1080p 1U H. 265 AcuSense DVR with 2 TB HDD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DVR features comprehensive connectivity options including Ethernet for network integration, USB ports for peripheral connections, and multiple video output interfaces. The unit provides one HDMI port and one VGA port for simultaneous display output, along with composite video input and output ports for legacy camera compatibility. Audio connectivity includes one audio input and one audio output port for integrated surveillance audio systems.
Remote management capabilities allow administrators to monitor and control the system from computers, tablets, smartphones, or other mobile devices. The wired connectivity technology ensures stable and reliable network performance for surveillance operations. The system supports HD recording with advanced video compression technologies that maximize storage efficiency while maintaining image quality.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AcuSense technology represents a significant advancement in surveillance systems by intelligently distinguishing between relevant security events and irrelevant motion. This reduces false alarms and improves operational efficiency for security personnel. The 16-channel capacity provides scalability for growing surveillance needs while the pre-installed 2 TB hard drive eliminates initial storage configuration requirements.
Advanced Video Compression
H.265 Pro+ and H.265 Pro formats deliver superior compression efficiency compared to traditional H.264, allowing for longer retention periods on the same storage capacity while maintaining high image quality.
- Reduces storage requirements by up to 50%
- Maintains 4MP resolution at 30 fps
- Supports multiple compression standards
Comprehensive Connectivity
Dual video outputs (HDMI and VGA) enable simultaneous monitoring on different displays, while Ethernet and USB ports provide flexible integration with networks and peripheral devices.
- HDMI for modern displays
- VGA for legacy monitors
- Ethernet for network connectivity
Deployment / Use Cases
This 16-channel DVR is ideally suited for small-to-medium business environments requiring comprehensive surveillance coverage. Retail stores, office buildings, warehouses, and educational facilities can benefit from the 16-camera capacity and 4MP recording resolution. The 1U rackmount form factor makes it suitable for IT closet or server room installations where space optimization is important.
The system supports remote monitoring capabilities that enable security personnel to view live feeds and review recordings from any location with network access. This makes it particularly valuable for multi-site operations where centralized monitoring is required. The combination of modern HDMI outputs and legacy VGA/composite connections ensures compatibility with existing display infrastructure during phased upgrades.
Retail Security
Monitor sales floors, stock rooms, and entry points with 16 camera channels, using the AcuSense technology to focus on genuine security events rather than routine customer movement.
Office Building Surveillance
Deploy in server rooms or IT closets using the 1U rackmount design, with remote access enabling security teams to monitor common areas, parking lots, and building perimeters from centralized locations.
Physical Profile
The DVR features a compact 1U rackmount design measuring 1.89 inches in height, 14.96 inches in width, and 12.60 inches in depth (48 mm x 380 mm x 320 mm). With a weight of 2 kg, it integrates easily into standard server racks without requiring excessive space or specialized mounting hardware. The form factor is optimized for data center and IT closet environments where rack space is at a premium.
- Width
- 14.96" (380 mm)
- Depth
- 12.60" (320 mm)
- Height
- 1.89" (48 mm)
- Weight
- 2 kg
Highlights
- 16-channel capacity for small-to-mid-range surveillance deployments
- Pre-installed 2 TB hard drive provides immediate storage capacity
- 4MP maximum resolution at 30 frames per second for detailed video
- H.265 Pro+ and H.265 Pro video compression for efficient storage
- AcuSense technology reduces false alarms through intelligent analytics
- HDMI and VGA outputs for simultaneous display connectivity
- Ethernet and USB ports for network and peripheral integration
- Remote management from computers, tablets, and mobile devices
- 1U rackmount form factor for space-efficient installation
- Supports both NTSC and PAL video signal formats
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | IDS-7216HQHI-M2/S-2TB |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Series | iDS-7200HQHI-M2/S |
| Product Model | IDS-7216HQHI-M2/S |
| Product Name | 16-Channel 1080p 1U H.265 AcuSense DVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Storage | |
| Hard Drive Capacity | 2 TB |
| Video | |
| Video Formats | H.265 Pro+,H.265 Pro,H.265,H.264+,H.264,H.265+ |
| Video Signal Format | NTSC,PAL |
| Maximum Resolution | 4MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 1.89" (48 mm) |
| Width | 14.96" (380 mm) |
| Depth | 12.60" (320 mm) |
| DVR Weight | 2 kg |
| Miscellaneous | |
| Country of Origin | China |
User Manual
FAQ
How many cameras can this DVR support simultaneously?
The Hikvision IDS-7216HQHI-M2/S-2TB supports up to 16 cameras simultaneously. This channel capacity makes it suitable for small-to-medium business environments requiring comprehensive coverage of entry points, common areas, and perimeter security. Each channel can record at up to 4MP resolution at 30 frames per second.
What storage capacity comes pre-installed in this DVR?
This DVR comes with a 2 TB hard drive pre-installed. This provides immediate storage capacity for video recording without requiring additional hardware installation. The H.265 compression technology maximizes storage efficiency, allowing for extended retention periods compared to older compression standards.
What video resolutions does this DVR support?
The DVR supports recording at up to 4MP resolution, which provides detailed video footage for security monitoring. It maintains 30 frames per second at this resolution, ensuring smooth video playback. The system also supports 1080p recording and is compatible with cameras using both NTSC and PAL signal formats.
What connectivity options are available on this DVR?
Connectivity includes Ethernet for network integration, USB ports for peripheral devices, HDMI and VGA outputs for display connections, composite video input and output ports, and audio input/output ports. This comprehensive connectivity suite supports both modern and legacy surveillance equipment while enabling remote management capabilities.
What is AcuSense technology and how does it benefit surveillance?
AcuSense is Hikvision's intelligent video analytics technology that distinguishes between relevant security events (like human or vehicle movement) and irrelevant motion (such as leaves blowing or shadows). This significantly reduces false alarms, allowing security personnel to focus on genuine threats and improving overall surveillance system efficiency.
Can this DVR be accessed remotely for monitoring?
Yes, the DVR supports remote management capabilities that allow authorized users to access live feeds, review recordings, and configure settings from computers, tablets, smartphones, or other mobile devices with network connectivity. This enables security teams to monitor facilities from any location with internet access.
What storage is included?
The system includes 2 TB of storage for applications, files, and everyday business data.
