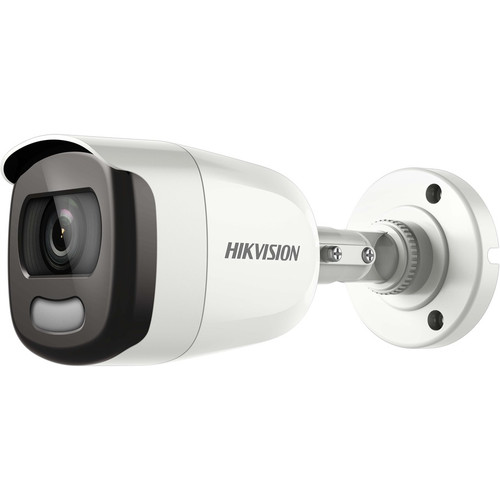

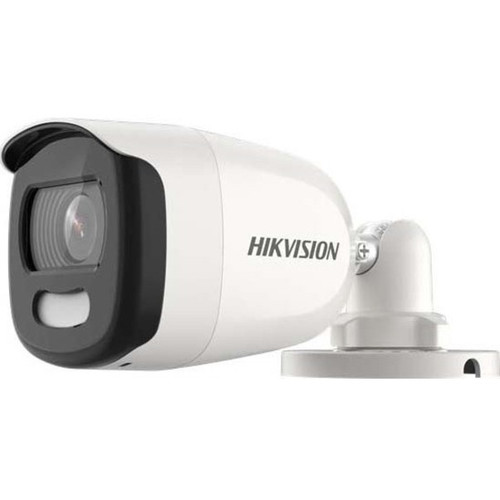

Hikvision DS-2CE10DFT-F28 2. 8MM ColorVu 2MP Mini Bullet Camera - 1080p - 2. 8mm Fixed Lens - 65. 62 ft Night Vision - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 2-megapixel CMOS sensor that captures video at a maximum resolution of 1920 x 1080, supporting both NTSC and PAL video signal formats for global compatibility. The fixed 2.8mm lens provides a consistent field of view, optimized for general surveillance applications without the need for manual adjustments. Advanced imaging technologies include 130 dB true Wide Dynamic Range (WDR) to handle challenging lighting conditions and 3D Digital Noise Reduction (DNR) for cleaner, sharper images.
The wired connectivity ensures stable data transmission, while the junction box mount facilitates secure installation on walls or ceilings. Physical dimensions measure 2.76" (70 mm) in height, 2.68" (68 mm) in width, and 7.14" (181.40 mm) in length, with an approximate weight of 390 grams, making it lightweight yet durable for various mounting scenarios.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Hikvision ColorVu camera stands out with its ability to deliver 24/7 full-color imaging, eliminating the grayscale limitations of traditional night vision. This is achieved through a combination of the ColorVu sensor and warm supplemental lighting, which enhances visibility without being intrusive. The camera's 130 dB true WDR technology ensures clear imaging against strong backlighting, such as from windows or bright lights, reducing glare and improving detail capture.
Enhanced Low-Light Performance
ColorVu technology maintains color fidelity in dim environments, supported by a 20-meter range warm light for consistent illumination.
- Full-color imaging day and night
- Reduced noise with 3D DNR
- Automatic white balance for accurate colors
Durability and Flexibility
IP67 rating protects against water and dust, while 4-in-1 signal compatibility allows integration with multiple video formats.
- Suitable for outdoor use
- Works with TVI, AHD, CVI, and CVBS systems
- Compact design for discreet placement
Deployment / Use Cases
This mini bullet camera is ideal for scenarios requiring reliable, high-definition surveillance with minimal maintenance. Its fixed lens and consistent performance make it well-suited for monitoring entry points, parking lots, or retail aisles where a stable field of view is essential. The IP67 durability allows deployment in outdoor areas like building perimeters or covered walkways, resisting weather elements to ensure uninterrupted operation.
In commercial settings, the camera can be used for loss prevention, employee monitoring, or customer traffic analysis, leveraging its 1080p resolution for clear identification. For residential applications, it provides security for homes, garages, or driveways, with the warm supplemental light offering a deterrent effect. The junction box mount enables easy installation on various surfaces, supporting both new installations and upgrades to existing security infrastructures.
Physical Profile
The camera's mini bullet form factor measures 2.76" in height, 2.68" in width, and 7.14" in length, with a weight of approximately 390 grams. This compact size allows for unobtrusive placement while maintaining a robust build. The junction box mount provides a secure attachment point, and the IP67 rating ensures resistance to water and dust, making it suitable for indoor or outdoor environments where exposure to elements is a concern.
- Width
- 2.68" (68 mm)
- Height
- 2.76" (70 mm)
- Weight
- 390 g
- Length
- 2.8 mm
Highlights
- 2MP resolution for clear 1080p video footage
- Full-time color imaging with ColorVu technology
- 2.8mm fixed lens for consistent field of view
- 65.62 ft night vision range with warm supplemental light
- 130 dB true WDR for handling backlighting
- 3D DNR technology reduces noise for sharper images
- IP67 rated for water and dust resistance
- 4-in-1 signal compatibility (TVI/AHD/CVI/CVBS)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE10DFT-F28 2.8MM |
| Brand Name | Hikvision |
| Product Line | ColorVu |
| Product Model | DS-2CE10DFT-F28 |
| Product Name | 2 MP ColorVu Fixed Mini Bullet Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Junction Box Mount |
| Form Factor | Mini Bullet |
| Durability | Water Resistant,Dust Resistant |
| Height | 2.76" (70 mm) |
| Width | 2.68" (68 mm) |
| Length | 7.14" (181.40 mm) |
| Weight (Approximate) | 390 g |
| Miscellaneous | |
| Features | Wide Dynamic Range,3D Digital Noise Reduction,Day/Night,Automatic White Balance |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The camera has a 2-megapixel effective resolution, delivering maximum video quality at 1920 x 1080 (1080p). This ensures high-definition footage suitable for detailed surveillance and identification purposes in various monitoring scenarios.
How does the night vision perform on this model?
Night vision extends up to 65.62 feet (20 meters) using warm supplemental lighting. Combined with ColorVu technology, it provides full-color imaging in low-light conditions, offering clearer visibility compared to traditional grayscale night vision cameras.
Is this camera suitable for outdoor use?
Yes, the camera is IP67 rated, meaning it is water and dust resistant. This durability makes it appropriate for outdoor installations, such as on building exteriors or in covered areas, where it can withstand weather exposure without compromising performance.
What type of lens does this camera have?
It features a fixed 2.8mm lens, which provides a consistent field of view without adjustable zoom. This lens type is ideal for general surveillance applications where a stable, wide-angle perspective is needed for monitoring specific areas like entryways or corridors.
Can this camera integrate with existing security systems?
Yes, it offers 4-in-1 signal compatibility, supporting TVI, AHD, CVI, and CVBS formats. This flexibility allows seamless integration into a wide range of existing surveillance setups, making it a versatile choice for upgrades or new installations.
What mounting options are available for this camera?
The camera uses a junction box mount, enabling secure installation on walls, ceilings, or other surfaces. Its mini bullet form factor and compact dimensions facilitate discreet placement, suitable for both indoor and outdoor mounting scenarios.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
