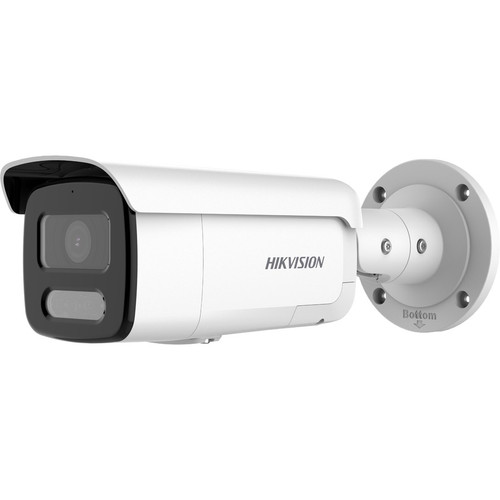

Hikvision DS-2CD2T47G2-LSU/SL 2. 8MM ColorVu 4MP Outdoor Bullet Camera with 60m Color Night Vision - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera leverages a 4MP CMOS sensor for crisp video output, with a maximum resolution of 2688x1520 and a 30 fps frame rate for smooth motion capture. The fixed 2.8mm lens provides a wide field of view—111.9° horizontally and 60.5° vertically—ideal for covering expansive areas without blind spots. Video encoding supports H.265+, H.264+, MJPEG, and other formats, optimizing storage efficiency while maintaining quality.
Exposure control ranges from 1/100,000 to 1/3 second, accommodating varying lighting conditions, and the f/1 aperture maximizes light intake for brighter images. Onboard 3D digital noise reduction minimizes grain in low-light footage, and features like backlight compensation and anti-flicker ensure stable video in challenging environments.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CD2T47G2-LSU/SL stands out with its ColorVu technology, which provides true color video in near-darkness up to 60 meters, enhancing identification accuracy compared to monochrome infrared systems. This capability is paired with intelligent detection features like human and vehicle detection, cross-line detection, and motion detection, reducing false alarms and focusing alerts on relevant events.
Advanced Detection Suite
Includes human detection, vehicle detection, cross-line detection, and motion detection for precise event triggering and reduced nuisance alarms.
- Human Detection
- Vehicle Detection
- Cross-Line Detection
- Motion Detection
Efficient Video Management
Supports H.265+ and H.264+ compression for lower bandwidth and storage demands without sacrificing video quality, ideal for large-scale deployments.
- H.265+ Support
- H.264+ Support
- 30 fps Frame Rate
- Remote Management
Deployment / Use Cases
This bullet camera is designed for outdoor surveillance where reliable, high-quality video is essential. Its IP67 rating and wide operating temperature range make it suitable for exposed locations like building perimeters, parking garages, industrial sites, and retail exteriors, enduring rain, snow, dust, and temperature fluctuations without performance degradation.
Common applications include monitoring entry points for access control, securing parking areas against theft or vandalism, overseeing warehouse yards, and enhancing safety in public spaces. The PoE support simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring complexity and costs. Integration with Hikvision NVRs and VMS platforms allows for seamless system expansion and centralized management.
Perimeter Security
Ideal for fencing, gates, and boundary monitoring with its wide field of view and color night vision for clear identification of intruders day or night.
Commercial & Industrial Sites
Suits parking lots, loading docks, and outdoor storage areas, offering durable construction and advanced detection to safeguard assets and personnel.
Physical Profile
The camera features a compact bullet form factor with a white finish, measuring 4.13 inches (105 mm) in diameter and weighing approximately 2.57 pounds (1165 grams). Its robust design includes an M16 lens mount for secure attachment, and the IP67-rated housing ensures protection against water immersion and dust ingress. This build allows for easy mounting on walls, ceilings, or poles using standard brackets, providing flexibility in installation angles and locations.
- Weight
- 2.57 lb (1165 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP resolution for detailed 2688x1520 video at 30 fps
- ColorVu technology enables full-color night vision up to 60 meters
- Wide 111.9° horizontal field of view for broad coverage
- IP67-rated for water and dust resistance in outdoor environments
- Supports PoE and 12V DC power for flexible installation options
- Advanced detection features include human, vehicle, and motion detection
- H.265+ and H.264+ video compression for efficient storage and bandwidth
- Operating temperature range from -30°C to 60°C for all-weather reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2T47G2-LSU/SL 2.8MM |
| Brand Name | Hikvision |
| Product Line | ColorVu |
| Product Model | DS-2CD2T47G2-LSU/SL |
| Product Name | 4 MP ColorVu Audio Alarm & Strobe Light Fixed Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 196.85 ft (60 m) |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV 111.9°, Vertical FOV 60.5°, Diagonal FOV 133.6° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264+,H.264,H.265+,H.265,MJPEG,H.264B,H.264M,H.264H,H.265M |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Durability | Water Resistant,Dust Resistant |
| Diameter | 4.13" (105 mm) |
| Weight (Approximate) | 2.57 lb (1165 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Cross Line Detection,Back Light Compensation (BLC),Highlight Compensation (HLC),Region of Interest,Human Detection,Vehicle Detection,Alarm Triggering,Anti-flicker,Motion Detection,3D Digital Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
The camera delivers 4MP resolution with a maximum video output of 2688 x 1520 pixels at 30 frames per second. This high resolution ensures clear, detailed footage suitable for identifying faces, license plates, and other critical details in surveillance scenarios.
How does the ColorVu night vision work?
ColorVu technology uses advanced sensors and optics to capture full-color video in low-light conditions, eliminating the grayscale output of traditional infrared night vision. It provides color night vision up to 60 meters (196.85 feet), enhancing identification accuracy during nighttime monitoring.
Is this camera suitable for outdoor use?
Yes, this camera is designed for outdoor deployment with an IP67 ingress protection rating, making it water-resistant and dust-resistant. It operates reliably in temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, ensuring performance in harsh weather conditions.
What power options does the camera support?
The camera supports both Power over Ethernet (PoE) and 12V DC power inputs. PoE allows for simplified installation by delivering power and data over a single Ethernet cable, while the 12V DC option provides flexibility for locations without PoE infrastructure.
What video compression formats are supported?
It supports H.265+, H.264+, H.265, H.264, MJPEG, and other variants like H.264B and H.265M. These formats optimize bandwidth usage and storage efficiency, with H.265+ offering significant reductions in file size without compromising video quality.
Does this camera include intelligent detection features?
Yes, it includes advanced detection features such as human detection, vehicle detection, cross-line detection, motion detection, and alarm triggering. These capabilities help reduce false alarms by focusing on relevant events and can integrate with surveillance systems for automated alerts and responses.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
