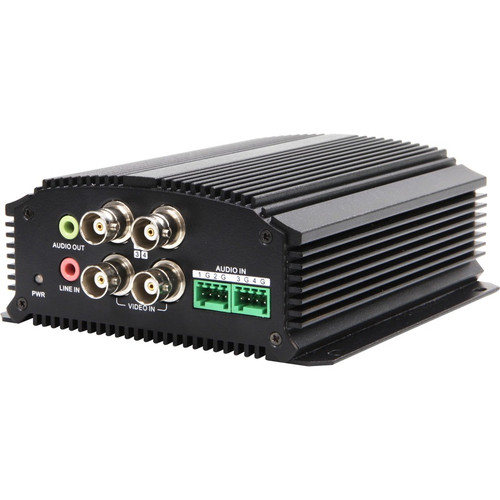

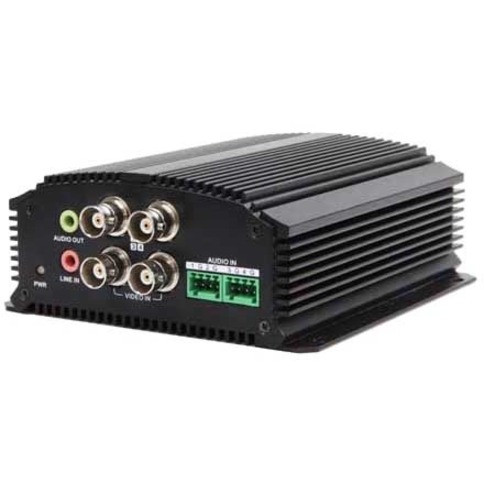

Hikvision DS-6704HWI 4-Channel Video Encoder - H. 264/MPEG-4 - NTSC - 30 fps - Ethernet - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS-6704HWI encoder provides robust technical specifications tailored for surveillance applications. It handles four video channels simultaneously, converting analog composite video inputs into digital streams using H.264, MPEG-2, Motion JPEG, or MPEG-4 compression. This flexibility ensures compatibility with various recording and playback requirements.
Network integration is simplified through a wired Ethernet connection, supporting remote management for configuration and monitoring. The device includes four audio input ports and one audio output port, enabling synchronized audio-video capture. With a compact footprint of 5.04 inches in height, 4.49 inches in width, and 1.89 inches in depth, it fits easily into rack mounts or discreet installations.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, System Components, Video Formats, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This encoder bridges the gap between legacy analog cameras and modern IP surveillance networks, offering a cost-effective upgrade path without replacing existing camera hardware. Its multi-channel design maximizes resource utilization, while advanced compression reduces bandwidth and storage demands.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Efficient Compression, Remote Accessibility, 4-Channel Scalability, NTSC Compatibility, Audio Integration.
Efficient Compression
H.264 and MPEG-4 support minimize storage needs while maintaining video quality, ideal for continuous recording environments.
- Reduces bandwidth usage
- Extends storage capacity
- Maintains clarity
Remote Accessibility
Remote management enables configuration and monitoring from any location, enhancing operational flexibility and reducing on-site maintenance.
- Internet-based control
- Real-time monitoring
- Simplified updates
Deployment / Use Cases
The DS-6704HWI is ideal for businesses upgrading from analog to IP surveillance, such as retail stores, small offices, or educational facilities. Its four-channel capacity suits entry-level systems where analog cameras are already installed but need digital integration for remote viewing and recording.
Common applications include converting existing CCTV feeds for network video recorders (NVRs), enabling remote monitoring via mobile apps or web interfaces, and adding audio surveillance through its multiple audio inputs. The compact size allows installation in server racks, network closets, or behind monitors, making it versatile for space-constrained environments.
Retail Security
Upgrade analog camera systems to digital for remote monitoring, theft prevention, and loss reduction without replacing cameras.
Office Surveillance
Integrate analog feeds into network-based security systems for centralized management and enhanced monitoring capabilities.
Physical Profile
Designed for practical installation, the encoder measures 5.04 inches in height, 4.49 inches in width, and 1.89 inches in depth, with a weight of approximately 1 kg. Its slim profile supports rack mounting or desktop placement, while the durable construction ensures reliability in continuous operation. The compact dimensions minimize space requirements, making it suitable for crowded network racks or discreet setups.
- Width
- 4.49" (114 mm)
- Depth
- 1.89" (48 mm)
- Height
- 5.04" (128 mm)
- Weight
- 1 kg
Highlights
- 4-channel analog-to-digital video encoder for surveillance upgrades
- Supports H.264, MPEG-2, Motion JPEG, and MPEG-4 video formats
- NTSC video signal format with 30 fps maximum frame rate
- Wired Ethernet connectivity for network integration
- Remote management capability for internet-based monitoring
- 4 audio input ports and 1 audio output port for audio-video sync
- Compact design: 5.04" H x 4.49" W x 1.89" D (128 x 114 x 48 mm)
- Ideal for small-to-mid-range surveillance requirements
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-6704HWI |
| Brand Name | Hikvision |
| Product Series | DS-6700 |
| Product Model | DS-6704HWI |
| Product Name | DS-6704HWI Encoder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 4 |
| Connectivity Technology | Wired |
| System Components | Video Encoder |
| Video | |
| Video Formats | H.264,MPEG-2,Motion JPEG,MPEG-4 |
| Video Signal Format | NTSC |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| Composite Video In | Yes |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| Physical Characteristics | |
| Height | 5.04" (128 mm) |
| Width | 4.49" (114 mm) |
| Depth | 1.89" (48 mm) |
| Weight (Approximate) | 1 kg |
User Manual
FAQ
How many video channels does the Hikvision DS-6704HWI support?
The DS-6704HWI supports up to 4 video channels, allowing simultaneous conversion of analog feeds from four cameras into digital streams. This makes it suitable for small-to-mid-range surveillance setups where multiple analog cameras need integration into an IP-based network.
What video formats are compatible with this encoder?
This encoder supports H.264, MPEG-2, Motion JPEG, and MPEG-4 video formats. These compression standards ensure efficient bandwidth usage and storage management, with H.264 and MPEG-4 providing high-quality video at lower bitrates for continuous recording applications.
Does the DS-6704HWI support remote management?
Yes, the DS-6704HWI includes remote management capabilities. Once connected to the internet via its Ethernet port, administrators can configure, monitor, and control the encoder from any location, enhancing operational flexibility and reducing the need for on-site maintenance.
What audio connectivity does this encoder offer?
The encoder features 4 audio input ports and 1 audio output port, enabling synchronized audio-video capture and playback. This allows integration of audio surveillance with video feeds, useful for environments where audio monitoring enhances security coverage.
What are the physical dimensions of the DS-6704HWI?
The encoder measures 5.04 inches in height, 4.49 inches in width, and 1.89 inches in depth (128 x 114 x 48 mm), with an approximate weight of 1 kg. Its compact design facilitates installation in rack mounts, network closets, or desktop setups without occupying excessive space.
Is this encoder suitable for upgrading existing analog systems?
Yes, the DS-6704HWI is designed specifically for upgrading analog surveillance systems to digital networks. It converts analog composite video signals into digital streams, allowing legacy cameras to integrate with modern IP-based recording and monitoring solutions without requiring camera replacement.
