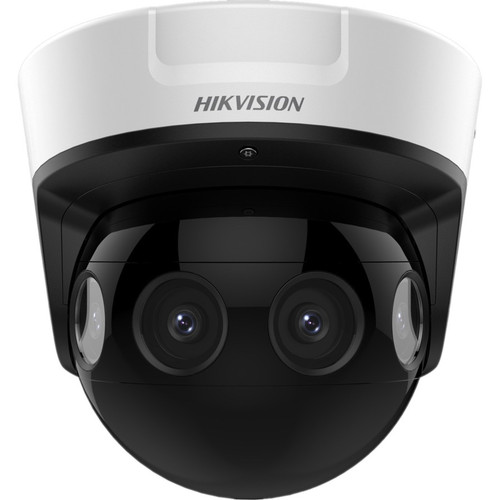

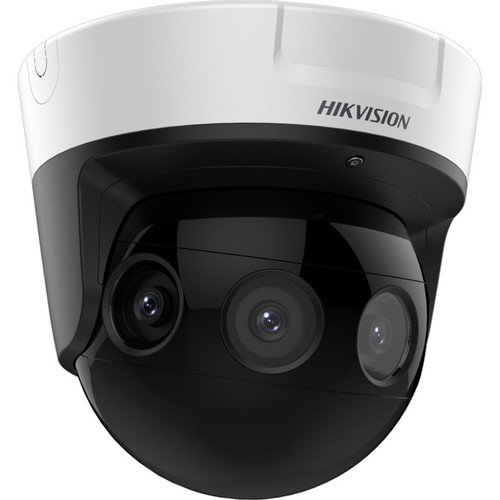

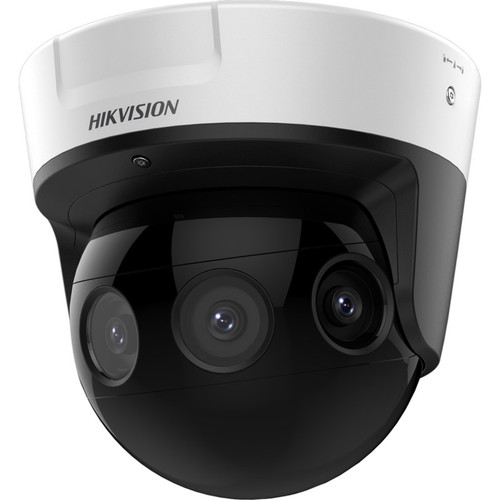

Hikvision DS-2CD6924G0-IHS 2. 8MM PanoVu 8MP Outdoor 4K Dome Network Camera with 180° View and 65. 62 ft Infrared Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Equipped with a CMOS image sensor, the camera supports color video recording and includes advanced imaging technologies such as Back Light Compensation (BLC), Built-in HLC, Defog, and 3D Digital Noise Reduction. These features enhance image clarity in challenging lighting conditions, from bright sunlight to low-light scenarios.
The fixed 2.8 mm lens with an f/1.4 aperture allows for broad scene capture, while exposure control ranges from 1/100000 to 1/25 second for precise image adjustment. Video compression formats include H.265+, H.265, H.264+, H.264, and MJPEG, optimizing bandwidth and storage efficiency without compromising quality.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This camera stands out with its panoramic 180° view, reducing the need for multiple cameras in wide areas. The integrated infrared night vision with four LEDs extends surveillance capability to 65.62 feet, ensuring reliable monitoring around the clock.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Durability, Intelligent Features.
Enhanced Durability
Built to withstand harsh conditions, it features a built-in heater for cold environments and meets IP67 and IK10 standards for water, dust, and impact resistance.
- Water Resistant
- Dust Resistant
- Vandal Proof
Intelligent Features
Advanced functionalities like motion detection, tampering alarm, and privacy masking provide proactive security management and data protection.
- Motion Detection
- Tampering Alarm
- Privacy Masking
Deployment / Use Cases
Ideal for perimeter security, parking lots, and entry points, this camera's outdoor-rated design and wide-angle lens make it effective for monitoring large open spaces. Its pendant and wall mount options offer flexible installation to suit various architectural requirements.
In retail or warehouse settings, the 4K resolution and panoramic view support detailed oversight of inventory and customer activity. The remote management capability allows for centralized control via network connections, facilitating integration into existing security systems.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The dome form factor provides a discreet and durable housing, weighing approximately 6.61 pounds. Designed for outdoor use, it operates in temperatures from -40°F to 140°F and up to 95% humidity, ensuring performance in extreme weather. The M16 lens mount and included fixed lens simplify setup, while the robust construction supports long-term reliability in exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.61 lb (3000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 6.61 lb (3000 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8-megapixel 4K resolution for crisp, detailed surveillance video
- 180° horizontal panoramic view reduces camera count for wide areas
- Infrared night vision extends up to 65.62 feet (20 meters)
- IP67 and IK10 ratings for water, dust, and vandal resistance
- Built-in heater ensures operation in temperatures as low as -40°F
- Supports H.265+, H.265, and H.264+ video compression for efficient storage
- Motion detection and tampering alarm for proactive security alerts
- Remote management capability via wired network connection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD6924G0-IHS 2.8MM |
| Brand Name | Hikvision |
| Product Line | PanoVu |
| Product Model | DS-2CD6924G0-IHS |
| Product Name | 8 MP 180° PanoVu Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 4 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV 180°, vertical FOV 90° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Maximum Aperture | f/1.4 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Pendant Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Proof |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Heater,Day/Night,Motion Detection,Tampering Alarm,Back Light Compensation (BLC),Built-in HLC,Defog,Password Protection,HTTPS Encryption,3D Digital Noise Reduction,Privacy Masking,Ingress Protection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution and field of view of this Hikvision camera?
This camera offers 8-megapixel resolution at 3840 x 2160 (4K), providing high-definition video quality. It features a wide 180° horizontal and 90° vertical field of view, enabling extensive coverage with a single unit, which is ideal for monitoring large outdoor areas like parking lots or perimeters.
How does the night vision perform in low-light conditions?
The camera includes infrared night vision with four LEDs, effective up to 65.62 feet (20 meters). This ensures clear black-and-white imagery in complete darkness, supporting 24/7 surveillance without additional lighting, making it reliable for overnight security in outdoor environments.
Is this camera suitable for outdoor installation?
Yes, it is designed for outdoor use with an IP67 rating for water and dust resistance and an IK10 impact protection rating. It also operates in a wide temperature range from -40°F to 140°F and includes a built-in heater, ensuring durability and performance in harsh weather conditions.
What video formats and compression does the camera support?
It supports multiple video formats including H.265+, H.265, H.264+, H.264, and MJPEG. H.265+ and H.264+ are advanced compression technologies that reduce bandwidth and storage requirements while maintaining high video quality, optimizing efficiency for network surveillance systems.
Can this camera be remotely managed?
Yes, it features remote management capability via its wired RJ-45 network connection. This allows for centralized control and monitoring through network interfaces, enabling integration into existing security setups and facilitating adjustments from remote locations.
What mounting options are available for this dome camera?
The camera supports both wall mount and pendant mount installations, offering flexibility for different surveillance needs. Its dome form factor provides a discreet appearance, and the robust construction ensures secure attachment in various outdoor or indoor settings.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
