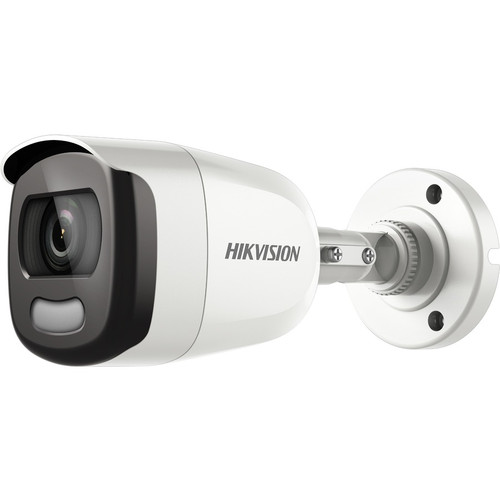

Hikvision DS-2CE12HFT-F28 2. 8MM Turbo HD 5MP Bullet Camera - 2560 x 1944 - 30 fps - 131 ft Night Vision - IP67 - Fixed Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports full-time color video and efficient power consumption. The lens system features a fast f/1 maximum aperture and a versatile shutter speed range from 1/25 to 1/50000 second, allowing for crisp capture in both bright and low-light scenarios.
Video output is compatible with multiple analog formats including TVI, AHD, CVI, and CVBS, as well as standard NTSC and PAL signals, ensuring integration flexibility with existing surveillance systems. The camera's wired connectivity provides a stable, uninterrupted feed for continuous monitoring.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2CE12HFT-F28 2.8MM combines high-resolution imaging with practical durability for round-the-clock surveillance. Its 5MP sensor captures fine details, while features like Day/Night operation and Highlight Compensation adapt to changing environmental conditions automatically.
Enhanced Low-Light Performance
With an infrared night vision range of 131 feet and 3D Digital Noise Reduction, the camera maintains clear visibility in darkness, reducing grain and blur for usable footage.
- 131.23 ft (40 m) night vision distance
- 3D Digital Noise Reduction minimizes grain
- Auto Gain Control optimizes low-light signal
Robust Outdoor Design
The IP67-rated bullet housing protects against dust and water immersion, and the junction box mount simplifies secure installation on walls or eaves.
- IP67 weather-resistant construction
- Junction box mount for stable attachment
- Operates from -40°F to 140°F (-40°C to 60°C)
Intelligent Video Processing
Advanced features like Privacy Masking, Motion Detection, and Back Light Compensation enhance security management and video clarity without manual adjustment.
- Privacy Masking blocks sensitive areas
- Motion Detection triggers alerts
- Back Light Compensation balances bright backgrounds
Deployment / Use Cases
This camera is ideal for perimeter security, entryway monitoring, and outdoor asset protection where reliable high-definition video is essential. Its wide field of view and fixed lens make it suitable for covering driveways, parking lots, building exteriors, and backyard areas.
For small businesses, it serves as a cost-effective solution for retail storefronts, warehouse loading docks, or office building entrances. Homeowners can deploy it for front door surveillance, garage monitoring, or garden security, leveraging its weather resistance and clear night vision.
Commercial Perimeter Security
Monitor business exteriors, fences, and gates with high-resolution footage that supports identification of individuals and vehicles, aided by motion detection for alerting.
Residential Property Monitoring
Secure home entrances, driveways, and yards with a durable camera that performs in all weather and provides clear night vision for after-dark safety.
Physical Profile
The bullet-style housing measures with a compact form factor designed for discreet yet visible deterrence. It includes an M16 lens mount and weighs approximately 1.25 lb (565 g), making it sturdy without being cumbersome. The junction box mount allows for angled adjustment during installation to achieve the optimal viewing angle.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.25 lb (565 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.25 lb (565 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution for detailed 2560 x 1944 video
- Fixed 2.8mm lens with wide 139.8° diagonal field of view
- Infrared night vision up to 131.23 ft (40 m)
- IP67 weather-resistant rating for outdoor durability
- 30 fps frame rate ensures smooth video playback
- Supports multiple analog formats: TVI, AHD, CVI, CVBS
- Wide Dynamic Range and 3D Digital Noise Reduction
- Operating temperature range: -40°F to 140°F (-40°C to 60°C)
- Includes Privacy Masking and Motion Detection features
- 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE12HFT-F28 2.8MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE12HFT-F28 |
| Product Name | 5 MP Full Time Color Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | TVI,AHD,CVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Junction Box Mount |
| Form Factor | Bullet |
| Durability | Weather Resistant |
| Weight (Approximate) | 1.25 lb (565 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,3D Digital Noise Reduction,Automatic White Balance,Auto Gain Control,Day/Night,Highlight Compensation (HLC),Back Light Compensation (BLC),Privacy Masking,Motion Detection |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution and video quality of this Hikvision camera?
The camera delivers 5-megapixel resolution at 2560 x 1944, providing high-definition video with clear detail for identifying faces, license plates, and other critical elements. It records at 30 frames per second for smooth motion capture, and features like Wide Dynamic Range and 3D Digital Noise Reduction enhance clarity in varying light conditions.
How far does the night vision reach, and how does it work?
Night vision extends up to 131.23 feet (40 meters) using infrared technology. The camera automatically switches to monochrome mode in low light, with Auto Gain Control and noise reduction to maintain image quality, ensuring reliable surveillance around the clock.
Is this camera suitable for outdoor installation?
Yes, it is built for outdoor use with an IP67 weather-resistant rating, meaning it is dust-tight and can withstand temporary immersion in water. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and up to 90% humidity, making it durable for harsh environments.
What type of lens does it have, and can I adjust the view?
It features a fixed 2.8mm lens with a wide field of view (horizontal 99.7°, vertical 72°, diagonal 139.8°), providing broad coverage without optical zoom. The lens is pre-focused and not adjustable, but the junction box mount allows for tilting to set the desired angle during installation.
What video formats and connectivity does it support?
It supports analog video formats including TVI, AHD, CVI, and CVBS, as well as standard NTSC and PAL signals, ensuring compatibility with various DVRs and recording systems. Connectivity is wired for a stable feed, requiring a coaxial cable for video transmission and power.
Does it include any smart features for security management?
Yes, it includes Motion Detection to trigger alerts on movement, Privacy Masking to block sensitive areas in the frame, and Back Light Compensation to balance bright backgrounds. These features help automate monitoring and improve video usability without constant manual oversight.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
