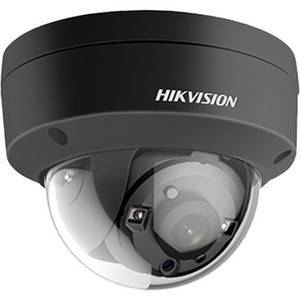

Hikvision DS-2CE56H0T-VPITFB 2. 8MM Turbo HD 5MP Outdoor Dome Camera - 65. 62 ft IR Night Vision - 85. 5° FOV - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video in multiple analog formats including AHD, CVBS, TVI, and CVI, ensuring compatibility with various surveillance systems. The imaging pipeline incorporates Digital Wide Dynamic Range (D-WDR) and 3D Digital Noise Reduction to maintain clarity in challenging lighting conditions, from bright backlight to low-light scenes.
Exposure control is handled by an automatic shutter ranging from 1/50000 to 1/30 second, supported by Auto Gain Control and Automatic White Balance. The day/night functionality switches seamlessly, and features like Back Light Compensation (BLC) and Mirror adjustment optimize the image for specific installation scenarios.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Hikvision dome camera combines high-resolution imaging with rugged outdoor construction, making it a practical choice for continuous surveillance operations.
Extended Night Coverage
Infrared illumination reaches up to 65.62 feet (20 meters), enabling reliable identification of objects and movement in complete darkness without visible light.
- Infrared night vision
- 65.62 ft effective distance
- Automatic day/night switching
Environmental Durability
Rated IP67 for dust and water resistance and IK10 for impact protection, the camera withstands harsh weather, vandalism, and temperature extremes from -40°F to 140°F.
- IP67 waterproof rating
- IK10 impact resistance
- Wide temperature tolerance
Installation Versatility
The dome form factor and multiple mounting options—including ceiling, wall, corner, pole, conduit, and pendant—allow for discreet placement in virtually any outdoor location.
- Six mounting types
- 4.40" diameter dome
- Black low-profile design
Deployment / Use Cases
This camera is suited for perimeter security, entryway monitoring, parking lot surveillance, and outdoor asset protection where high-resolution detail and night visibility are critical.
Its analog video output supports integration with existing Turbo HD, AHD, TVI, CVI, or CVBS recorders, making it an effective upgrade or expansion camera for legacy systems. The wired connectivity ensures stable video transmission without wireless interference, ideal for permanent installations.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Small Business Security
Monitor storefronts, warehouses, and outdoor storage areas with clear 5MP video, leveraging the wide field of view to reduce the number of cameras needed per zone.
Residential Perimeter Guard
Secure home exteriors, driveways, and gardens with infrared night vision that covers large distances, providing peace of mind during all hours.
Physical Profile
The camera features a compact black dome housing measuring 4.40 inches (111.76 mm) in diameter, designed for low-visibility mounting. Its 12.32-ounce weight facilitates easy installation on various surfaces without requiring heavy-duty supports. The M12-mount lens is factory-fixed at 2.8 mm, providing a consistent wide-angle perspective suitable for general surveillance applications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12.32 oz (349.27 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 12.32 oz (349.27 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution (2560 x 1944) for detailed surveillance footage
- Infrared night vision effective up to 65.62 feet (20 meters)
- Wide 85.5° field of view with fixed 2.8 mm lens
- IP67 weatherproof and IK10 vandal-resistant rating
- Supports AHD, CVBS, TVI, and CVI analog video formats
- Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
- Multiple mounting options: ceiling, wall, corner, pole, conduit, pendant
- CMOS sensor with D-WDR and 3D noise reduction for clear imaging
- 12V DC powered with wired connectivity for reliable operation
- Day/night functionality with automatic switching
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE56H0T-VPITFB 2.8MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE56H0T-VPITFB |
| Product Name | 5 MP Outdoor Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 85.5° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,CVBS,TVI,CVI |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Ceiling Mount,Pendant Mount,Wall Mount,Corner Mount,Pole Mount,Conduit Mount |
| Form Factor | Dome |
| Diameter | 4.40" (111.76 mm) |
| Weight (Approximate) | 12.32 oz (349.27 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Digital Wide Dynamic Range (D-WDR),3D Digital Noise Reduction,Day/Night,Automatic White Balance,Back Light Compensation (BLC),Mirror,Auto Gain Control |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the effective night vision distance of this camera?
The Hikvision DS-2CE56H0T-VPITFB provides infrared night vision up to 65.62 feet (20 meters). This allows the camera to capture clear monochrome video of objects and movement in complete darkness, making it suitable for perimeter security and outdoor areas without auxiliary lighting.
What video resolutions and formats does this camera support?
This camera delivers 5-megapixel video at a maximum resolution of 2560 x 1944 pixels and a frame rate of 30 fps. It outputs analog video in multiple formats including AHD, CVBS, TVI, and CVI, ensuring compatibility with a wide range of existing surveillance recorders and systems.
Is this camera suitable for outdoor use in harsh weather?
Yes, this dome camera is built for outdoor deployment with an IP67 ingress protection rating, meaning it is dust-tight and can withstand temporary immersion in water. It also carries an IK10 impact resistance rating, protecting against vandalism and physical impacts. The operating temperature range spans from -40°F to 140°F (-40°C to 60°C).
What are the mounting options for this dome camera?
The camera supports six mounting types: ceiling mount, wall mount, corner mount, pole mount, conduit mount, and pendant mount. This flexibility allows installers to position the unit discreetly in various outdoor locations, optimizing the field of view for specific surveillance needs.
What type of lens does this camera have, and is it adjustable?
The camera features a fixed 2.8 mm lens with an M12 mount, providing an 85.5° field of view. The lens is not adjustable or interchangeable, offering a consistent wide-angle perspective ideal for general monitoring applications where a broad coverage area is preferred over zoom capability.
Does this camera require a power supply, and what are the requirements?
Yes, this is a wired camera that requires a 12V DC power source. It does not support Power over Ethernet (PoE) or battery operation. The wired connectivity ensures stable power and video transmission, making it reliable for permanent installations where consistent performance is critical.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
