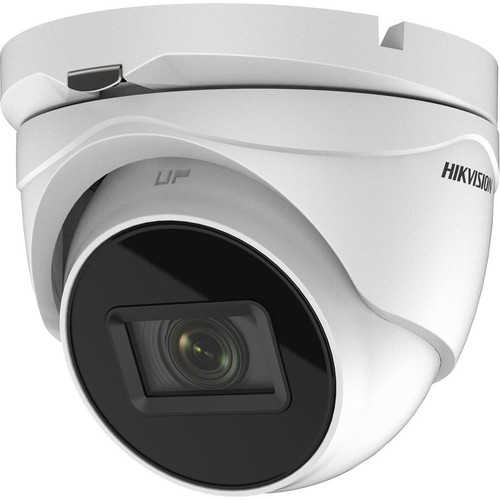

Hikvision DS-2CE79U7T-AIT3ZF Turbo HD Pro 8. 3MP 4K Color Turret Camera with 5x Varifocal Lens & 196. 85 ft Infrared Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera leverages an 8.3-megapixel CMOS image sensor to produce 4K Ultra HD video at a resolution of 3840 x 2160 pixels. The sensor's efficient design reduces power consumption while maintaining high image quality, outperforming traditional CCD sensors in HD video production. The camera records in 4K format with a maximum frame rate of 30 fps, ensuring smooth playback and detailed motion capture.
Video signal compatibility includes both NTSC and PAL standards, along with analog formats such as TVI, AHD, CVI, and CVBS for versatile system integration. The lens system features a varifocal design with a focal length range from 2.7 mm to 13.5 mm, providing 5x optical zoom. Exposure control is managed through a shutter speed range from 1/50000 second to 1/12.5 second, adapting to varying lighting conditions.
Key Product Advantages
The DS-2CE79U7T-AIT3ZF offers several advantages for surveillance applications, starting with its cost-effective 8.3MP CMOS sensor that delivers superior HD video with lower power consumption. The 5x optical zoom varifocal lens allows precise framing without sacrificing image quality, while the 108.1° to 45.6° adjustable field of view accommodates both wide-area monitoring and focused detail capture.
Enhanced Low-Light Performance
Infrared night vision extends visibility up to 196.85 feet, and features like 3D digital noise reduction, wide dynamic range, and backlight compensation ensure clear images in challenging lighting conditions.
- Infrared Illumination
- 3D Digital Noise Reduction
- Wide Dynamic Range
- Back Light Compensation
Durable and Flexible Installation
With an IP67 rating for dust and water resistance, this camera operates in temperatures from -40°F to 140°F and supports multiple mounting options including pole, wall, ceiling, and corner installations.
- IP67 Protection
- Wide Temperature Range
- Versatile Mounting
- Turret Form Factor
Deployment / Use Cases
This camera is ideal for commercial and residential surveillance where high-resolution monitoring and reliable night vision are essential. Its 4K video quality makes it suitable for identifying fine details such as license plates or facial features in retail stores, parking lots, and perimeter security applications. The varifocal lens allows customization for both broad overviews and specific point monitoring.
Common use cases include outdoor perimeter security for businesses, indoor retail surveillance to prevent theft, and industrial site monitoring in harsh environments. The camera's compatibility with multiple analog video formats ensures it can upgrade existing systems without requiring a complete overhaul. Its rugged IP67 construction and wide operating temperature range make it dependable for year-round outdoor deployment in varying weather conditions.
Retail and Commercial Security
Monitor entrances, cash registers, and inventory areas with 4K clarity and adjustable field of view to reduce blind spots and enhance loss prevention efforts.
Outdoor Perimeter and Parking
Secure property boundaries and parking facilities with infrared night vision up to 196.85 feet and durable weatherproof housing that withstands environmental extremes.
Physical Profile
The turret form factor provides a discreet and vandal-resistant design, with a 3-axis adjustable mount for precise positioning. The camera weighs approximately 2.04 pounds (925 grams) and includes a Φ14 lens mount. Its compact build facilitates installation in tight spaces while the multiple mounting options—pole, wall, ceiling, junction box, corner, and vertical—offer flexibility for various architectural requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.04 lb (925 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 2.04 lb (925 g)
- Length
- 2.7 mm (0.11")
Highlights
- 8.3-megapixel CMOS sensor for crisp 4K video at 3840 x 2160 resolution
- 5x optical zoom varifocal lens with adjustable 108.1° to 45.6° field of view
- Infrared night vision illuminates up to 196.85 feet (60 meters) in darkness
- IP67-rated for dust and water resistance in harsh environments
- Supports multiple analog video formats: TVI, AHD, CVI, CVBS, NTSC, PAL
- Wide operating temperature range from -40°F to 140°F (-40°C to 60°C)
- 3-axis adjustable turret mount for flexible installation positioning
- Includes features like wide dynamic range, 3D noise reduction, and backlight compensation
- Wired connectivity with 12 V DC or 24 V AC power input options
- Backed by a 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE79U7T-AIT3ZF |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Series | Pro |
| Product Model | DS-2CE79U7T-AIT3ZF |
| Product Name | 4K Ultra Low Light Motorized Varifocal Turret Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 196.85 ft (60 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 108.1° to 45.6° |
| Effective Camera Resolution | 8.3 Megapixel |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | TVI,AHD,CVI,CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Lens Mount Type | Φ14 |
| Optical Zoom | 5x |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/12.5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Mount Type | Pole Mount,Wall Mount,Ceiling Mount,Junction Box Mount,Corner Mount,Vertical Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Weight (Approximate) | 2.04 lb (925 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,3-Axis Adjustable,Built-in OSD Function,3D Digital Noise Reduction,Day/Night,Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC) |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
This Hikvision DS-2CE79U7T-AIT3ZF camera records at a maximum resolution of 3840 x 2160 pixels, which is 4K Ultra HD. It captures video at 30 frames per second, providing detailed and smooth footage suitable for identifying fine details in surveillance applications.
How far does the night vision reach on this surveillance camera?
The camera features infrared night vision that effectively illuminates objects up to 196.85 feet (60 meters) in complete darkness. This extended range ensures reliable monitoring during nighttime or low-light conditions without additional external lighting.
What type of lens does this camera have, and is it adjustable?
This camera includes a motorized varifocal lens with 5x optical zoom, allowing the focal length to be adjusted from 2.7 mm to 13.5 mm. This enables the field of view to be tailored from a wide 108.1° angle down to a narrow 45.6° for focused observation, providing flexibility in framing the surveillance area.
Is this camera suitable for outdoor use in harsh weather conditions?
Yes, the camera is built for outdoor durability with an IP67 ingress protection rating, meaning it is dust-tight and can withstand temporary immersion in water. It operates reliably in temperatures from -40°F to 140°F (-40°C to 60°C) and up to 90% humidity, making it suitable for year-round installation in various climates.
What video signal formats does this camera support for system integration?
This camera supports multiple analog video signal formats including TVI, AHD, CVI, and CVBS, along with standard NTSC and PAL formats. This broad compatibility allows it to integrate seamlessly into existing surveillance systems without requiring complete hardware upgrades.
What mounting options are available for this turret camera?
The camera offers versatile mounting options including pole mount, wall mount, ceiling mount, junction box mount, corner mount, and vertical mount. Its 3-axis adjustable turret design allows for precise positioning to cover optimal viewing angles, facilitating installation in diverse locations such as building exteriors, corners, or overhead structures.
What display size or resolution is listed?
It features a display specification of 8.3 Megapixel, giving you clear visuals for work and media use.
