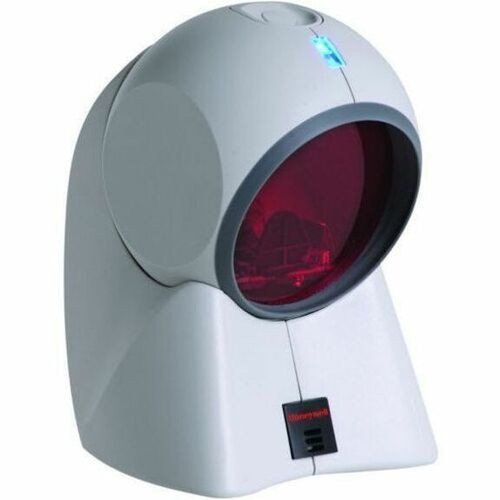

Honeywell Orbit 7120 Barcode Scanner - Cable Connectivity - 20 scan/s - 9.80" (248.92 mm) Scan Distance - Laser - Omni-directional - - (MK7120-31A38-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Orbit 7120 Barcode Scanner
- USB Cable
Connectivity Technology: Cable
Light Source: Laser
Scan Rate: 20 scan/s
Scan Pattern: Omni-directional
Scanning Distance: 9.80" (248.92 mm)
Cable Type Included: USB
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Maximum Ambient Light: 4842 lux
Drop Specification:
Designed to withstand 1.2 m (4´) drops
Minimum Print Contrast: 35%
Features: Beep,Notification LED
Host Interface: USB
Input Current: 180 mA
Standby Current: 170 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Desktop
Rugged: Yes
Color Family: Black
Product Color: Black
Height: 5.91" (150 mm)
Width: 4.02" (102 mm)
Weight (Approximate): 14.11 oz (400 g)
Package Contents:
Application/Usage: Retail
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- Scan barcodes with a staggering speed of 20 scan/s
- Powerful laser scan source provides 20 scan/s decode rate
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | MK7120-31A38-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Orbit 7120 |
| Product Name | Orbit 7120 Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Light Source | Laser |
| Scan Rate | 20 scan/s |
| Scan Pattern | Omni-directional |
| Scanning Distance | 9.80" (248.92 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Maximum Ambient Light | 4842 lux |
| Drop Specification | Designed to withstand 1.2 m (4´) drops |
| Minimum Print Contrast | 35% |
| Features | Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 180 mA |
| Standby Current | 170 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 5.91" (150 mm) |
| Width | 4.02" (102 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Retail |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
