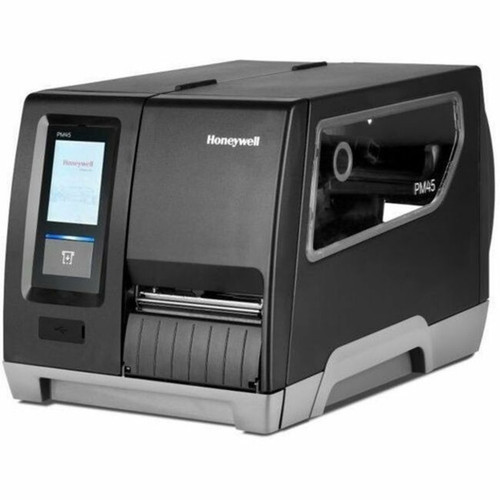

Honeywell PM45 Industrial, Government, Food Service, Manufacturing, Healthcare, Warehouse Thermal Transfer Printer - Monochrome - - - (PM45G10010050201)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 13.78 in/s (350 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 15.75 ft (4800.60 mm)
Maximum Print Width: 4.25" (107.95 mm)
Barcode Symbology Supported: 1D,2D,UPC/EAN Shipping Container,UCC/EAN 128 Serial Shipping Container,POSTNET,HIBCC,ISBT-128,GM1724
Rewinder: Yes
Peel Facility: Yes
Application/Usage: Industrial,Government,Food Service,Manufacturing,Healthcare,Warehouse
Features: Rugged
Standard Memory: 256 MB
USB Host: Yes
Serial Port: Yes
USB: Yes
Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
RFID: Yes
Display Screen: Yes
Display Screen Type: LCD
Touchscreen: Yes
Cutter: Yes
Media Type: Gap,Notch,Black Mark,Continuous Label,Label
Media Sensor: Label Present Sensor
Maximum Roll Diameter: 8.4" (213 mm)
Maximum Label Width: 4.49" (114 mm)
Language Emulation: Fingerprint,IPL,ZSim2,ZPL II,DPL,XML,Direct Protocol (DP)
Power Source: AC Supply
Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: 158°F (70°C)
Storage Relative Humidity: 5% - 90%
Form Factor: Desktop
Height: 11.61" (295 mm)
Width: 11.18" (284 mm)
Depth: 19.02" (483 mm)
Weight (Approximate): 29.10 lb (13200 g)
Platform Supported: PC
Energy Star: Yes
Environmentally Friendly: Yes
TAA Compliant: Yes
Limited Warranty: 1 Year
- A better-quality solution to print permanent-use documents
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Enjoy the optimal performance in today's on-demand labeling applications
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | PM45G10010050201 |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Series | PM45 |
| Product Model | PM45 |
| Product Name | PM45 Thermal Transfer Printer |
| Product Type | Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 13.78 in/s (350 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 15.75 ft (4800.60 mm) |
| Maximum Print Width | 4.25" (107.95 mm) |
| Barcode Symbology Supported | 1D,2D,UPC/EAN Shipping Container,UCC/EAN 128 Serial Shipping Container,POSTNET,HIBCC,ISBT-128,GM1724 |
| Rewinder | Yes |
| Peel Facility | Yes |
| Application/Usage | Industrial,Government,Food Service,Manufacturing,Healthcare,Warehouse |
| Features | Rugged |
| Memory | |
| Standard Memory | 256 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Ethernet Technology | Gigabit Ethernet |
| RFID | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Cutter | |
| Cutter | Yes |
| Media Types & Handling | |
| Media Type | Gap,Notch,Black Mark,Continuous Label,Label |
| Media Sensor | Label Present Sensor |
| Maximum Roll Diameter | 8.4" (213 mm) |
| Maximum Label Width | 4.49" (114 mm) |
| Fonts & Emulation | |
| Language Emulation | Fingerprint,IPL,ZSim2,ZPL II,DPL,XML,Direct Protocol (DP) |
| Power Description | |
| Power Source | AC Supply |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
| Storage Temperature | 158°F (70°C) |
| Storage Relative Humidity | 5% - 90% |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 11.61" (295 mm) |
| Width | 11.18" (284 mm) |
| Depth | 19.02" (483 mm) |
| Weight (Approximate) | 29.10 lb (13200 g) |
| Miscellaneous | |
| Platform Supported | PC |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
