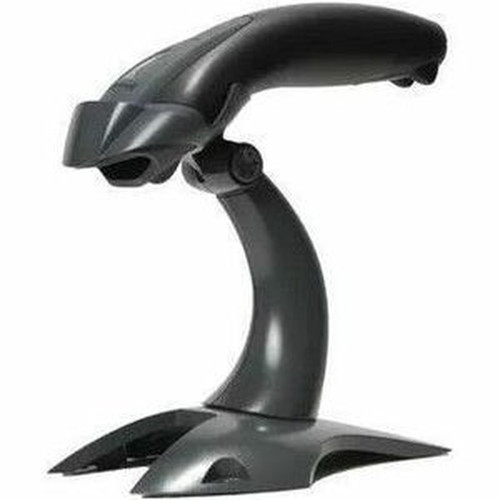

Honeywell Voyager 1400g Area-Imaging Scanner - Cable Connectivity - 13.70" (347.98 mm) Scan Distance - 1D - LED - Imager - Linear, - - (1400G2D-2USB-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1400g1D: all standard 1D symbologies
- Designed to withstand 30 1.5 m (5´) drops to concrete
- 1 x Voyager 1400g Area-Imaging Scanner
- 1 x USB Type A 1.5m straight cable (CBL-500-150-S00)
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Linear,Area,Omni-directional
Scanning Distance: 13.70" (347.98 mm)
Cable Type Included: USB
Field of View (Horizontal): 42°
Field of View (Vertical): 31°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 60°
Motion Tolerance: 4 in/s (101.60 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 35%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 640 x 480
Host Interface: USB,Keyboard Wedge,Serial,IBM 46XX
Maximum Operating Power Consumption: 2 W
Standby Current: 90 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 2.60" (66 mm)
Width: 7.09" (180 mm)
Length: 1.69" (43 mm)
Weight (Approximate): 4.20 oz (119 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Industrial
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Reliable Data Collection
- : Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes
- Remote MasterMind Ready
- : Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
- Future Proof
- : Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device
- Flexible Licensing Solution
- : Meets diverse scanning requirements by offering models with basic functionality -purchase software licenses to enable additional functionality as the need arises
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1400G2D-2USB-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Voyager |
| Product Model | 1400g |
| Product Name | Voyager 1400g Area-Imaging Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported |
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Linear,Area,Omni-directional |
| Scanning Distance | 13.70" (347.98 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 31° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 60° |
| Motion Tolerance | 4 in/s (101.60 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 35% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 640 x 480 |
| Interfaces/Ports | |
| Host Interface | USB,Keyboard Wedge,Serial,IBM 46XX |
| Power Description | |
| Maximum Operating Power Consumption | 2 W |
| Standby Current | 90 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 2.60" (66 mm) |
| Width | 7.09" (180 mm) |
| Length | 1.69" (43 mm) |
| Weight (Approximate) | 4.20 oz (119 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Industrial |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf2
User-Manual
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
