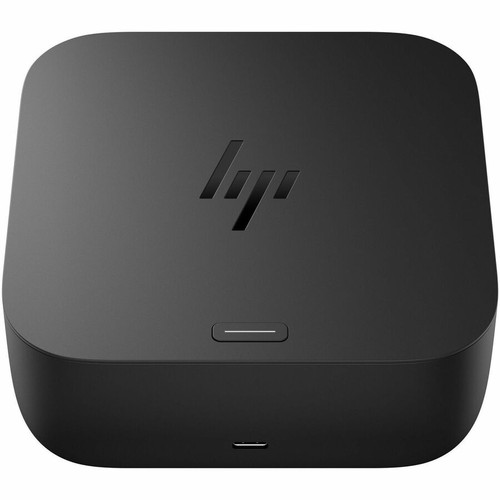

HP 9X3V1UT#ABA USB-C 100W G6 Dock - 2.5GbE - 5x USB Ports - 2x DisplayPort 1.4 - HDMI - 100W PD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for high-performance connectivity, the G6 Dock features a USB Type-C host interface that carries data, video, and power over a single cable. It delivers 100W USB Power Delivery to charge laptops efficiently, backed by a 120W power adapter for consistent operation.
The dock includes two DisplayPort 1.4 outputs supporting high-resolution displays, one HDMI port for additional monitor connectivity, and 2.5 Gigabit Ethernet for fast network access. Its five USB ports comprise two USB Type-C ports with 10Gbps signaling rates and 15W Power Delivery each, plus three USB Type-A ports for peripherals like keyboards, mice, and external storage.
Relevant factors for this section include Connectivity Technology, Charging Capability, Management Features, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This docking station simplifies workspace organization by reducing cable clutter and providing a centralized hub for all essential connections. Its 100W power delivery ensures laptops remain charged during use, while the robust port selection accommodates multiple monitors and peripherals without requiring additional adapters.
Advanced Management Suite
IT administrators benefit from features like firmware updates on disconnect, PXE Boot for network deployments, Wake-on-LAN for remote power management, MAC Address Pass-through for consistent network identification, and WLAN to LAN switching for seamless connectivity transitions.
- Firmware update on disconnect
- PXE Boot support
- Wake-on-LAN enabled
- MAC Address Pass-through
- WLAN to LAN Switch
High-Speed Data Transfer
With USB Type-C ports supporting 10Gbps signaling rates, the dock facilitates rapid file transfers and efficient data handling for productivity tasks, video editing, and large dataset operations.
- 10Gbps USB Type-C data rates
- 15W PD on Type-C ports
- Stable wired connectivity
Deployment / Use Cases
The HP G6 Dock is ideal for corporate offices, educational institutions, and home offices where users need to connect laptops to multiple monitors, wired networks, and peripherals. It supports hot-desking environments by allowing quick connection and disconnection of devices, maintaining a tidy and efficient workspace.
IT departments can deploy these docks across organizations for standardized connectivity, leveraging management features like PXE Boot for imaging and Wake-on-LAN for maintenance. The dock's compatibility with display screens and notebooks makes it versatile for presentations, multi-monitor setups, and extended workstations.
Office Workstation Expansion
Connect a laptop to dual monitors, wired internet, USB peripherals, and power through a single cable, transforming a portable device into a full desktop experience.
IT-Managed Environments
Utilize management features for remote updates, network booting, and power control, streamlining deployment and support in large-scale installations.
Physical Profile
The dock measures 12.10" wide by 12.10" deep by 5.10" high (307.34 mm x 307.34 mm x 129.54 mm) and weighs approximately 1.50 lb (680 g). Its compact design fits neatly on desks or under monitors, with a sturdy construction that ensures durability in daily use. The physical form factor supports stable placement while providing easy access to all ports.
- Width
- 12.10" (307.34 mm)
- Depth
- 12.10" (307.34 mm)
- Height
- 5.10" (129.54 mm)
- Weight
- 1.50 lb (680 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Delivers 100W USB Power Delivery to charge laptops efficiently
- Includes 2.5 Gigabit Ethernet for high-speed wired networking
- Features five USB ports (two Type-C, three Type-A) for peripheral connectivity
- Supports dual DisplayPort 1.4 outputs and one HDMI port for multi-monitor setups
- Offers advanced management features like PXE Boot and Wake-on-LAN
- Provides firmware update capability on disconnect for easy maintenance
- Compatible with display screens and notebooks for versatile use
- Backed by a 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 9X3V1UT#ABA |
| Brand Name | HP |
| Product Model | G6 |
| Product Name | USB-C 100W G6 Dock (9X3V1U) |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Management Features | Firmware update on disconnect,PXE Boot,Wake-on-LAN,MAC Address Pass-through,WLAN to LAN Switch |
| Device Supported | Display Screen,Notebook |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C® 10Gbps signaling rate (data and 15W USB Power Delivery), 1 x USB Type-C® 10Gbps signaling rate (data and 15W USB Power Delivery) |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| DisplayPort Out | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| USB Power Delivery | 100W |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Height | 5.10" (129.54 mm) |
| Width | 12.10" (307.34 mm) |
| Depth | 12.10" (307.34 mm) |
| Weight (Approximate) | 1.50 lb (680 g) |
| Miscellaneous | |
| Package Contents | USB-C 100W G6 Dock (9X3V1U) 120 W Power Adapter Product Notice Warranty Card |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What devices are compatible with this HP docking station?
The HP USB-C 100W G6 Dock is designed for display screens and notebooks that support USB-C connectivity with DisplayPort Alt Mode and Power Delivery. It works with compatible HP, Dell, Lenovo, and other USB-C laptops, providing video output, data transfer, and charging through a single cable.
How much power does this dock deliver to a connected laptop?
This dock delivers up to 100W of USB Power Delivery to charge compatible laptops. It includes a 120W power adapter to ensure stable power supply, supporting high-performance notebooks that require substantial charging power during operation.
What display outputs are available on the G6 Dock?
The dock provides two DisplayPort 1.4 outputs and one HDMI port, allowing connection to up to three external monitors depending on your laptop's capabilities and configuration. DisplayPort 1.4 supports high resolutions and refresh rates for detailed visuals.
Does this docking station include Ethernet connectivity?
Yes, it features a built-in 2.5 Gigabit Ethernet port for wired network access. This provides faster and more reliable internet connections compared to standard Gigabit Ethernet, ideal for data-intensive tasks, large file transfers, and stable video conferencing.
What management features does the HP G6 Dock offer for IT administration?
IT administrators can use firmware update on disconnect, PXE Boot for network-based operating system deployment, Wake-on-LAN for remote power management, MAC Address Pass-through for consistent device identification on networks, and WLAN to LAN switching to transition between wireless and wired connections seamlessly.
What is included in the package with this docking station?
The package contains the USB-C 100W G6 Dock (model 9X3V1U), a 120W power adapter, a product notice, and a warranty card. All components are included for immediate setup, with no additional cables required for basic operation beyond your laptop's USB-C cable.
