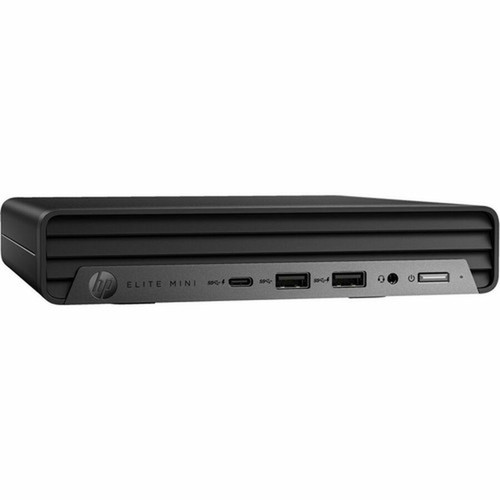

HP A5NE5UA#ABA Elite Mini 800 G9 Desktop PC - Intel Core i7-13700T vPro - 16GB DDR5 - 256GB NVMe SSD - NVIDIA GeForce RTX 3050 4GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Elite Mini 800 G9 is Intel's Core i7-13700T processor, featuring 16 cores and 24 threads with a maximum turbo frequency of 4.90 GHz. This energy-efficient T-series CPU maintains strong performance while operating within the thermal constraints of the mini PC form factor. The Intel Q670 chipset provides platform stability and supports vPro technology for remote management and enhanced security features.
Memory performance is delivered through a single 16GB DDR5 module running at 4800 MHz, providing ample bandwidth for data-intensive applications. Storage is handled by a 256GB PCI Express NVMe SSD in the M.2 form factor, offering significantly faster read/write speeds than traditional SATA drives.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Elite Mini 800 G9 combines enterprise features with compact design to create a versatile desktop solution for modern workspaces. Its mini PC form factor saves valuable desk space while delivering performance typically associated with larger systems.
Enterprise Management Ready
Intel vPro technology enables remote management, monitoring, and maintenance capabilities that IT departments require for efficient fleet management.
- Remote troubleshooting
- Out-of-band management
- Enhanced security features
Modern Connectivity Suite
Comprehensive connectivity options include Wi-Fi 6 for wireless networking, Bluetooth for peripheral connections, and multiple high-speed USB ports including USB 3.2 Gen 2x2 Type-C.
- Gigabit Ethernet for wired networks
- Five USB 3.2 Gen 2 ports
- One USB 3.2 Gen 2x2 Type-C port
Environmental Certifications
This system meets multiple environmental standards including Energy Star compliance, TCO Certified 9.0, and EPEAT Climate+ certification.
- Low halogen components
- RoHS and WEEE compliant
- Energy efficient design
Deployment / Use Cases
The HP Elite Mini 800 G9 is engineered for professional environments where space constraints meet performance requirements. Its compact dimensions make it ideal for reception areas, point-of-sale stations, digital signage applications, and crowded office environments where traditional desktop towers would be impractical.
With dedicated NVIDIA graphics and a capable processor, this system handles multimedia tasks, light video editing, CAD viewing, and financial modeling applications. The combination of vPro management features and Windows 11 Pro makes it suitable for corporate deployments where centralized management and security are priorities.
Space-Constrained Offices
The mini PC form factor allows deployment in tight spaces while maintaining full desktop functionality, perfect for modern open-plan offices and shared workspaces.
Digital Signage & Kiosks
With dedicated graphics and compact dimensions, this system drives digital displays, interactive kiosks, and information terminals reliably in commercial settings.
Localization and Operating System
The HP Elite Mini 800 G9 ships with Windows 11 Pro pre-installed, providing a robust operating system tailored for business and professional environments. Windows 11 Pro includes advanced security features such as BitLocker device encryption, enhanced threat protection, and secure boot, which help safeguard sensitive data and maintain system integrity in corporate deployments. It also supports Remote Desktop for flexible access and management, making it suitable for IT administrators who need to maintain and troubleshoot systems remotely.
This desktop is configured for North American markets with support for 120V and 230V input voltages, allowing flexible deployment in various regions without requiring external voltage converters. The operating system is localized for English (United States), including keyboard layouts and regional settings optimized for U.S. business use. This localization ensures seamless integration into English-speaking office environments, with support for standard peripherals and software applications commonly used in professional settings.
Windows 11 Pro Features
Windows 11 Pro delivers enterprise-grade capabilities that enhance productivity and security for business users.
- BitLocker encryption for data protection
- Remote Desktop for remote access and management
- Enhanced security with Windows Defender and secure boot
Global Power Compatibility
The system's power supply supports dual voltage inputs, making it adaptable for international use without additional hardware.
- 120V AC for North American outlets
- 230V AC for European and other regions
- Energy-efficient design with 180W maximum wattage
Physical Profile
Measuring just 1.34 inches tall, 6.97 inches wide, and 6.89 inches deep, the Elite Mini 800 G9 occupies minimal desk space while weighing only 3.13 pounds. The compact design features tool-less access for easy maintenance and upgrades, along with a security slot for physical theft prevention. The system operates with a 180W power supply supporting both 120V and 230V input voltages for global deployment flexibility.
- Width
- 6.97" (177 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.34" (34 mm)
- Weight
- 3.13 lb (1420 g)
What's in the Box
This product ships complete with all essential components for immediate setup and operation.
Highlights
- Intel Core i7-13700T processor with 16 cores, 24 threads, and vPro technology
- 16GB DDR5 memory at 4800 MHz for responsive multitasking performance
- 256GB PCI Express NVMe SSD delivers fast boot times and application loading
- NVIDIA GeForce RTX 3050 graphics with 4GB dedicated GDDR6 memory
- Windows 11 Pro operating system with business features and security
- Ultra-compact mini PC form factor saves valuable desk space
- Comprehensive connectivity with Wi-Fi 6, Bluetooth, and multiple USB 3.2 ports
- Enterprise management capabilities through Intel vPro technology
- Tool-less access design simplifies maintenance and upgrades
- 3-year limited warranty with on-site repair service
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A5NE5UA#ABA |
| Brand Name | HP |
| Product Line | Elite Mini |
| Product Series | 800 G9 |
| Product Name | Elite Mini 800 G9 Desktop PC |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 13th Gen |
| Processor Model | i7-13700T |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 24 |
| Maximum Turbo Speed | 4.90 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4800 MHz |
| Memory Configuration | 1 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | GeForce RTX 3050 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| LAN Model | I219-LM |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 180 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.34" (34 mm) |
| Width | 6.97" (177 mm) |
| Depth | 6.89" (175 mm) |
| Weight (Approximate) | 3.13 lb (1420 g) |
| Miscellaneous | |
| Package Contents | Elite Mini 800 G9 Desktop PC Power Adapter |
| Features | Security Slot,Tool-less Access,Low Halogen |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0,Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. |
User Manual
FAQ
What processor does this product use?
This product uses the Core i7 processor for everyday performance and multitasking.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 256 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of NVIDIA, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
