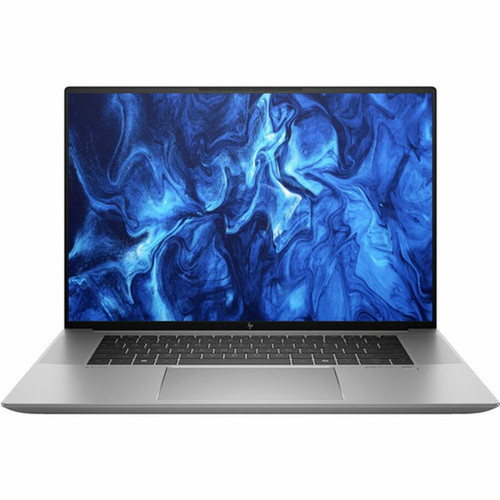

HP AN6C4UT#ABA ZBook Studio G11 16" Mobile Workstation - Intel Core Ultra 7165H - 16GB RAM - 512GB SSD - NVIDIA RTX 1000 6GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this mobile workstation is the Intel Core Ultra 7 165H processor, featuring 14 cores (6 Performance-cores and 8 Efficient-cores) and 22 threads. With a maximum turbo frequency of 5.0 GHz, Intel vPro technology, and a dedicated AI Boost NPU delivering 11 TOPS, this platform accelerates both traditional compute tasks and modern AI-enhanced workflows.
Graphics are handled by the NVIDIA RTX 1000 with 6 GB of dedicated GDDR6 memory, supported by Intel Arc Graphics for power-efficient display output. This hybrid graphics solution ensures smooth performance in professional applications while optimizing battery life during lighter tasks.
The system is equipped with 16 GB of dual-channel DDR5-5600 memory installed across two slots, with support for expansion up to 64 GB. Storage is provided by a 512 GB M.2 SSD, offering fast boot times and rapid file access.
Key Product Advantages
The ZBook Studio G11 stands out with its balanced combination of performance, portability, and professional features. Its AI-accelerated processor, dedicated workstation graphics, and robust build quality make it a reliable tool for technical and creative professionals.
Professional-Grade Display
The 16-inch WUXGA IPS panel delivers accurate colors with 100% sRGB coverage, 400 nits brightness, and an anti-glare surface. This ensures comfortable viewing during long work sessions and reliable color reproduction for design tasks.
- 1920 x 1200 resolution
- IPS technology for wide viewing angles
- Anti-glare and low blue light features
Enhanced Security & Manageability
With Intel vPro technology, IT departments can remotely manage and secure devices. The built-in fingerprint reader, infrared camera for Windows Hello facial recognition, and physical camera shutter provide multiple layers of biometric and privacy protection.
- Fingerprint reader
- IR camera with Windows Hello
- Camera privacy shutter
- vPro for remote management
Modern Connectivity
Stay connected with the latest Wi-Fi 7 standard for high-speed wireless networking and two Thunderbolt 4 ports for fast data transfer, display output, and charging. USB Power Delivery support allows flexible charging options.
- Wi-Fi 7 (802.11be)
- 2 x Thunderbolt 4 ports
- USB-C with DisplayPort 1.4
Deployment / Use Cases
This mobile workstation is ideally suited for professionals who require substantial computing power in a portable form factor. Its combination of CPU performance, GPU acceleration, and color-accurate display makes it effective across multiple demanding disciplines.
Architects and engineers can run CAD software like AutoCAD or SolidWorks smoothly, while video editors can handle 4K timeline editing in applications like Adobe Premiere Pro. Data scientists and researchers benefit from the AI NPU for accelerating machine learning inference tasks directly on the device.
The ZBook Studio G11 also serves as a capable mobile development station for software engineers working with virtual machines or containerized environments. Its security features and vPro manageability make it a strong choice for enterprise deployments where both performance and IT control are priorities.
Creative & Design Workflows
Handle photo editing, vector graphics, 3D modeling, and video post-production with the color-accurate display and RTX graphics acceleration.
Engineering & Simulation
Run finite element analysis, computational fluid dynamics, and electronic design automation tools with the multi-core processor and certified drivers.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English. Windows 11 Pro includes advanced features like BitLocker encryption, Remote Desktop, and Hyper-V virtualization, making it suitable for business and professional use.
The keyboard is localized for English (US) layouts and features a backlight for comfortable typing in low-light environments. The operating system language and keyboard localization are aligned for users in English-speaking markets.
Relevant factors for this section include AI-powered, Processor Manufacturer, Processor Type, Processor Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Designed for portability, the ZBook Studio G11 measures 0.75 inches thick and weighs 3.81 pounds (1.73 kg). Its compact footprint of 14.02 x 9.53 inches allows it to fit easily into most laptop bags while still accommodating a 16-inch display.
The build incorporates durable materials to withstand the rigors of mobile use. The 6-cell battery supports all-day productivity, and the 150-watt power adapter ensures rapid charging when needed.
- Width
- 14.02" (356 mm)
- Depth
- 9.53" (242 mm)
- Height
- 0.75" (19 mm)
- Weight
- 11.96 oz (339 g)
What's in the Box
The package includes the ZBook Studio G11 mobile workstation, a power cord, and the AC adapter. All necessary components for immediate setup and use are provided.
Highlights
- Intel Core Ultra 7 165H processor with 14 cores, 22 threads, and 5.0 GHz turbo
- 16 GB DDR5-5600 RAM in dual-channel configuration, expandable to 64 GB
- 512 GB NVMe SSD for fast storage and quick system responsiveness
- 16-inch WUXGA IPS display with 100% sRGB, 400 nits brightness, anti-glare coating
- NVIDIA RTX 1000 6 GB dedicated graphics + Intel Arc Graphics for hybrid performance
- Windows 11 Pro pre-installed with English language and localization
- Backlit English keyboard and fingerprint reader for secure login
- Wi-Fi 7 (802.11be) and Bluetooth for latest wireless connectivity
- Two Thunderbolt 4 ports and USB-C with Power Delivery and DisplayPort 1.4
- Intel vPro technology and AI Boost NPU (11 TOPS) for enterprise manageability and AI acceleration
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AN6C4UT#ABA |
| Brand Name | HP |
| Product Line | ZBook Studio G11 |
| Product Name | ZBook Studio 16 inch G11 Mobile Workstation PC |
| Product Type | Mobile Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 7 |
| Processor Model | 165H |
| Maximum Turbo Speed | 5 GHz |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Threads | 22 |
| vPro Technology | Yes |
| NPU Name | AI Boost |
| NPU Performance | 11 TOPS |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Supported System Memory | 64 GB |
| System Memory Technology | DDR5 SDRAM |
| System Memory Speed | 5600 MHz |
| System Memory Form Factor | SoDIMM |
| Installed Slot Memory | 16 GB |
| Installed Slot Memory Configuration | 2 x 8GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 2 |
| Number of Free Memory Slots | 0 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 16" |
| Screen Mode | WUXGA |
| Display Screen Type | LCD |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Screen Resolution | 1920 x 1200 |
| Brightness | 400 cd/m² |
| Color Gamut | 100% sRGB |
| Contrast Ratio | 1000:1 |
| Standard Refresh Rate | 60 Hz |
| Touchscreen | No |
| Graphics Controller Manufacturer | NVIDIA,Intel |
| Graphics Controller Model | RTX 1000,Arc Graphics |
| Graphics Memory Capacity | 6 GB |
| Graphics Memory Technology | GDDR6,DDR5 SDRAM |
| Graphics Memory Accessibility | Dedicated,Shared |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth | Yes |
| Built-in Devices | |
| Camera Privacy Shutter | Yes |
| Front Camera/Webcam | Yes |
| Infrared Camera | Yes |
| Finger Print Reader | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 SuperSpeed USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4) |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Input Devices | |
| Keyboard Localization | English |
| Keyboard Backlight | Yes |
| Battery Information | |
| Number of Cells | 6-cell |
| Battery Weight | 11.96 oz (339 g) |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| AC Adapter Frequency | 47 Hz,63 Hz |
| USB Power Delivery Support | Yes |
| Physical Characteristics | |
| Height | 0.75" (19 mm) |
| Width | 14.02" (356 mm) |
| Depth | 9.53" (242 mm) |
| Weight (Approximate) | 3.81 lb (1730 g) |
| Miscellaneous | |
| Package Contents | ZBook Studio 16 inch G11 Mobile Workstation PC Power Cord AC Adapter |
| Charger Included | Yes |
| Energy Star | Yes |
| Features | Anti-glare Screen,Low Blue Light,Miracast Technology |
| Windows Hello Compatible | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does this HP ZBook Studio G11 have?
This mobile workstation is equipped with an Intel Core Ultra 7 165H processor. It features 14 cores (6 Performance-cores and 8 Efficient-cores) and 22 threads, with a maximum turbo frequency of 5.0 GHz. The processor also includes Intel vPro technology for enterprise security and manageability, plus a dedicated AI Boost NPU capable of 11 TOPS for accelerating AI workloads.
How much memory is installed and can it be upgraded?
The system comes with 16 GB of DDR5-5600 memory installed as two 8 GB SoDIMM modules in dual-channel configuration. There are two memory slots total, both currently occupied. The maximum supported memory is 64 GB, allowing for future upgrades by replacing the existing modules with higher-capacity ones.
What type of storage does this workstation use?
Storage is provided by a 512 GB solid-state drive (SSD) in the M.2 form factor. This NVMe-based SSD delivers fast read and write speeds, resulting in quick boot times, rapid application launches, and swift file transfers. The M.2 interface allows for potential future storage upgrades or additions if the system supports additional slots.
What are the display specifications?
The laptop features a 16-inch WUXGA (1920 x 1200) IPS display with In-plane Switching technology. It offers a brightness of 400 cd/m², covers 100% of the sRGB color gamut, and has a 1000:1 contrast ratio. The screen includes anti-glare and low blue light features to reduce eye strain, and it has a standard 60 Hz refresh rate. It is not a touchscreen.
What graphics card is included?
Graphics are handled by a hybrid solution: a dedicated NVIDIA RTX 1000 with 6 GB of GDDR6 memory, plus integrated Intel Arc Graphics. The RTX 1000 is a workstation-grade GPU designed for professional applications like CAD, 3D rendering, and video editing, offering certified drivers for stability. The system can switch between the dedicated and integrated graphics to balance performance and battery life.
What operating system and keyboard localization are provided?
This workstation comes with Windows 11 Pro pre-installed in English. Windows 11 Pro includes advanced features such as BitLocker encryption, Remote Desktop, and Hyper-V virtualization. The keyboard is localized for English (US) layouts and features a backlight for visibility in low-light conditions, aligning with the operating system language for a consistent user experience.
