HP W6B55A#B1K Designjet T1700 Large Format Printer - 44" Print Width - 6-Color Inkjet - 2400 x 1200 dpi - USB/Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Designjet T1700 utilizes HP's advanced inkjet technology with six individual color channels to achieve professional color accuracy and detail. The printer's maximum print width of 44 inches accommodates standard architectural and engineering formats including A0, A1, A2, A3, and A4 sizes, along with ANSI A, B, C, D, and E sizes.
Connectivity options include USB for direct computer connections and Ethernet for network integration, allowing multiple users to share printing resources. The printer supports both PC and Mac platforms and includes photo printing capabilities for high-quality photographic output.
Relevant factors for this section include Number of Colors, Print Color Capability, Maximum Color Print Speed (sec), USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Designjet T1700 combines professional output quality with operational efficiency, making it suitable for demanding technical and creative applications. Its six-color ink system produces accurate color reproduction across diverse media types while maintaining cost-effective inkjet operation.
Media Versatility
Supports 18 different media types from lightweight bond paper to heavyweight coated stock, vinyl, and backlit materials for diverse application needs.
- Roll paper and cut sheets
- Technical and tracing papers
- Photo and glossy finishes
- Adhesive and specialty media
Professional Output
Delivers 2400 x 1200 dpi resolution with six-color inkjet technology for precise line work, smooth gradients, and accurate color matching in technical drawings and presentations.
Workflow Efficiency
Ethernet connectivity enables shared network printing, while 26-second color speed and comprehensive media handling streamline production workflows in busy office environments.
Deployment / Use Cases
The HP Designjet T1700 is optimized for professional environments requiring large format technical and presentation output. Its floor-standing design and comprehensive media handling make it suitable for architectural firms, engineering offices, design studios, and educational institutions.
Primary applications include architectural blueprints, engineering schematics, construction documents, marketing presentations, exhibition graphics, and technical illustrations. The printer's ability to handle both roll paper for continuous output and cut sheets for individual documents provides flexibility for mixed workflow requirements.
Relevant factors for this section include Number of Colors, Print Color Capability, Maximum Color Print Speed (sec), USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Architectural & Engineering
Produces precise technical drawings, site plans, and construction documents with accurate scale and detail on standard architectural paper sizes.
Design & Presentation
Creates vibrant marketing materials, exhibition graphics, and client presentations with photo-quality color reproduction on glossy and specialty media.

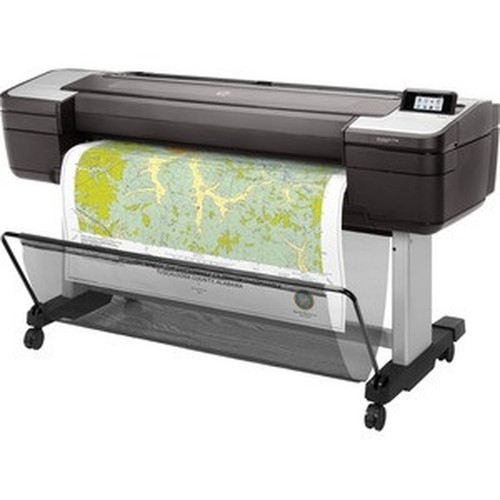

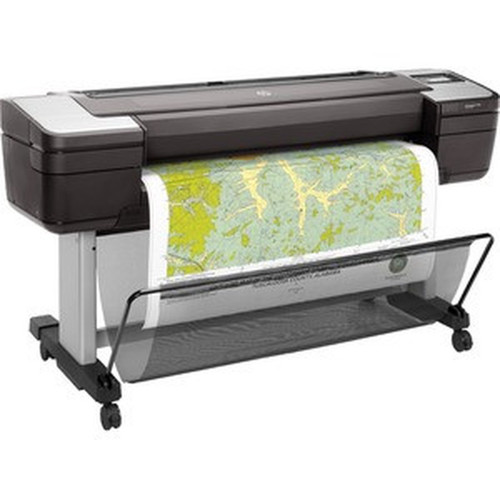

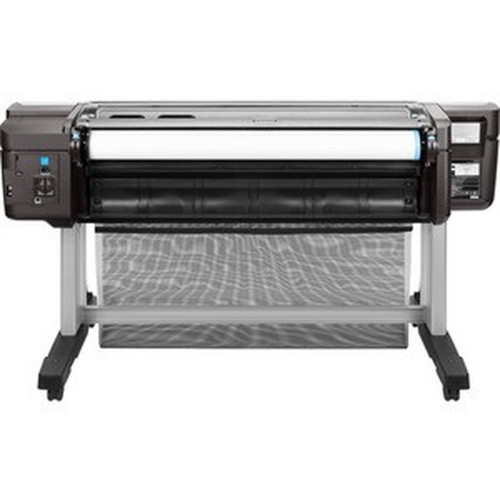

Physical Profile
The Designjet T1700 features a substantial floor-standing form factor measuring 70.90 inches wide, 39.30 inches high, and 27.40 inches deep, with an approximate weight of 159 pounds. This robust construction provides stability for large format media handling and accommodates the printer's internal mechanisms for precise paper feeding and ink delivery.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 39.30" (998.22 mm), 44" (1117.60 mm), 27.40" (695.96 mm), 159 lb (72121.19 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 44" (1117.60 mm)
- Depth
- 27.40" (695.96 mm)
- Height
- 39.30" (998.22 mm)
- Weight
- 159 lb (72121.19 g)
What's in the Box
The printer ships complete with all necessary components for immediate setup and operation.
Highlights
- 44-inch maximum print width for large format technical and presentation documents
- Six-color inkjet technology with 2400 x 1200 dpi resolution for professional output quality
- 26-second color print speed for efficient workflow handling
- Supports 18 different media types including roll paper, cut sheets, photo paper, and specialty materials
- USB and Ethernet connectivity for direct and network printing options
- Compatible with both PC and Mac platforms
- Photo printing capability for high-quality photographic output
- Energy Star certified with EPEAT Silver environmental rating
- Floor-standing design with robust construction for stable operation
- Includes printer stand, spindle, and comprehensive setup materials
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | W6B55A#B1K |
| Brand Name | HP |
| Product Line | Designjet |
| Product Model | T1700 |
| Product Name | DesignJet T1700 Printer |
| Product Type | Inkjet Large Format Printer |
| Technical Information | |
| Number of Colors | 6 |
| Print Color Capability | Color |
| Maximum Color Print Speed (sec) | 26 Second |
| Maximum Print Resolution (dpi) | 2400 x 1200 |
| Maximum Print Width | 44" (1117.60 mm) |
| Photo Printing | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Media Types & Handling | |
| Media Type | Roll Paper,Cut Sheet,Bond Paper,Coated Paper,Heavyweight Paper,Super Heavyweight Coated,Matte Film,Technical Paper,Tracing Paper,Translucent Bond,Clear Film,Photo Paper,High-gloss Paper,Satin Photo Paper,Semi-gloss Paper,Backlit,Adhesive Paper,Polypropylene,Vinyl |
| Media Size | 11" (279.40 mm) Width x 44" (1117.60 mm) Length - Roll Paper,8.30" (210.82 mm) Width x 11" (279.40 mm) Length,A0 - 33.10" (840.74 mm) Width x 46.80" (1188.72 mm) Length,A1 - 23.40" (594.36 mm) Width x 33.10" (840.74 mm) Length,A2 - 16.50" (419.10 mm) Width x 23.40" (594.36 mm) Length,A3 - 11.70" (297.18 mm) Width x 16.50" (419.10 mm) Length,A4 - 8.30" (210.82 mm) Width x 11.70" (297.18 mm) Length,A,B,C,D,E |
| Physical Characteristics | |
| Height | 39.30" (998.22 mm) |
| Width | 70.90" (1800.86 mm) |
| Depth | 27.40" (695.96 mm) |
| Weight (Approximate) | 159 lb (72121.19 g) |
| Miscellaneous | |
| Package Contents | DesignJet T1700 Printer Printheads Ink Cartridges Printer Stand Spindle Setup Poster Introductory Information Warranty Card Power Cords Label Kits Software CD |
| Form Factor | Floor Standing Supported |
| Platform Supported | PC,Mac |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum print width of the HP Designjet T1700?
The HP Designjet T1700 has a maximum print width of 44 inches (1117.60 mm), which accommodates standard large format documents including architectural A0 size (33.10" x 46.80") and engineering D size (22" x 34") drawings. This width supports both roll paper and cut sheet media for flexible document production.
How many colors does this printer use and what is the print resolution?
This printer utilizes six-color inkjet technology for accurate color reproduction across diverse media types. The maximum print resolution is 2400 x 1200 dots per inch (dpi), providing precise detail for technical drawings, smooth gradients for presentations, and sharp text for professional documents.
What types of media can the Designjet T1700 handle?
The Designjet T1700 supports 18 different media types including roll paper, cut sheets, bond paper, coated paper, heavyweight paper, super heavyweight coated, matte film, technical paper, tracing paper, translucent bond, clear film, photo paper, high-gloss paper, satin photo paper, semi-gloss paper, backlit materials, adhesive paper, polypropylene, and vinyl. This versatility accommodates everything from technical drawings to exhibition graphics.
What connectivity options are available for network and computer connections?
The printer includes both USB and Ethernet connectivity. USB allows direct connection to individual computers, while Ethernet enables network integration for shared printing across multiple users. The printer supports both PC and Mac platforms, making it compatible with most office and studio environments.
What is included in the package with the Designjet T1700 printer?
The complete package includes the DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle for roll paper, setup poster, introductory information, warranty card, power cords, label kits, and software CD. These components provide everything needed for immediate setup and operation.
What environmental certifications does this printer have?
The Designjet T1700 is Energy Star certified for energy efficiency and carries EPEAT Silver environmental assessment rating. It complies with multiple environmental standards including China RoHS, RoHS, WEEE, and REACH regulations, demonstrating HP's commitment to reduced environmental impact throughout the product lifecycle.
