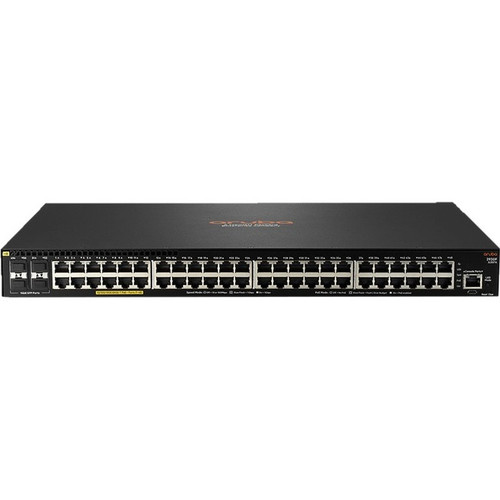

HPE JL557A#B2C 2930F 48G PoE+ 4SFP 740W Switch - 48 Port Gigabit Managed Layer 3 - 4 SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HPE 2930F switch operates as a Layer 3 device, supporting routing protocols for scalable network segmentation and efficient traffic management between subnets. Its switching fabric handles Gigabit Ethernet and 10 Gigabit Ethernet standards, with network technologies including 10GBase-X for fiber and 10/100/1000Base-T for copper, ensuring high throughput for data-intensive applications.
The power architecture is dual-sourced from a standard power supply and PoE+, with a dedicated 740-watt budget for powered devices. This allows the switch to deliver up to 25.5 watts per PoE+ port, supporting high-power endpoints. The total system power draw is rated at 980 watts under typical operating conditions.
This section brings together practical product details such as Total Number of Network Ports, Uplink Port, Modular, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This switch consolidates critical networking functions into a single, reliable unit, reducing complexity and hardware sprawl. Its combination of high port density, substantial PoE budget, and Layer 3 capabilities makes it an ideal foundation for growing networks that require both connectivity and intelligent traffic management.
High-Density PoE+ Deployment
The 740-watt PoE budget supports numerous powered devices simultaneously, ideal for offices, classrooms, or retail environments deploying VoIP phones, Wi-Fi access points, and surveillance systems.
- Delivers data and power over single cable
- Simplifies installation where outlets are scarce
- Reduces infrastructure costs
Scalable Layer 3 Architecture
Layer 3 support enables routing between VLANs and IP subnets directly on the switch, improving network performance and simplifying the core infrastructure.
- Reduces reliance on core routers
- Enhances inter-VLAN traffic efficiency
- Supports advanced network policies
Flexible Uplink and Expansion
Four SFP slots provide options for high-speed fiber uplinks or additional copper connections, allowing seamless integration into existing network backbones or future upgrades.
- 10GbE fiber connectivity ready
- Modular design for tailored uplinks
- Future-proofs network investments
Deployment / Use Cases
The HPE 2930F 48G PoE+ switch is engineered for environments where reliable, high-performance networking is non-negotiable. Its feature set addresses common business challenges, from basic connectivity to advanced network segmentation and power delivery.
In medium to large office settings, it serves as an access or distribution layer switch, connecting end-user devices while powering IP telephony and wireless systems. For education or healthcare facilities, the high PoE budget and manageability support dense deployments of technology-enhanced learning tools or medical devices. In retail or hospitality, the robust build and Layer 3 features ensure stable network operations for point-of-sale systems, digital signage, and guest Wi-Fi.
Physical Profile
Designed for standard 19-inch rack cabinets, the switch occupies a single rack unit (1U) with dimensions of 1.73 inches in height, 17.42 inches in width, and 12.77 inches in depth. Its compact, rack-mountable form factor optimizes data center or wiring closet space while providing easy access for cable management. The unit weighs approximately 10.56 pounds, making it manageable for installation and maintenance.
- Width
- 17.42" (442.47 mm)
- Depth
- 12.77" (324.36 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.56 lb (4789.94 g)
Highlights
- 48 Gigabit Ethernet ports for high-density device connectivity
- 740-watt PoE+ budget to power IP phones, cameras, and access points
- Layer 3 routing support for scalable network design and VLAN management
- Four SFP slots for flexible 10GbE fiber or copper uplink expansion
- Fully manageable via CLI, web interface, and SNMP for granular control
- 1U rack-mountable form factor for space-efficient deployment
- Supports both twisted pair and optical fiber media types
- Dual power sourcing from AC supply and PoE+ for flexible deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL557A#B2C |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Model | 2930F 48G PoE+ 4SFP |
| Product Name | 2930F 48G PoE+ 4SFP 740W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10GBase-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply,PoE+ |
| Power Consumption | 980 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.42" (442.47 mm) |
| Depth | 12.77" (324.36 mm) |
| Weight (Approximate) | 10.56 lb (4789.94 g) |
FAQ
How many devices can this switch power with PoE+?
The switch has a total PoE budget of 740 watts. Depending on the power requirements of each connected device (e.g., standard PoE devices use up to 15.4W, PoE+ up to 25.5W), it can support numerous powered devices simultaneously, such as a mix of IP phones, wireless access points, and security cameras, making it suitable for dense deployments.
What is the benefit of Layer 3 support in this switch?
Layer 3 support allows the switch to perform routing functions between different IP subnets or VLANs. This reduces the need for a separate router for internal traffic, improves network performance by keeping local traffic local, and enables more advanced network segmentation, security policies, and scalable network designs directly from the switch.
Can I use fiber optic connections with this switch?
Yes, the switch supports optical fiber connections through its four SFP (Small Form-factor Pluggable) slots. You can install compatible SFP transceivers to connect to fiber optic network cables, enabling high-speed 10 Gigabit Ethernet uplinks or connections over longer distances than standard copper Ethernet.
Is this switch manageable, and what management options are available?
Yes, this is a fully manageable switch. It can be configured and monitored using a command-line interface (CLI), a web-based graphical interface, and SNMP (Simple Network Management Protocol). This allows network administrators to set up VLANs, Quality of Service (QoS), security features, and monitor performance and status.
What rack space does this switch require for installation?
The switch is designed for standard 19-inch equipment racks and occupies 1 rack unit (1U) of vertical space. Its dimensions are 1.73 inches high, 17.42 inches wide, and 12.77 inches deep, making it a compact choice for data centers, server rooms, or wiring closets where space optimization is important.
What is the power consumption of this switch under normal operation?
The switch has a typical power consumption of 980 watts. This includes the power used by the switch itself plus the PoE power delivered to connected devices. The unit requires a standard AC power source and is designed for efficient operation in business environments with stable power infrastructure.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
