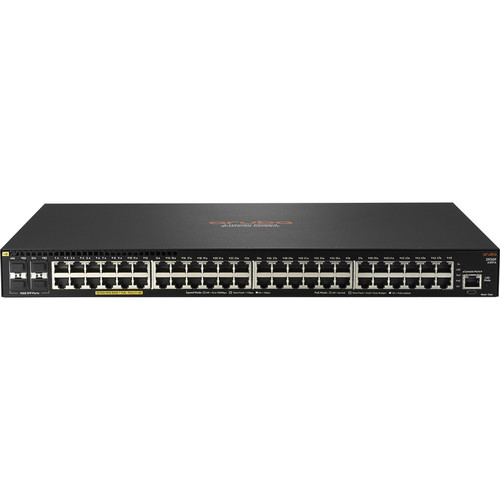

HPE JL557A 2930F 48G PoE+ 4SFP Switch - 48 Port Gigabit Layer 3 Managed - 740W - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the 2930F switch provides 48 auto-sensing 10/100/1000BASE-T ports, each capable of delivering data and up to 30W of PoE+ power per port, with a total system budget of 740W. This ensures reliable power delivery to connected devices without the need for separate electrical outlets. The integrated 4 SFP slots offer Gigabit Ethernet expansion, supporting both copper and optical fiber connections for long-distance links or high-bandwidth aggregation.
The switch operates as a full Layer 3 device, supporting static routing, RIP, OSPF, and policy-based routing for intelligent traffic flow. It is fully manageable via a web interface, CLI, or HPE's Intelligent Management Center, providing granular control over VLANs, QoS, security policies, and monitoring. The stack port facilitates easy expansion, allowing multiple units to be managed as a single logical switch, simplifying administration and increasing resiliency.
Key Product Advantages
This switch stands out by integrating high port density, substantial PoE+ power, and advanced management in a compact 1U form factor. It eliminates the complexity of separate power injectors and supports both immediate connectivity needs and future network growth through its stacking and uplink capabilities.
High-Density PoE+ Ready
With 48 PoE+ ports and a 740W budget, the switch can power a full suite of PoE devices simultaneously, streamlining deployments for VoIP, wireless, and security systems.
- Delivers up to 30W per port
- Auto-sensing for PoE/PoE+ devices
- Prioritizes power to critical devices
Flexible Uplink Options
The four dedicated SFP slots provide versatile uplink connectivity, allowing you to use fiber for long-distance runs or copper for short-haul connections to core switches or servers.
- Supports 1000BASE-SX/LX/ZX SFP modules
- Dedicated, non-shared slots
- Hot-swappable for easy maintenance
Advanced Layer 3 Features
Beyond basic switching, it supports IP routing, multicast routing, and access control lists, enabling network segmentation, improved traffic flow, and enhanced security policies.
- Static and dynamic routing (RIP, OSPF)
- Policy-based routing
- IPv4 and IPv6 dual-stack support
Deployment / Use Cases
The HPE 2930F switch is engineered for deployment in medium to large business networks, data center access layers, and converged environments where reliable, high-performance connectivity and device power are paramount. Its combination of features makes it a versatile choice for modern IT infrastructure.
In office environments, it efficiently connects and powers dozens of workstations, IP phones, and wireless access points, supporting seamless voice, data, and mobility services. For education or healthcare settings, the high port count and PoE+ budget accommodate classrooms or patient rooms filled with connected devices, while the Layer 3 capabilities allow for secure network segmentation between departments or user groups.
Converged Campus Network
Deploy as an access layer switch in campus buildings, providing PoE+ to VoIP phones and Wi-Fi APs while using SFP uplinks to connect back to the network core over fiber.
SMB Core or Distribution
Serve as the core networking device for small to medium businesses, routing traffic between VLANs for departments like sales, engineering, and guest Wi-Fi, all while powering connected devices.
Physical Profile
Designed for efficient space utilization, the switch fits a standard 19-inch rack in just 1U of vertical space, with dimensions of 17.42" wide, 11.98" deep, and 1.73" high. Its rack-mountable form factor includes optional mounting brackets, and it can also be placed on a desktop for temporary or small office use. The compact, robust chassis supports front-to-back airflow for optimal cooling in dense rack environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.98" (304.20 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 9.83 lb (4460 g)
Highlights
- 48 Gigabit Ethernet ports with auto-negotiation and auto-MDI/MDIX
- 740W total PoE+ budget, delivering up to 30W per port for powered devices
- 4 dedicated SFP slots for fiber or copper Gigabit uplink connectivity
- Full Layer 3 switching and routing capabilities (static, RIP, OSPF)
- Stack port for connecting multiple switches into a single managed unit
- Web, CLI, and SNMP management for granular control and monitoring
- 1U rack-mountable form factor for efficient data center deployment
- Lifetime warranty for long-term reliability and support peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL557A |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Model | 2930F 48G PoE+ 4SFP |
| Product Name | 2930F 48G PoE+ 4SFP 740W Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 980 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.73" (43.90 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.98" (304.20 mm) |
| Weight (Approximate) | 9.83 lb (4460 g) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE+ power budget of this switch?
The HPE 2930F 48G PoE+ 4SFP Switch has a total PoE+ power budget of 740 watts. This budget is shared across its 48 Ethernet ports, with each port capable of delivering the IEEE 802.3at standard of up to 30 watts to connected devices like IP phones, wireless access points, or security cameras. The switch intelligently manages power allocation, ensuring critical devices receive priority.
How many SFP slots are available, and are they shared with the Ethernet ports?
This switch includes four dedicated SFP (Small Form-factor Pluggable) slots for uplink expansion. These slots are not shared with the 48 Gigabit Ethernet ports; they are separate, providing flexible connectivity options. You can use them for fiber optic connections (like 1000BASE-SX or LX) for longer distances or copper SFP modules for short-haul Gigabit links to other switches or servers.
Does this switch support Layer 3 routing?
Yes, the HPE 2930F is a full Layer 3 managed switch. It supports static routing and dynamic routing protocols including RIP and OSPF. This allows it to perform inter-VLAN routing, implement access control lists (ACLs) for security, and manage traffic flow based on IP addresses, making it suitable for more complex network designs beyond basic switching.
Can multiple units of this switch be stacked together?
Yes, the switch includes a stack port that allows you to connect multiple 2930F switches together to form a stack. This enables you to manage the entire stack as a single logical device through one IP address, simplifying configuration, monitoring, and maintenance. Stacking also increases resiliency and can improve performance by leveraging the combined bandwidth of the stack.
What are the physical dimensions and rack compatibility?
The switch measures 1.73 inches in height, 17.42 inches in width, and 11.98 inches in depth. It is designed to fit a standard 19-inch equipment rack and occupies 1 rack unit (1U) of vertical space. It includes mounting brackets for rack installation and can also be used on a desktop, making it versatile for various deployment scenarios.
What management options are available for this switch?
The switch offers multiple management interfaces: a web-based graphical user interface (GUI) for easy configuration, a command-line interface (CLI) for advanced control, and support for SNMP for network monitoring systems. It is also compatible with HPE's Intelligent Management Center (IMC) for centralized management of multiple HPE networking devices.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
