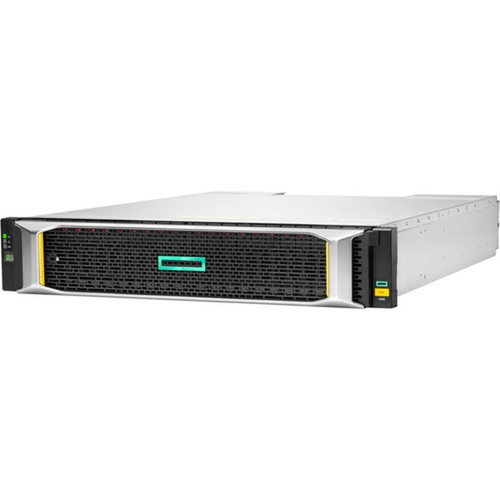

HPE R9G39B MSA 2060 16Gb Fibre Channel LFF TAA-compliant Storage - 12 Bay - 6 x 12TB HDD Installed - 72 TB - 2U Rack-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HPE MSA 2060 storage array features a 16Gb Fibre Channel host interface, offering high-speed connectivity for data-intensive applications. The system includes two Fibre Channel controllers operating in an active-active configuration to maximize throughput and fault tolerance. Storage is managed through twelve 3.5-inch drive bays, all populated with large-form-factor (LFF) hard drives in this configuration, though it also supports solid-state drives for mixed workload environments.
The hardware architecture supports up to twelve total expansion bays, all dedicated to 3.5-inch drives, allowing straightforward capacity upgrades without additional chassis. Clustering capabilities enable multiple arrays to work together for enhanced scalability and availability. Physical dimensions are optimized for standard 19-inch racks, with a height of 3.5 inches (2U), width of 17.5 inches, and depth of 20 inches, ensuring compatibility with common data center cabinets.
Key Product Advantages
The HPE MSA 2060 delivers a compelling blend of capacity, performance, and reliability for business storage needs. Its pre-configured 72 TB of hard drive storage provides immediate value, while the expandable design future-proofs your investment. Dual Fibre Channel controllers ensure continuous data availability and high I/O performance, critical for virtualization, database, and file-serving applications.
High Availability Design
Redundant controllers and clustering support minimize downtime and data loss risks in mission-critical environments.
- Active-active controller operation
- Clustering for multi-array configurations
- Fibre Channel fault tolerance
Scalable Storage Platform
Twelve drive bays allow capacity growth from the initial 72 TB up to the full array limit, accommodating evolving data demands.
- Supports HDD and SSD expansion
- Large-form-factor drive compatibility
- Easy bay-by-bay upgrades
Deployment / Use Cases
This storage array is ideal for organizations needing centralized, high-performance storage with straightforward management. Its Fibre Channel connectivity makes it well-suited for SAN environments, where low latency and high throughput are priorities. Common deployments include virtual server hosts, database backends, and archival storage systems, particularly in sectors requiring TAA compliance like government, education, and healthcare.
The MSA 2060 can serve as a primary storage target for VMware, Hyper-V, or other hypervisors, providing reliable shared storage for virtual machines. It also functions effectively as a backup repository or secondary storage tier, leveraging its large capacity and clustering support for data protection strategies. The 2U rack profile ensures it fits efficiently in standard data center racks, making it a practical choice for space-constrained environments.
Physical Profile
The HPE MSA 2060 adopts a compact 2U rack-mountable form factor, measuring 3.5 inches in height, 17.5 inches in width, and 20 inches in depth. This design maximizes storage density within standard 19-inch rack cabinets, making it easy to integrate into existing data center infrastructure. The approximate weight of 5 kg ensures manageable installation and maintenance, while the robust construction supports continuous operation in controlled environments.
- Width
- 17.50" (444.50 mm)
- Depth
- 20" (508 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 5 kg
Highlights
- 72 TB of pre-installed hard drive capacity with six 12TB drives
- Supports up to twelve 3.5-inch drive bays for future expansion
- Dual 16Gb Fibre Channel controllers for high availability and performance
- 2U rack-mountable form factor optimizes data center space
- TAA-compliant for government and regulated industry deployments
- Energy Star certified for power-efficient operation
- Clustering support enables scalable, high-availability configurations
- Large-form-factor (LFF) drive compatibility for cost-effective storage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9G39B |
| Brand Name | HPE |
| Product Series | 2000 |
| Product Model | 2060 |
| Product Name | MSA 2060 16Gb Fibre Channel LFF TAA-compliant Storage |
| Product Type | NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 6 |
| Total Hard Drive Capacity Installed | 72 TB |
| Hard Drive Configuration | 6 x 12TB |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| Clustering Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Controllers | |
| Number of Controllers | 2 |
| Controller Type | Fibre Channel |
| Interfaces/Ports | |
| Host Interface | Fibre Channel |
| Fibre Channel | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 20" (508 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 5 kg |
| Miscellaneous | |
| Energy Star | Yes |
| TAA Compliant | Yes |
User Manual
FAQ
What is the total installed storage capacity of this HPE MSA 2060 array?
This HPE MSA 2060 storage array comes with 72 TB of installed hard drive capacity, achieved through six pre-installed 12TB hard drives. This provides immediate usable storage for applications like virtualization, databases, or file serving, with room to expand up to the full twelve-bay capacity as needed.
How many drive bays does this storage array support, and what type are they?
The HPE MSA 2060 supports twelve drive bays, all designed for 3.5-inch large-form-factor (LFF) hard drives or solid-state drives. Six bays are populated with 12TB hard drives in this configuration, leaving six empty bays for future capacity upgrades or performance tuning with SSDs.
What type of host interface and controllers does this array use?
This array features a 16Gb Fibre Channel host interface, managed by two Fibre Channel controllers operating in an active-active configuration. This dual-controller design enhances data availability and performance, making it suitable for high-I/O workloads and environments requiring continuous access to storage resources.
Is this HPE storage array rack-mountable, and what are its dimensions?
Yes, the HPE MSA 2060 is rack-mountable with a 2U form factor. Its dimensions are 3.5 inches in height (88.90 mm), 17.5 inches in width (444.50 mm), and 20 inches in depth (508 mm), ensuring compatibility with standard 19-inch data center racks. The approximate weight is 5 kg for easy handling during installation.
Does this storage array support clustering for high availability?
Yes, the HPE MSA 2060 supports clustering, allowing multiple arrays to be linked together for enhanced scalability and fault tolerance. This feature is valuable for creating high-availability storage environments where continuous data access and redundancy are critical, such as in virtualized infrastructures or critical database applications.
What compliance certifications does this HPE MSA 2060 array have?
This storage array is TAA-compliant, meeting Trade Agreements Act requirements for government and regulated industry procurement. It is also Energy Star certified, indicating power-efficient operation that can help reduce data center energy costs and environmental impact over its lifecycle.
How many cores are listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
How many drive bays or RAID details are listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
