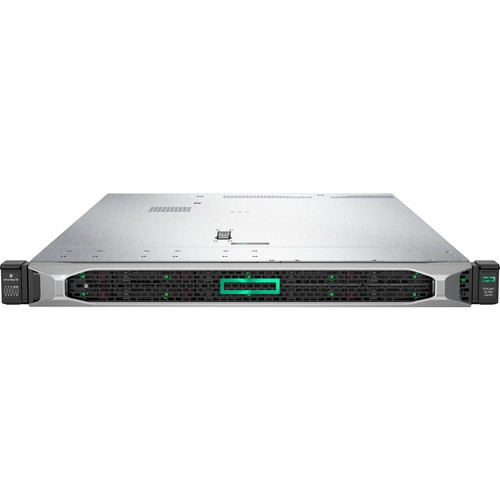

HPE P19780-AA1 ProLiant DL360 G10 1U Rack Server - 1x Xeon Bronze 3204 1. 90 GHz Hexa-core - 16 GB RAM - 4 x 3. 5" Hot-Swap Bays - 500W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the DL360 G10 is the Intel Xeon Bronze 3204 processor, a 2nd Gen Scalable CPU with six cores running at a base frequency of 1.90 GHz. It includes 8.25 MB of cache and is paired with the Intel C621 chipset, which provides the platform foundation for memory and I/O. The server supports up to two processors, allowing for future CPU upgrades to scale performance.
Memory architecture leverages DDR4 SDRAM with ECC and registered buffering for data integrity and capacity. One of the memory slots is populated with a 16 GB module, leaving ample room to expand up to the platform maximum of 1.54 TB. The system is also Intel Optane Memory Ready, enabling future performance acceleration with persistent memory modules.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ProLiant DL360 G10 combines rack density with enterprise-grade reliability features. Its 1U form factor maximizes rack space efficiency while still offering four hot-swap 3.5" drive bays for substantial storage capacity. The integrated HPE iLO 5 management controller provides advanced remote control, monitoring, and troubleshooting capabilities, reducing the need for physical access.
Storage Flexibility
Four 3.5" hot-swap LFF bays support high-capacity drives for bulk storage, while the included Smart Array S100i SR Gen10 controller ensures reliable SATA connectivity. An additional external 5.25" bay allows for optical or specialty device mounting.
- 4x 3.5" hot-swap bays
- Smart Array S100i controller
- Supports large capacity drives
Expandable I/O
Two PCIe 3.0 slots (one x16 full-height and one x8 low-profile) enable the addition of network adapters, RAID controllers, GPUs, or other acceleration cards to tailor the server to specific workload requirements.
- PCIe x16 and x8 slots
- Gen 3.0 bandwidth
- Flexible card support
Deployment / Use Cases
This configured DL360 G10 server is well-suited for a range of business IT roles. Its balance of compute, memory, and storage makes it an effective platform for virtualization hosts, file and print servers, or application servers running Windows Server, Linux, or hypervisor environments. The 1U rack design and hot-swap components align with data center standards for serviceability and uptime.
Specific deployment scenarios include branch office infrastructure, where space and remote management are critical; development and testing environments that benefit from the server's expandability; and as a node in a larger cluster for distributed workloads. The support for a broad set of operating systems—including Windows Server 2012 R2 through 2019, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and hypervisors like Hyper-V and Citrix XenServer—ensures compatibility with existing IT ecosystems.
Physical Profile
Encased in a rugged 1U rack chassis, the DL360 G10 measures 1.69 inches in height, 17.11 inches in width, and 29.52 inches in depth, conforming to standard 19-inch rack widths. The server weighs approximately 36.99 pounds, making it manageable for installation in standard server racks. The design includes tool-less rail kits for easy mounting and features a bezel locking kit for physical security. The compact footprint is engineered for efficient airflow and cooling in dense rack deployments.
- Width
- 17.11" (434.60 mm)
- Depth
- 29.52" (749.80 mm)
- Height
- 1U
- Weight
- 36.99 lb (16780 g)
What's in the Box
The server ships with all necessary components for immediate deployment in a rack environment.
Highlights
- 1U rack form factor optimizes space in standard server racks
- Intel Xeon Bronze 3204 hexa-core processor at 1.90 GHz for efficient compute
- 16 GB DDR4 ECC registered memory ensures data integrity and performance
- Four 3.5" hot-swap drive bays support high-capacity storage with easy maintenance
- HPE iLO 5 provides advanced remote management and monitoring
- Supports dual processors for future performance scaling
- Two PCIe 3.0 expansion slots for network, storage, or accelerator cards
- 500W hot-swap power supply with support for redundancy
- Validated for Windows Server, Linux, and major hypervisors
- Includes rail kit and bezel lock for secure, tool-less installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P19780-AA1 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL360 G10 |
| Product Name | ProLiant DL360 G10 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Bronze |
| Processor Generation | 2nd Gen |
| Processor Model | 3204 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.90 GHz |
| Cache | 8.25 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 1.54 TB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | Smart Array S100i SR Gen10 |
| I/O Expansions | |
| Number of Total Expansion Bays | 5 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express Details | 2 PCIe: 1 x16 FH, 1 x8 LP |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO 5 |
| Operating System | |
| Operating System Supported | Windows Server 2019 Datacenter,Windows Server 2019 Essentials,Windows Server 2019 Standard,Windows Server 2016 Datacenter,Windows Server 2016 Essential,Windows Server 2016 Standard,Windows Server 2012 R2 Standard,Windows Server 2012 R2 Essentials,Hyper-V,Citrix XenServer,Windows Server 2012 R2 Datacenter,Red Hat Enterprise Linux 7.6,Red Hat Enterprise Linux 8,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 15 SP1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ProLiant DL360 G10 Server 6-foot IEC C-13/C-14 Jumper Cord Rail Kit SFF Easy Install w/o CMA |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised FW Ability to rollback firmware Secure erase of NAND Bezel Locking Kit |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.90 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 29.52" (749.80 mm) |
| Weight (Approximate) | 36.99 lb (16780 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor is installed in this HPE ProLiant DL360 G10 server?
This server comes with one Intel Xeon Bronze 3204 processor installed. It is a 2nd Gen Xeon Scalable CPU with six cores (hexa-core) and a base clock speed of 1.90 GHz. The processor includes 8.25 MB of cache and is built on Intel's server-grade architecture for reliable performance in business workloads.
How much memory does the server have, and can it be expanded?
The server is configured with 16 GB of DDR4 SDRAM memory, utilizing ECC (Error-Correcting Code) and registered buffering for enhanced reliability. One memory slot is occupied, leaving the majority available for expansion. The platform supports a maximum memory capacity of 1.54 TB, allowing significant upgrades to meet growing application demands.
What storage bays are available, and are they hot-swappable?
The DL360 G10 includes five total expansion bays: four 3.5" large form factor (LFF) bays and one external 5.25" bay. All four 3.5" bays are hot-swappable, enabling drive replacement or addition without powering down the server. This design supports high-capacity hard drives and simplifies storage maintenance in production environments.
What remote management features are included?
HPE integrates the iLO 5 (Integrated Lights-Out 5) remote management controller. iLO 5 provides out-of-band management capabilities, including power control, hardware monitoring, remote console access, and virtual media support. This allows administrators to manage the server remotely, reducing the need for physical data center access and speeding up troubleshooting.
What operating systems are supported by this server?
The server supports a wide range of operating systems, including Windows Server 2012 R2, 2016, and 2019 (in Datacenter, Standard, and Essentials editions), Red Hat Enterprise Linux 7.6 and 8, SUSE Linux Enterprise Server 12 SP4 and 15 SP1, and hypervisors like Microsoft Hyper-V and Citrix XenServer. This broad compatibility ensures flexibility for diverse IT environments.
What is the form factor and rack mounting details?
The server is a 1U rack unit, measuring 1.69 inches high, 17.11 inches wide, and 29.52 inches deep. It is designed for standard 19-inch server racks and includes a rail kit for tool-less installation. The 1U height maximizes rack density, making it suitable for space-constrained data centers while still offering substantial storage and expansion capabilities.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 1.90 GHz processor for everyday performance and multitasking.
