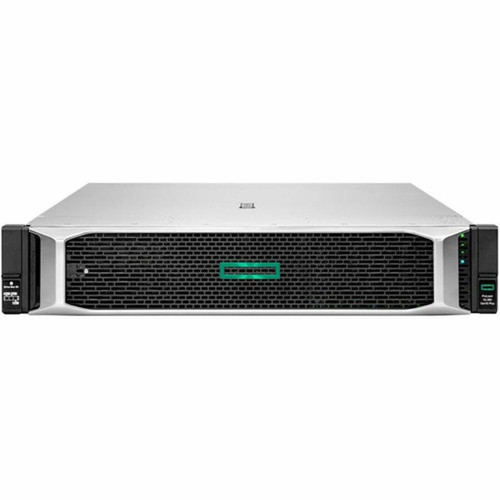

HPE P69754-005 ProLiant DL380 G10 Plus 2U Rack Server - Intel Xeon Silver 4310 2. 1GHz 12-Core - 64GB RAM - 960GB SSD - 8 Hot-Swap Bays - Dual 800W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server's technical profile centers on the Intel Xeon Silver 4310 processor, a 3rd Gen Scalable CPU with 12 cores running at 2.10 GHz and 18 MB of cache. It is paired with an Intel C621A chipset and 64 GB of registered DDR4 memory installed across two of 32 available slots, enabling massive scalability up to 2 TB.
Storage is handled by two solid-state drives with a total capacity of 960 GB, connected via SATA/600 interfaces. The system includes an HPE MR416i-a Gen10 Plus storage controller that supports 12Gb/s SAS and SATA drives and provides hardware RAID functionality for data protection and performance. Expansion is facilitated through three PCIe 4.0 slots and eight front-accessible, hot-swappable 2.5" small form factor drive bays.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ProLiant DL380 G10 Plus integrates several features that enhance reliability, manageability, and security in enterprise environments. Its hardware design prioritizes serviceability with tool-less access and hot-swappable components, while the comprehensive security suite includes TPM options, secure boot, and firmware integrity checks.
High-Density Storage Expansion
Eight hot-swappable 2.5" drive bays allow for easy storage upgrades and maintenance without downtime, supported by a 12Gb/s SAS/SATA RAID controller for performance and reliability.
Enterprise Remote Management
HPE iLO 5 provides full remote management capabilities, including power control, virtual media, and health monitoring, accessible through a standard web browser.
Redundant Power Architecture
Dual 800W hot-swappable power supplies with redundancy ensure continuous operation and easy replacement, supporting both 120V and 230V input voltages.
Deployment / Use Cases
This server is engineered for roles that demand reliable performance and scalability in a standard rack footprint. Its balanced configuration supports a variety of business-critical applications, from file and print services to web hosting and collaboration platforms.
The 2U form factor optimizes rack space while providing ample room for storage and expansion cards. IT teams can deploy it in data centers or server rooms as a standalone application server or as part of a larger clustered infrastructure, leveraging its Gigabit Ethernet connectivity and remote management for efficient operations.
Virtualization Host
With 12 processor cores, substantial memory capacity, and support for multiple operating systems, this server is well-suited for hosting virtual machines in VMware, Hyper-V, or KVM environments.
Mid-Tier Database Server
The combination of SSD storage, RAID protection, and expandable memory makes it effective for running database applications like Microsoft SQL Server, MySQL, or PostgreSQL.
Physical Profile
The server occupies a 2U rack space with dimensions of 3.44 inches in height, 17.54 inches in width, and 27.95 inches in depth, weighing approximately 63.43 pounds. Its rack-mount design includes standard mounting hardware and a bezel locking kit option for physical security. The compact yet accessible layout facilitates installation in standard 19-inch racks while maintaining serviceability for components like power supplies and drives.
- Width
- 17.54" (445.40 mm)
- Depth
- 27.95" (710 mm)
- Height
- 2U
- Weight
- 63.43 lb (28770 g)
What's in the Box
This server ships with all necessary components for immediate deployment in a rack environment.
Highlights
- Intel Xeon Silver 4310 12-core processor at 2.10 GHz
- 64 GB of DDR4 memory installed, expandable to 2 TB
- 960 GB total SSD storage across two drives
- 8 hot-swappable 2.5" drive bays for easy expansion
- Hardware RAID support via 12Gb/s SAS/SATA controller
- Dual 800W hot-swappable, redundant power supplies
- HPE iLO 5 for comprehensive remote management
- 2U rack-mount form factor for space efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P69754005 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL380 G10 Plus |
| Product Name | ProLiant DL380 G10 Plus Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 3rd Gen |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.10 GHz |
| Cache | 18 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 2 |
| Intel Optane Memory Ready | Yes |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Number of Solid State Drives | 2 |
| Total Solid State Drive Capacity | 960 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA |
| Controller Model | MR416i-a Gen10 Plus |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | 3 PCIe: PCIe 4.0 X8 X16 Full-height,full-length slot; PCIe 4.0 X16 X16 Full-height,full-length slot; PCIe 4.0 X8 X16 Full-height,half-length slot |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO 5 |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Oracle Linux,Citrix XenServer |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ProLiant DL380 G10 Plus Server 6-foot IEC C-13/C-14 Jumper Cord |
| Security Features | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification TPM (Trusted Platform Module) 1.2 option Configurable for PCI DSS compliance TPM (Trusted Platform Module) 2.0 option Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to known good state on detection of compromised firmware |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.54" (445.40 mm) |
| Depth | 27.95" (710 mm) |
| Weight (Approximate) | 63.43 lb (28770 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor is installed in this HPE ProLiant DL380 server?
This server includes one Intel Xeon Silver 4310 processor. It is a 3rd Generation Scalable processor with 12 cores (dodeca-core) and a base clock speed of 2.10 GHz, featuring 18 MB of cache. The system supports a second processor for future expansion, allowing you to double the compute capacity if needed.
How much memory does this server have, and can it be expanded?
It comes with 64 GB of DDR4 SDRAM installed across two memory slots. The server has a total of 32 memory slots and supports a maximum memory capacity of 2 TB. This provides extensive headroom for adding more RAM to handle memory-intensive applications like virtualization, databases, or large-scale analytics.
What type of storage is included, and how many drive bays are available?
The server is configured with two solid-state drives offering a total of 960 GB of storage using the SATA/600 interface. It has eight internal 2.5" small form factor drive bays that are hot-swappable, allowing you to add, replace, or upgrade drives without powering down the system. These bays support both SAS and SATA drives.
Does this server support RAID, and what controller is used?
Yes, it supports hardware RAID through the HPE MR416i-a Gen10 Plus storage controller. This controller supports both 12Gb/s SAS and Serial ATA drives, enabling RAID configurations for data redundancy, improved performance, and fault tolerance. RAID support is essential for protecting critical data in business environments.
What remote management features are included?
The server features HPE Integrated Lights-Out 5 (iLO 5) for advanced remote management. iLO 5 provides capabilities such as remote power control, virtual media mounting, hardware health monitoring, and console redirection over the network. This allows IT administrators to manage the server from anywhere, reducing the need for physical access.
What are the power supply specifications, and are they redundant?
The server includes two 800W power supplies that are both hot-swappable and redundant. This redundant power supply configuration ensures that if one power supply fails, the other can continue to power the server without interruption. The power supplies support input voltages of 120V AC and 230V AC, and use standard C13/C14 connectors.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.10 GHz processor for everyday performance and multitasking.
