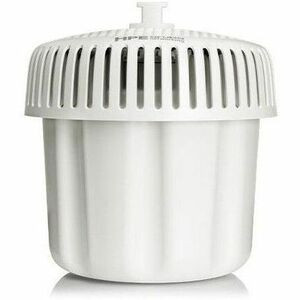

HPE S0P56A AP-677 Tri-Band Wi-Fi 6E Outdoor Access Point - 3.90 Gbit/s - 2.4/5/6 GHz - 2 x 2.5GbE - PoE - IP66/67 - Pole/Wall/Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point leverages the latest Wi-Fi 6E (IEEE 802.11ax) standard, which introduces the uncongested 6 GHz band for reduced interference and lower latency. It incorporates 2x2 MIMO and beamforming technologies to enhance signal strength, improve client capacity, and extend effective range. Advanced encryption standards, including WPA3 and WPA2-MPSK/WPA2, provide robust security for wireless traffic.
Network connectivity is handled by two 2.5 Gigabit Ethernet ports that support Power over Ethernet (PoE) for simplified installation. A USB 2.0 port and a dedicated management port offer additional configuration and monitoring capabilities. The unit integrates two internal antennas and maintains a low power consumption of 11 watts under typical operating conditions.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AP-677 combines future-proof wireless performance with industrial-grade durability, making it an ideal solution for expanding outdoor Wi-Fi networks. Its tri-band architecture maximizes available spectrum, while Wi-Fi 6E features like OFDMA and Target Wake Time improve efficiency in high-density scenarios.
Enhanced Outdoor Reliability
The IP66/67 rating ensures protection against dust and powerful water jets, allowing deployment in exposed locations without additional enclosures.
- Withstands harsh weather
- No need for external shelter
- Maintains performance in rain or dust
Simplified Installation and Power
PoE support eliminates the need for separate power cabling at the installation site, reducing deployment time and cost.
- Single-cable deployment
- Flexible placement away from outlets
- Compatible with standard PoE switches
High-Density Client Support
MIMO and beamforming technologies direct signal energy toward connected devices, improving throughput and stability for many simultaneous users.
- Better performance in crowded areas
- Stable connections for video streaming
- Supports IoT and mobile devices
Deployment / Use Cases
This access point is tailored for outdoor environments where reliable, high-speed wireless connectivity is required across large, open areas. Its robust construction and advanced radio capabilities address common challenges in exterior networking.
Typical deployments include university campuses for extending network access to outdoor study areas and quads, retail complexes for providing Wi-Fi in parking lots and outdoor seating, and municipal projects for public internet access in parks or downtown districts. The AP-677 also serves well in industrial settings, such as warehouses with outdoor yards or manufacturing plants needing connectivity between buildings.
Campus and Education
Deliver seamless Wi-Fi across outdoor common areas, sports fields, and between academic buildings to support student and faculty mobility.
Hospitality and Retail
Extend guest and customer Wi-Fi to patios, pool decks, parking garages, and outdoor dining spaces to enhance visitor experience.
Physical Profile
The AP-677 features a compact, low-profile design measuring 11.42" wide by 11.34" deep by 6.73" high (290 x 288 x 171 mm) and weighing approximately 7.94 lb (3600 g). Its internal antenna design maintains a clean aesthetic while providing omnidirectional coverage. The housing includes integrated mounting points for secure attachment to poles, walls, or ceilings, with hardware typically included for straightforward installation by network technicians.
- Width
- 11.42" (290 mm)
- Depth
- 11.34" (288 mm)
- Height
- 6.73" (171 mm)
- Weight
- 7.94 lb (3600 g)
Highlights
- Tri-band Wi-Fi 6E access point for 2.4, 5, and 6 GHz operation
- Delivers up to 3.90 Gbit/s aggregate wireless throughput
- Outdoor-rated with IP66/67 protection against dust and water
- Two 2.5 Gigabit Ethernet ports with PoE support for easy installation
- Supports MIMO and beamforming for improved range and capacity
- Versatile mounting options: pole, wall, or ceiling
- Includes Bluetooth 5 for peripheral and IoT connectivity
- Advanced security with WPA3 and WPA2 encryption standards
- Low 11-watt power consumption for energy efficiency
- Internal antenna design for a clean, unobtrusive appearance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0P56A |
| Brand Name | HPE |
| Product Series | 670 |
| Product Model | AP-677 |
| Product Name | AP-677 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 3.90 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2-MPSK,WPA2 |
| Ingress Protection (IP) Rating | IP66/67 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6E |
| Power Description | |
| Power Consumption | 11 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable,Wall Mountable,Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 6.73" (171 mm) |
| Width | 11.42" (290 mm) |
| Depth | 11.34" (288 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
User Manual
FAQ
What Wi-Fi standards does the HPE AP-677 support?
The AP-677 supports the IEEE 802.11 a/b/g/n/ac/ax wireless standards, making it fully compatible with Wi-Fi 6E. This includes backward compatibility with older Wi-Fi 4 (802.11n) and Wi-Fi 5 (802.11ac) devices, ensuring seamless connectivity for a wide range of client devices while leveraging the latest 6 GHz band for reduced congestion and higher performance with Wi-Fi 6E-capable equipment.
Is this access point suitable for outdoor use?
Yes, the AP-677 is specifically designed for outdoor deployment. It carries an IP66/67 ingress protection rating, which certifies it as dust-tight and capable of withstanding temporary immersion in water. This makes it ideal for installation in exposed locations like building exteriors, poles, or under eaves, where it can endure rain, snow, and dust without requiring an additional protective enclosure.
How many Ethernet ports does it have, and what speeds do they support?
This access point includes two RJ-45 network ports that support 2.5 Gigabit Ethernet. These ports provide high-speed uplink connectivity to your network backbone and support Power over Ethernet (PoE), allowing both data and power to be delivered over a single cable. This simplifies installation by eliminating the need for a separate electrical outlet at the mounting location.
Does the AP-677 require a PoE injector or switch?
The AP-677 requires a Power over Ethernet (PoE) source for operation, as it does not include an internal power supply. You can use either a PoE injector or a PoE-capable network switch that meets the necessary power budget. The device is designed to be powered via its Ethernet ports, which streamlines deployment by reducing cabling complexity and allowing placement in areas without readily available AC power.
What mounting options are available for this access point?
The AP-677 offers versatile mounting options to suit various outdoor environments. It can be mounted on poles, walls, or ceilings using the included or compatible mounting hardware. This flexibility allows network administrators to position the unit for optimal wireless coverage—whether on a light pole in a parking lot, under an eave on a building exterior, or on a ceiling in a covered outdoor area.
What security features are included with this wireless access point?
Security features include support for WPA3, WPA2-MPSK, and WPA2 encryption standards to protect wireless communications. The access point also supports data encryption and advanced management capabilities for secure configuration and monitoring. These features help safeguard network traffic against unauthorized access and ensure compliance with enterprise security policies in outdoor deployments.
