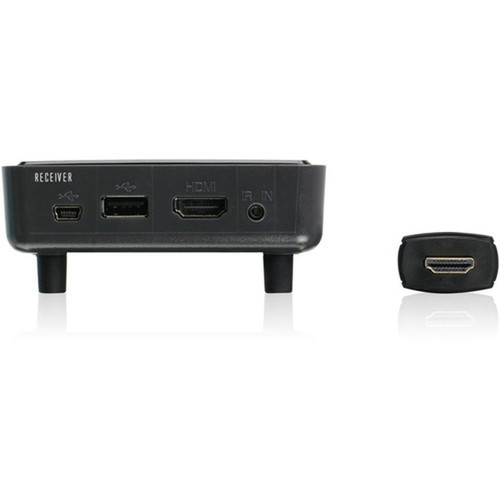

IOGEAR GWHD11 Wireless HDMI Transmitter and Receiver Kit - 1 Input/1 Output - 30 ft Range - Full HD 1080p
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GWHD11 operates on the 5 GHz band using WHDI™ technology to deliver lossless wireless HDMI transmission. It supports all common HD resolutions from 480p to 1080p, including 1080i, and maintains full 3D compatibility. The system handles uncompressed video to preserve image quality without introducing compression artifacts.
Each unit is powered via USB, with included power adapters ensuring stable operation. The transmitter connects to your HDMI source device, while the receiver outputs to your display. The kit supports one input device and one output device simultaneously, with expansion capability for additional transmitters using the GWHDSTXB accessory.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This wireless HDMI solution stands out for its combination of high performance, ease of use, and flexibility. The sub-1ms latency ensures responsive performance for gaming and interactive applications, while the uncompressed video transmission maintains broadcast-quality imagery.
Plug-and-Play Simplicity
No drivers or software installation required. Connect the HDMI cables and power adapters, and the system is ready to use immediately.
- No configuration needed
- Works with any HDMI source
- Automatic signal detection
Professional-Grade Performance
WHDI™ technology delivers studio-quality wireless transmission with support for all major HD formats and 3D content.
- Lossless video quality
- Supports 1080p60
- Low latency for gaming
Expandable System
Add up to three additional GWHDSTXB transmitters to create a multi-source wireless HDMI distribution system.
- Scalable setup
- Multiple source support
- Flexible room configuration
Deployment / Use Cases
The GWHD11 is ideal for environments where running HDMI cables is impractical or undesirable. In home theaters, it allows clean installations by eliminating visible cables between media components and displays. For gaming setups, the low latency ensures responsive gameplay without the constraints of wired connections.
Business and educational settings benefit from the kit's ability to connect laptops to projectors or displays in conference rooms and classrooms without cable tripping hazards. The system also works well for temporary installations, trade show displays, and events where quick setup and teardown are priorities.
Home Entertainment
Connect Blu-ray players, gaming consoles, and streaming devices to your TV without running cables across living spaces.
Professional Presentations
Wirelessly display laptop content on projectors or large displays in meeting rooms and classrooms.
What's in the Box
This complete kit includes everything needed for immediate wireless HDMI connectivity.
Highlights
- Wireless HDMI transmitter and receiver kit for cable-free AV distribution
- Transmits uncompressed Full HD 1080p video with 5.1 channel digital audio
- 30-foot operating range using WHDI™ technology with <1ms latency
- Supports 480p, 720p, 1080i, and 1080p resolutions with 3D compatibility
- Connect laptops, game consoles, Blu-ray players, and set-top boxes
- No software or driver installation required—plug and play operation
- Expandable system supports additional transmitters (Part# GWHDSTXB)
- Includes remote control, HDMI cable, power adapters, and complete accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GWHD11 |
| Brand Name | IOGEAR |
| Product Model | GWHD11 |
| Product Name | Wireless HDMI Transmitter and Receiver Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wireless |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 30 ft (9144 mm) |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Transmitter Height | 0.75" (19.05 mm) |
| Transmitter Width | 3.12" (79.25 mm) |
| Transmitter Depth | 1.12" (28.45 mm) |
| Receiver Height | 1.50" (38.10 mm) |
| Receiver Width | 3.75" (95.25 mm) |
| Receiver Depth | 3.75" (95.25 mm) |
| Transmitter Weight (Approximate) | 0.71 oz (20 g) |
| Receiver Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |

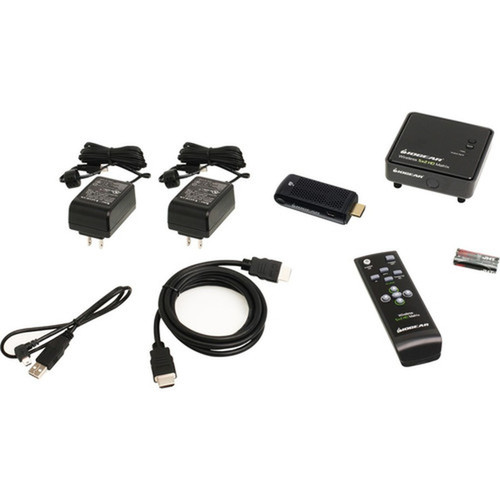

| Package Contents | 1 x Wireless HDMI Transmitter 1 x Wireless HDMI Receiver 1 x Mini USB to USB Cable 2 x USB Power Adapters 1 x Remote Control 2 x AAA Batteries 1 x HDMI Cable 1 x Quick Start Guide 1 x Warranty Card |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum wireless range of the GWHD11 kit?
The IOGEAR GWHD11 provides reliable wireless HDMI transmission up to 30 feet (approximately 9.1 meters) in typical indoor environments. This range allows flexible placement of source devices relative to displays without signal degradation, making it suitable for most living rooms, conference spaces, and classroom setups.
Does this wireless HDMI kit support 4K resolution?
No, the GWHD11 is designed for Full HD 1080p content with a maximum resolution of 1920 x 1080 pixels. It supports all standard HD formats including 480p, 720p, 1080i, and 1080p. For 4K wireless transmission, you would need a different product specifically rated for Ultra HD resolutions.
Can I use this kit for wireless gaming without lag?
Yes, the GWHD11 uses WHDI™ technology with latency under 1 millisecond, making it excellent for gaming applications. This minimal delay ensures responsive gameplay that feels virtually identical to a wired HDMI connection, supporting fast-paced games where timing is critical.
How many devices can I connect simultaneously?
The basic GWHD11 kit supports one HDMI input device (connected to the transmitter) and one HDMI output display (connected to the receiver) at a time. However, you can expand the system by adding up to three additional GWHDSTXB transmitters, allowing multiple source devices to share access to the same display.
What audio formats does this wireless HDMI system support?
The kit transmits 5.1 channel digital audio alongside video, supporting surround sound formats commonly used in home theater and gaming content. This includes Dolby Digital and DTS audio streams, providing immersive audio experiences when connected to compatible AV receivers or sound systems.
Is any software installation required for setup?
No software or driver installation is needed. The GWHD11 operates as a plug-and-play solution—simply connect the HDMI cables from your source device to the transmitter and from the receiver to your display, then connect the included USB power adapters. The system automatically establishes the wireless connection without configuration.
