Keyscan IOCB1616 Input/Output Expansion Board - 16-Channel I/O for Access Control - Alarm - CCTV - Compatible with CA4000/CA8000 Controllers
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IOCB1616 expansion board interfaces directly with Keyscan CA4000 and CA8000 series controllers, adding 16 discrete I/O channels to manage external devices. Each channel can be configured as an input for sensor monitoring or as an output for relay control, providing flexibility for diverse security applications.
The board supports integration with access control readers, door sensors, push buttons, alarm panels, CCTV cameras, and relay modules. This allows centralized management of door strikes, alarm triggers, camera events, and other security functions through the Keyscan controller interface.
This section brings together practical product details such as Device Supported, Height, Width, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The IOCB1616 expands system capabilities without requiring controller replacement, offering a cost-effective upgrade path for growing security installations. Its 16-channel design provides ample capacity for adding doors, sensors, cameras, and relays to existing Keyscan deployments.
Scalable I/O Capacity
Adds 16 configurable input/output channels to handle additional security devices, supporting expansion as facility needs evolve.
- Eliminates controller upgrade costs
- Maintains centralized management
- Reduces wiring complexity
Broad Device Compatibility
Interfaces with access control systems, sensors, push buttons, alarm systems, CCTV cameras, and relays for comprehensive security integration.
- Unified security platform
- Reduces equipment fragmentation
- Simplifies troubleshooting
Complete Deployment Package
Includes board, enclosure, and DPS-12 power supply in one ready-to-install unit, minimizing procurement and setup time.
- No additional power supply needed
- Standard enclosure fits existing racks
- Pre-tested compatibility
Deployment / Use Cases
The IOCB1616 is ideal for expanding Keyscan access control systems in commercial buildings, industrial facilities, parking structures, and multi-door installations. It enables centralized monitoring and control of additional security points without controller replacement.
Common deployment scenarios include adding door monitoring sensors in office buildings, integrating alarm system triggers in industrial plants, connecting CCTV camera inputs in parking facilities, and managing relay-controlled devices in commercial spaces. The board's 16-channel capacity supports mixed-device environments where different security components need unified management.
Commercial Building Expansion
Add door sensors, push buttons, and alarm triggers to new wings or floors while maintaining existing Keyscan controller infrastructure.
Industrial Security Integration
Connect CCTV cameras, relay-controlled gates, and sensor networks to a centralized Keyscan security management system.
Physical Profile

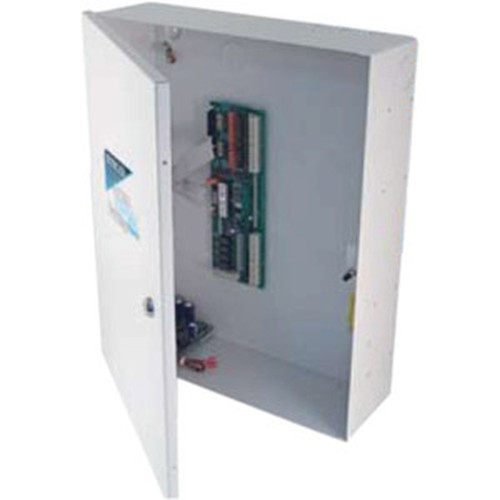

The IOCB1616 comes mounted in a standard Keyscan enclosure measuring 10.59 inches (269 mm) in height and 3.58 inches (91 mm) in width. This compact form factor fits neatly into existing equipment racks or security cabinets alongside Keyscan controllers and other system components.
The enclosure provides physical protection for the circuit board while maintaining accessibility for maintenance. The included DPS-12 power supply mounts within the same enclosure, creating a self-contained expansion unit that requires only connection to the controller and external devices.
- Width
- 3.58" (91 mm)
- Height
- 10.59" (269 mm)
What's in the Box
The IOCB1616 ships as a complete expansion kit ready for installation into Keyscan access control systems.
Highlights
- 16 configurable input/output channels for security device expansion
- Compatible with Keyscan CA4000 and CA8000 series controllers
- Supports access control systems, sensors, push buttons, alarm systems, CCTV cameras, and relays
- Includes DPS-12 power supply for immediate deployment
- Standard Keyscan enclosure for easy rack or cabinet mounting
- Dimensions: 10.59" H x 3.58" W (269 mm x 91 mm)
- Ideal for commercial, industrial, parking lot, and multi-door applications
- Pre-assembled unit reduces installation time and complexity
Specifications
| Specifications | |
|---|---|
| Manufacturer | dormakaba Holding |
| Manufacturer Part Number | IOCB1616 |
| Brand Name | Keyscan |
| Product Name | Input/Output Expansion Board |
| Product Type | Input/Output Expansion Board |
| Technical Information | |
| Device Supported | Access Control System,Sensor,Push Button,Alarm System,CCTV Camera,Relay |
| Physical Characteristics | |
| Height | 10.59" (269 mm) |
| Width | 3.58" (91 mm) |
| Miscellaneous | |
| Package Contents | Input/Output Expansion Board Standard Keyscan Enclosure Circuit Board DPS-12 Power Supply |
| Application/Usage | Room,Industrial,Commercial,Parking Lot,Door |
| Compatibility | Keyscan Controllers: CA4000 CA8000 |
FAQ
What controllers is the IOCB1616 expansion board compatible with?
The IOCB1616 is specifically designed to work with Keyscan CA4000 and CA8000 series access control controllers. It connects directly to these controllers to add 16 additional input/output channels for expanding security system capabilities without replacing the existing controller infrastructure.
What types of devices can I connect to the IOCB1616 expansion board?
The board supports a wide range of security devices including access control system components, door sensors, push buttons, alarm system triggers, CCTV camera inputs, and relay-controlled devices. This allows for comprehensive integration of additional security points into your existing Keyscan management platform.
Does the IOCB1616 include a power supply?
Yes, the IOCB1616 comes with a DPS-12 power supply included in the package. This means you receive a complete expansion unit ready for installation without needing to source a separate power supply, simplifying deployment and ensuring compatibility.
What are the physical dimensions of the IOCB1616 expansion board?
The IOCB1616 is housed in a standard Keyscan enclosure measuring 10.59 inches (269 mm) in height and 3.58 inches (91 mm) in width. This compact form factor allows it to fit neatly into equipment racks or security cabinets alongside your existing Keyscan controllers and system components.
How many I/O channels does the IOCB1616 provide?
The IOCB1616 provides 16 configurable input/output channels. These channels can be programmed as inputs for monitoring devices like sensors or as outputs for controlling devices like relays, offering flexibility to handle various security expansion needs within a single expansion unit.
What applications is the IOCB1616 best suited for?
The IOCB1616 is ideal for expanding Keyscan access control systems in commercial buildings, industrial facilities, parking structures, and multi-door installations. It enables centralized management of additional security points such as door monitoring, alarm integration, CCTV connections, and relay-controlled devices without requiring controller replacement.
