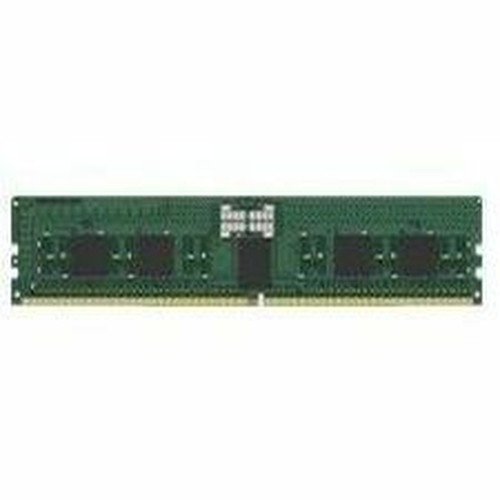

Kingston 16GB 1Rx8 2G x 80-Bit PC5-4800 CL40 Registered EC8 288-Pin DIMM - For Server - 16 GB (1 x 16GB) - DDR5-4800/PC5-38400 DDR5 - (KSM48R40BS8-16MD)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Memory Size: 16 GB
Memory Technology: DDR5 SDRAM
Memory Voltage: 1.10 V
Number of Modules: 1 x 16GB
Memory Speed: 4800 MHz
Memory Data Transfer Rate: 4.80 GT/s
Memory Standard: DDR5-4800/PC5-38400
Memory Rank: Single-rank
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL40
Device Supported: Server
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 68.90 mil (1.75 mm)
Width: 1.23" (31.25 mm)
Length: 5.25" (133.35 mm)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
[custom-specifications]
| Specifications | |
| Manufacturer | Kingston Technology Company |
| Manufacturer Part Number | KSM48R40BS8-16MD |
| Manufacturer Website Address | http://www.kingston.com |
| Brand Name | Kingston |
| Product Line | Server Premier |
| Product Name | 16GB 1Rx8 2G x 80-Bit PC5-4800 CL40 Registered EC8 288-Pin DIMM |
| Product Type | RAM Module |
| Technical Information | |
| Memory Size | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Voltage | 1.10 V |
| Number of Modules | 1 x 16GB |
| Memory Speed | 4800 MHz |
| Memory Data Transfer Rate | 4.80 GT/s |
| Memory Standard | DDR5-4800/PC5-38400 |
| Memory Rank | Single-rank |
| Error Checking | ECC |
| Signal Processing | Registered |
| CAS Latency | CL40 |
| Device Supported | Server |
| Physical Characteristics | |
| Number of Pins | 288-pin |
| Form Factor | DIMM |
| Thickness | 68.90 mil (1.75 mm) |
| Width | 1.23" (31.25 mm) |
| Length | 5.25" (133.35 mm) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
| Qty | Price | Available |
|---|
