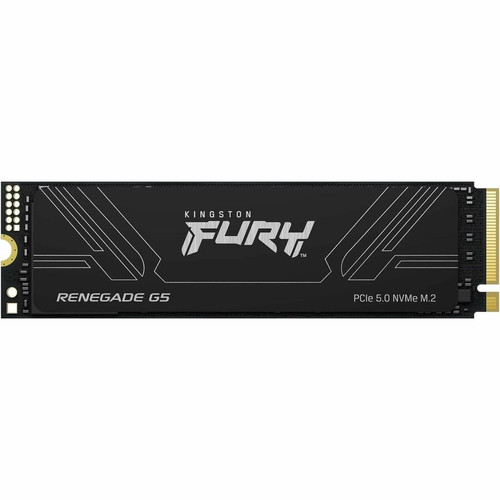

Kingston SFYR2S/2T0 FURY Renegade G5 2TB M. 2 2280 NVMe PCIe 5.0 x 4 SSD - 14.36GB/s Read - 13.67GB/s Write
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Kingston FURY Renegade G5 SSD implements a PCI Express NVMe 5.0 x4 interface that doubles the bandwidth of previous PCIe 4.0 solutions, enabling the drive to reach its maximum sequential performance of 14.36 GB/s read and 13.67 GB/s write. This interface operates at 32 GT/s per lane, providing the necessary throughput for next-generation storage applications while maintaining backward compatibility with PCIe 4.0 and 3.0 systems at reduced speeds.
The M.2 2280 form factor measures 22 mm wide by 80 mm long with a 2.30 mm profile, making it compatible with most modern desktop motherboards and notebook M.2 slots. The drive's 2 TB capacity is managed through advanced NAND flash technology and a dedicated controller optimized for PCIe 5.0 signaling. Thermal management features help maintain consistent performance during extended operation, while the 2048 TBW endurance rating indicates suitability for write-intensive workloads.
Key Product Advantages
The Kingston FURY Renegade G5 SSD delivers several distinct advantages for users seeking maximum storage performance. Its PCIe 5.0 x4 interface provides future-proof bandwidth that exceeds current application requirements while ensuring compatibility with emerging high-speed storage standards. The combination of exceptional sequential throughput and high random IOPS makes this drive equally effective for large file transfers and small-block operations.
Performance Leadership
With 14.36 GB/s read and 13.67 GB/s write speeds, this SSD ranks among the fastest consumer storage solutions available, reducing load times for applications, games, and media files.
- PCIe 5.0 x4 interface bandwidth
- Optimized for sequential and random workloads
- Low latency data access
Endurance and Reliability
The 2048 TBW rating and 228.2-year MTBF demonstrate Kingston's commitment to product longevity, making this drive suitable for systems that undergo frequent write cycles.
- High endurance for write-intensive use
- Extended product lifespan
- Consistent performance over time
Universal Compatibility
The M.2 2280 form factor and PCIe NVMe interface ensure broad compatibility with modern desktop and notebook systems, while backward compatibility maintains functionality in older PCIe 4.0/3.0 slots.
- Standard M.2 2280 dimensions
- Desktop and notebook support
- Backward compatible with PCIe 4.0/3.0
Deployment / Use Cases
The Kingston FURY Renegade G5 2TB SSD is engineered for performance-sensitive computing environments where storage speed directly impacts productivity and user experience. Its exceptional throughput makes it ideal as a primary boot drive in high-end gaming systems, reducing game load times and level transitions while providing ample capacity for game libraries and system files.
Professional workstations benefit from the drive's combination of capacity and performance when handling large media files, complex 3D models, or scientific datasets. Video editors can experience smoother timeline scrubbing and faster render exports, while data analysts can process large datasets more efficiently. The drive's endurance rating supports frequent write operations common in content creation workflows and development environments.
High-Performance Gaming
Accelerates game loading, level transitions, and asset streaming while providing ample storage for extensive game libraries and mods.
- Reduces in-game loading screens
- Supports large game installations
- Enhances open-world game performance
Professional Content Creation
Handles large video files, high-resolution images, and complex project files with minimal latency, improving workflow efficiency for editors and designers.
- Faster media file transfers
- Smoother timeline performance
- Quick project file access
Physical Profile
The Kingston FURY Renegade G5 SSD utilizes the industry-standard M.2 2280 form factor measuring 22 mm wide by 80 mm long with a slim 2.30 mm height profile. This compact design allows installation in most modern desktop motherboards and notebook M.2 slots without requiring additional drive bays or cabling. The drive weighs approximately 7.70 grams, making it suitable for mobile systems where component weight matters. The single-sided component layout maximizes compatibility with systems that have height restrictions above the M.2 slot.
- Width
- 0.87" (22 mm)
- Depth
- 3.15" (80 mm)
- Height
- 90.55 mil (2.30 mm)
- Weight
- 0.27 oz (7.70 g)
Highlights
- 2 TB storage capacity for extensive file collections and applications
- PCI Express NVMe 5.0 x4 interface delivers maximum bandwidth
- Sequential read speeds up to 14.36 GB/s for rapid data access
- Sequential write speeds up to 13.67 GB/s for fast file transfers
- M.2 2280 form factor compatible with modern desktops and notebooks
- 2048 TBW endurance rating supports write-intensive workloads
- 228.2-year MTBF demonstrates exceptional reliability
- 2.2 million IOPS random 4KB performance for responsive system operation
- Backward compatible with PCIe 4.0 and 3.0 systems
- Internal drive design requires no external power or data cables
Specifications
| Specifications | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Manufacturer Part Number | SFYR2S/2T0 |
| Brand Name | Kingston |
| Product Line | FURY Renegade G5 |
| Product Name | FURY Renegade G5 Solid State Drive |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Drive Performance | |
| Random 4KB Read | 2200000IOPS |
| Random 4KB Write | 2200000IOPS |
| Endurance (TBW) | 2048 TB |
| Maximum Sequential Read | 14.36 GB/s |
| Maximum Sequential Write | 13.67 GB/s |
| Mean Time Between Failures (MTBF) | 228.2 Year |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Height | 90.55 mil (2.30 mm) |
| Width | 0.87" (22 mm) |
| Depth | 3.15" (80 mm) |
| Weight (Approximate) | 0.27 oz (7.70 g) |
| Miscellaneous | |
| Device Supported | Desktop PC,Notebook |
User Manual
FAQ
What systems are compatible with this Kingston FURY Renegade G5 SSD?
The Kingston FURY Renegade G5 SSD is compatible with desktop PCs and notebooks that have an M.2 slot supporting the PCIe NVMe interface. The drive requires a motherboard or system with a PCIe 5.0, 4.0, or 3.0 M.2 slot to operate, though maximum performance is achieved with PCIe 5.0 x4 connectivity. The M.2 2280 form factor fits standard M.2 mounting points found in most modern systems.
How does the PCIe 5.0 interface benefit SSD performance?
PCI Express 5.0 provides double the bandwidth per lane compared to PCIe 4.0, with 32 GT/s versus 16 GT/s. This increased bandwidth allows the Kingston FURY Renegade G5 SSD to achieve sequential read speeds up to 14.36 GB/s and write speeds up to 13.67 GB/s. The PCIe 5.0 x4 configuration offers maximum throughput for data-intensive applications while maintaining backward compatibility with PCIe 4.0 and 3.0 systems at reduced speeds.
What does the 2048 TBW endurance rating mean for this SSD?
The 2048 TBW (Terabytes Written) endurance rating indicates the total amount of data that can be written to the Kingston FURY Renegade G5 SSD over its lifespan before potential wear-out. This rating represents 2048 terabytes of cumulative writes, which translates to approximately 560 GB of writes per day for 10 years. The high endurance makes this drive suitable for write-intensive workloads including content creation, database operations, and frequent file transfers.
Can this SSD be used as a boot drive for my operating system?
Yes, the Kingston FURY Renegade G5 SSD is an excellent choice as a primary boot drive. Its high sequential and random performance significantly reduces operating system boot times and application launch speeds. The 2 TB capacity provides ample space for the operating system, applications, and frequently accessed files. The drive's reliability with 228.2-year MTBF ensures consistent performance for system-critical operations over extended periods.
What cooling considerations are needed for this high-performance SSD?
The Kingston FURY Renegade G5 SSD may benefit from thermal management during sustained heavy workloads due to its high-performance PCIe 5.0 interface. Many modern motherboards include M.2 heatsinks or thermal pads to dissipate heat. For systems without integrated cooling, aftermarket M.2 heatsinks can help maintain optimal performance. Proper system airflow and case ventilation also contribute to consistent SSD operation during extended use.
How does the M.2 2280 form factor affect installation and compatibility?
The M.2 2280 form factor measures 22 mm wide by 80 mm long, which is the most common M.2 size for consumer systems. This standardized dimension ensures compatibility with the majority of desktop motherboards and notebook M.2 slots. Installation requires securing the drive with a single screw at the 80 mm mounting point. The 2.30 mm height profile allows installation in systems with limited clearance above the M.2 slot, including many notebook designs.
