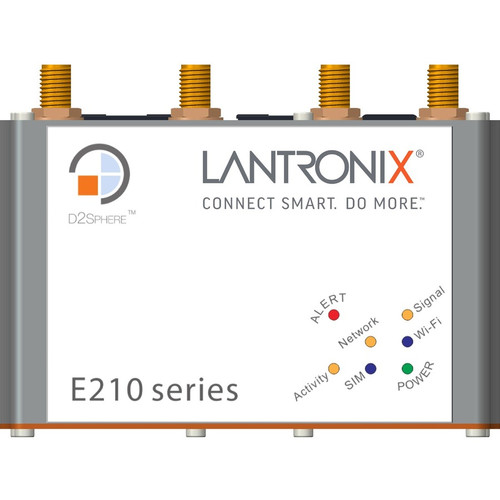

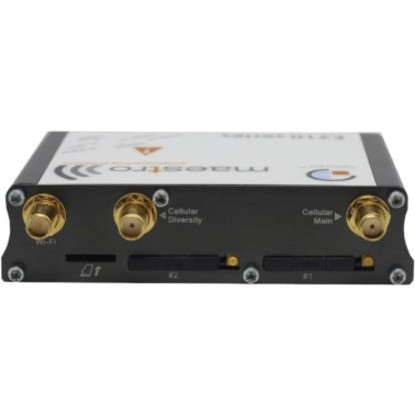

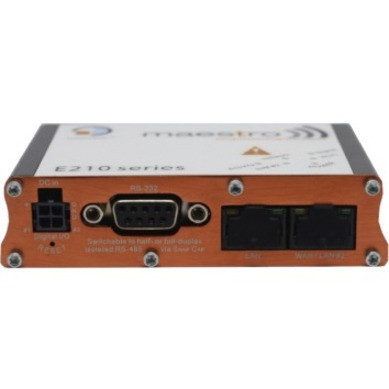

Lantronix E214F002S E214 2-SIM Cellular Modem/Wireless Router - 4G LTE - Fast Ethernet - VPN - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The E214 operates on 4G LTE cellular networks, delivering broadband connectivity through cellular data transmission technology. It features one network RJ-45 port and one broadband RJ-45 port, both supporting Fast Ethernet standards for wired network integration. VPN functionality enables secure remote access and site-to-site connections.
Multi-SIM support accommodates two Mini SIM cards simultaneously, providing carrier flexibility and backup connectivity options. The device's compact footprint measures 3.64 inches wide by 2.25 inches deep by 0.89 inches high, with a lightweight design at just 5.29 ounces.
This section brings together practical product details such as Broadband Transmission Technology, Cellular Generation, Cellular Data Connectivity Technology, Number of Network (RJ-45) Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The E214 combines cellular and Ethernet connectivity in a single industrial-grade device, eliminating the need for separate modems and routers in remote installations. Its dual-SIM architecture provides automatic failover between cellular carriers, maintaining network availability during provider outages or maintenance windows.
Industrial Durability
Designed for DIN rail mounting in industrial environments, the compact form factor withstands vibration and fits standard control panel configurations.
Flexible Connectivity
Simultaneous cellular and Ethernet broadband options allow deployment in locations with limited wired infrastructure while maintaining local network connections.
Network Security
Built-in VPN support establishes encrypted tunnels for secure data transmission between remote sites and central networks.
Deployment / Use Cases
The Lantronix E214 serves as a primary or backup internet gateway for industrial automation systems, remote monitoring stations, and temporary network installations. Its cellular connectivity makes it ideal for construction sites, agricultural operations, transportation hubs, and utility substations where traditional broadband may be impractical or unavailable.
In retail environments, the device can provide failover internet connectivity for point-of-sale systems during primary network outages. For security applications, it enables remote camera and access control system connectivity without requiring extensive wired infrastructure. The DIN rail mounting simplifies integration into existing industrial control panels and equipment racks.
Industrial IoT Connectivity
Connect PLCs, sensors, and monitoring equipment in remote locations using cellular networks as the primary or backup communication path.
Temporary Network Deployments
Quickly establish secure network connectivity at construction sites, event venues, or disaster recovery locations without waiting for wired service installation.
Physical Profile
The E214 features a compact industrial design optimized for DIN rail mounting in standard equipment enclosures. Measuring 3.64 inches wide, 2.25 inches deep, and 0.89 inches high, the device occupies minimal space while providing robust connectivity options. The lightweight construction at 5.29 ounces simplifies installation and reduces stress on mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.89" (22.50 mm), 3.64" (92.50 mm), 2.25" (57.20 mm), 5.29 oz (150 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.64" (92.50 mm)
- Depth
- 2.25" (57.20 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 5.29 oz (150 g)
Highlights
- 4G LTE cellular connectivity for broadband internet access
- Dual Mini SIM card support with automatic failover capability
- Fast Ethernet ports (1 network, 1 broadband) for wired connectivity
- VPN support for secure remote access and site-to-site connections
- DIN rail mountable form factor for industrial installations
- Compact dimensions: 3.64" W × 2.25" D × 0.89" H
- Lightweight design at just 5.29 ounces (150 grams)
- Simultaneous cellular and Ethernet broadband transmission
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E214F002S |
| Brand Name | Lantronix |
| Product Series | E210 |
| Product Model | E214 |
| Product Name | E214 Modem/Wireless Router |
| Packaged Quantity | 1 |
| Product Type | Modem/Wireless Router |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular,Ethernet |
| Cellular Generation | 4G |
| Cellular Data Connectivity Technology | LTE |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 0.89" (22.50 mm) |
| Width | 3.64" (92.50 mm) |
| Depth | 2.25" (57.20 mm) |
| Weight (Approximate) | 5.29 oz (150 g) |
FAQ
What cellular networks does the Lantronix E214 support?
The E214 supports 4G LTE cellular networks for broadband data connectivity. It operates on standard cellular frequencies used by major carriers, providing high-speed internet access through cellular data transmission technology. The device requires compatible SIM cards from cellular service providers to establish connections.
How many SIM cards can the E214 accommodate?
The E214 supports two Mini SIM cards simultaneously. This dual-SIM capability enables network redundancy and automatic failover between different cellular carriers. If one SIM card's network experiences service interruption, the device can automatically switch to the secondary SIM to maintain continuous connectivity.
What Ethernet speeds does this modem/router support?
The E214 features Fast Ethernet technology, supporting wired network speeds up to 100 Mb/sec. It includes one network RJ-45 port for connecting to local area networks and one broadband RJ-45 port for connecting to internet sources or additional network equipment. Both ports utilize standard Ethernet cabling and protocols.
Does the E214 support VPN connections?
Yes, the E214 includes VPN support for establishing secure encrypted connections between networks or remote access points. This functionality enables secure site-to-site tunneling and remote management capabilities. VPN configuration allows network administrators to maintain data security when transmitting information over public cellular or internet networks.
How is the E214 mounted in industrial environments?
The E214 is designed for DIN rail mounting, making it compatible with standard industrial control panels and equipment racks. The compact form factor measures 3.64 inches wide, 2.25 inches deep, and 0.89 inches high, allowing installation in space-constrained environments. DIN rail mounting hardware typically secures the device without requiring additional brackets or modifications.
What are the primary applications for this cellular modem/router?
The E214 is ideal for industrial IoT deployments, remote monitoring stations, temporary network installations, and locations with limited wired infrastructure. Common applications include connecting PLCs and sensors in manufacturing facilities, providing internet access at construction sites, enabling connectivity for security cameras in remote areas, and serving as backup internet for retail point-of-sale systems during network outages.
What throughput, switching capacity, or performance detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What uplink, SFP, fiber, or media support detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
