Lenovo 11AM001XUS ThinkCentre M90n-1 Nano Desktop - Intel Core i3-8145UE - 8GB RAM - 256GB NVMe SSD - Windows 10 IoT Enterprise - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkCentre M90n-1 is an 8th Generation Intel Core i3-8145UE processor. This dual-core, four-thread CPU operates at a base frequency of 2.20 GHz with Intel Turbo Boost technology pushing performance up to 3.90 GHz when needed. The processor is paired with 8GB of DDR4 memory running at 2666 MHz, providing sufficient bandwidth for office productivity, web applications, and light multitasking.
Storage is handled by a 256GB PCI Express NVMe 3.0 x4 solid-state drive in the M.2 form factor. This interface delivers significantly faster read and write speeds compared to traditional SATA SSDs, reducing boot times and application load delays. Graphics are powered by Intel UHD Graphics 620, which shares system memory to handle basic display output, video playback, and lightweight graphical tasks without a discrete GPU.
Key Product Advantages
The ThinkCentre M90n-1 combines compact design with practical business features. Its Nano form factor allows installation in locations where traditional desktops cannot fit, while still providing full desktop functionality and connectivity.
Space-Efficient Design
With dimensions of just 1.36" x 7.05" x 3.46", this desktop occupies minimal desk or mounting space, making it ideal for kiosks, digital signage, and crowded workstations.
- Nano form factor
- 1.59 lb weight
- VESA mount compatible
Modern Connectivity

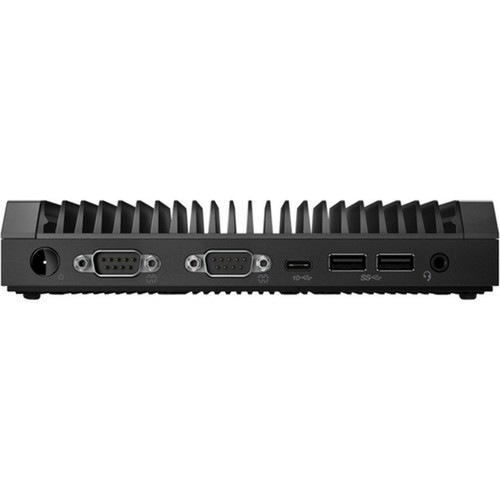

Five USB ports include three USB 3.2 Gen 2 connections, with front and rear USB-C ports that support display output and power delivery up to 45W.
- Dual USB-C ports
- Gigabit Ethernet
- 802.11ac WiFi
Enterprise Management
Windows 10 IoT Enterprise 2019 LTSC provides a stable, long-term platform with security updates and management tools for controlled environments.
- Long-term service channel
- Enterprise security features
- English OS localization
Deployment / Use Cases
The ThinkCentre M90n-1 is engineered for environments where space is at a premium but full desktop functionality is required. Its compact size and low power consumption make it suitable for 24/7 operation in retail, hospitality, and office settings.
In retail environments, the M90n-1 can power point-of-sale terminals, digital menu boards, or inventory management stations while occupying minimal counter space. For office deployments, it serves as a space-saving workstation for administrative staff, receptionists, or in shared workspaces. The system also functions well in digital signage applications, where its small footprint allows discreet mounting behind displays or in tight enclosures.
Retail & Hospitality
Power POS systems, digital menus, or reservation terminals with a desktop that fits under counters or on narrow shelves.
Office & Administrative
Provide full desktop computing for reception areas, shared workstations, or compact cubicles without sacrificing performance.
Localization and Operating System
This ThinkCentre M90n-1 ships with Windows 10 IoT Enterprise 2019 LTSC pre-installed in English. The Long-Term Servicing Channel version provides a stable operating system with security updates for ten years, making it suitable for fixed-function devices that require minimal changes over time.
Keyboard localization is configured for English (US) layouts, with the included USB traditional keyboard matching this configuration. The operating system language cannot be changed without a clean installation, so organizations should verify that English meets their requirements before deployment.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

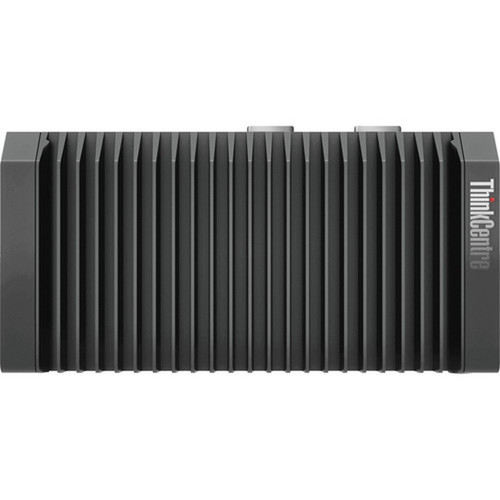

The Nano form factor measures 1.36 inches in height, 7.05 inches in width, and 3.46 inches in depth—approximately the size of a small hardcover book. Weighing just 1.59 pounds, the chassis is constructed from black materials that resist fingerprints and maintain a professional appearance. The compact dimensions enable placement in tight spaces, behind monitors, or mounted vertically with optional brackets. A security slot allows cable locking to prevent theft in public or shared environments.
- Width
- 7.05" (179 mm)
- Depth
- 3.46" (88 mm)
- Height
- 1.36" (34.50 mm)
- Weight
- 1.59 lb (720 g)
What's in the Box
Each ThinkCentre M90n-1 desktop system includes all necessary components for immediate deployment.
Highlights
- Intel Core i3-8145UE processor with 2.20 GHz base speed and 3.90 GHz turbo boost
- 8 GB DDR4 memory at 2666 MHz for responsive multitasking
- 256 GB PCI Express NVMe SSD for fast boot and application loading
- Compact Nano form factor (1.36" H) for space-constrained deployments
- Windows 10 IoT Enterprise 2019 LTSC for long-term stability
- Dual USB-C ports with display and power delivery support
- Gigabit Ethernet and 802.11ac WiFi for flexible connectivity
- Black chassis with security slot for theft prevention
- Energy Star 8.0 and EPEAT Silver certified for energy efficiency
- 3-year onsite warranty for business peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 11AM001XUS |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90n-1 |
| Product Model | 11AM001XUS |
| Product Name | ThinkCentre M90n-1 11AM001XUS Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Generation | 8th Gen |
| Processor Model | i3-8145UE |
| Processor Core | Dual-core (2 Core) |
| Processor Threads | 4 |
| Processor Speed | 2.20 GHz |
| Maximum Turbo Speed | 3.90 GHz |
| vPro Technology | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed | 2666 MHz |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 3.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 620 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8111K + RTL8111H |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| USB Type-C Detail | 1x USB-C® 3.2 Gen 2(front),1x USB-C® 3.2 Gen 2 (support display function and power-in [20V and >45W])(rear) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Nano |
| Height | 1.36" (34.50 mm) |
| Width | 7.05" (179 mm) |
| Depth | 3.46" (88 mm) |
| Weight (Approximate) | 1.59 lb (720 g) |
| Miscellaneous | |

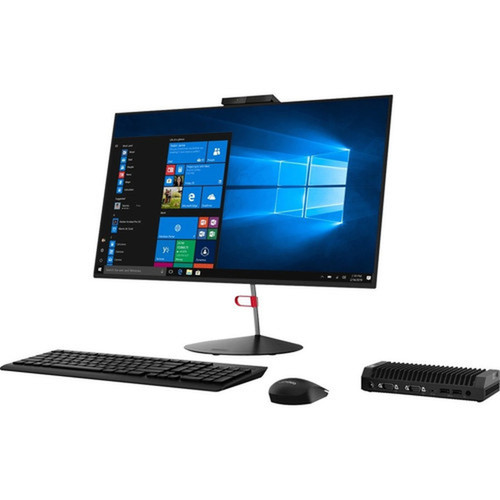

| Package Contents | ThinkCentre M90n-1 11AM001XUS Desktop Computer USB Traditional Keyboard USB Calliope Mouse 65W Adapter |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver),TCO Certified 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does the Lenovo ThinkCentre M90n-1 use?
The ThinkCentre M90n-1 is equipped with an Intel Core i3-8145UE processor from the 8th Generation. This dual-core, four-thread CPU operates at a base frequency of 2.20 GHz and can reach up to 3.90 GHz with Intel Turbo Boost technology. It provides sufficient performance for business applications, web browsing, and light multitasking in compact desktop deployments.
How much memory and storage does this desktop include?
This configuration includes 8 GB of DDR4 memory running at 2666 MHz and a 256 GB PCI Express NVMe solid-state drive. The NVMe interface delivers faster data transfer speeds compared to SATA SSDs, resulting in quicker system boot times and application launches. The memory capacity supports efficient multitasking for office productivity software and business applications.
What operating system is pre-installed on the ThinkCentre M90n-1?
The desktop comes with Windows 10 IoT Enterprise 2019 LTSC (Long-Term Servicing Channel) pre-installed in English. This version is designed for fixed-purpose devices and receives security updates for ten years without major feature changes, making it ideal for kiosks, digital signage, and dedicated business systems where stability is paramount.
What connectivity options are available on this Nano desktop?
The ThinkCentre M90n-1 offers comprehensive connectivity with five USB ports total, including three USB 3.2 Gen 2 ports. It features both front and rear USB-C ports that support display output and power delivery up to 45W. Network options include Gigabit Ethernet via the RTL8111K + RTL8111H controller, IEEE 802.11ac wireless networking, and Bluetooth for peripheral connections.
How compact is the Nano form factor, and where can it be deployed?
The Nano form factor measures just 1.36 inches tall, 7.05 inches wide, and 3.46 inches deep, weighing approximately 1.59 pounds. This extremely compact size makes it suitable for space-constrained environments such as retail counters, reception desks, conference rooms, or mounted behind displays for digital signage applications. The small footprint allows deployment where traditional desktops would not fit.
What warranty and certifications come with this ThinkCentre desktop?
Lenovo provides a 3-year onsite warranty for this ThinkCentre M90n-1, covering parts and labor with technician dispatch to your location. The system is Energy Star 8.0 certified for energy efficiency and carries EPEAT Silver environmental certification. It also complies with RoHS, REACH, and WEEE directives for reduced environmental impact throughout its lifecycle.
